3.9.2) Oil pressure sensor

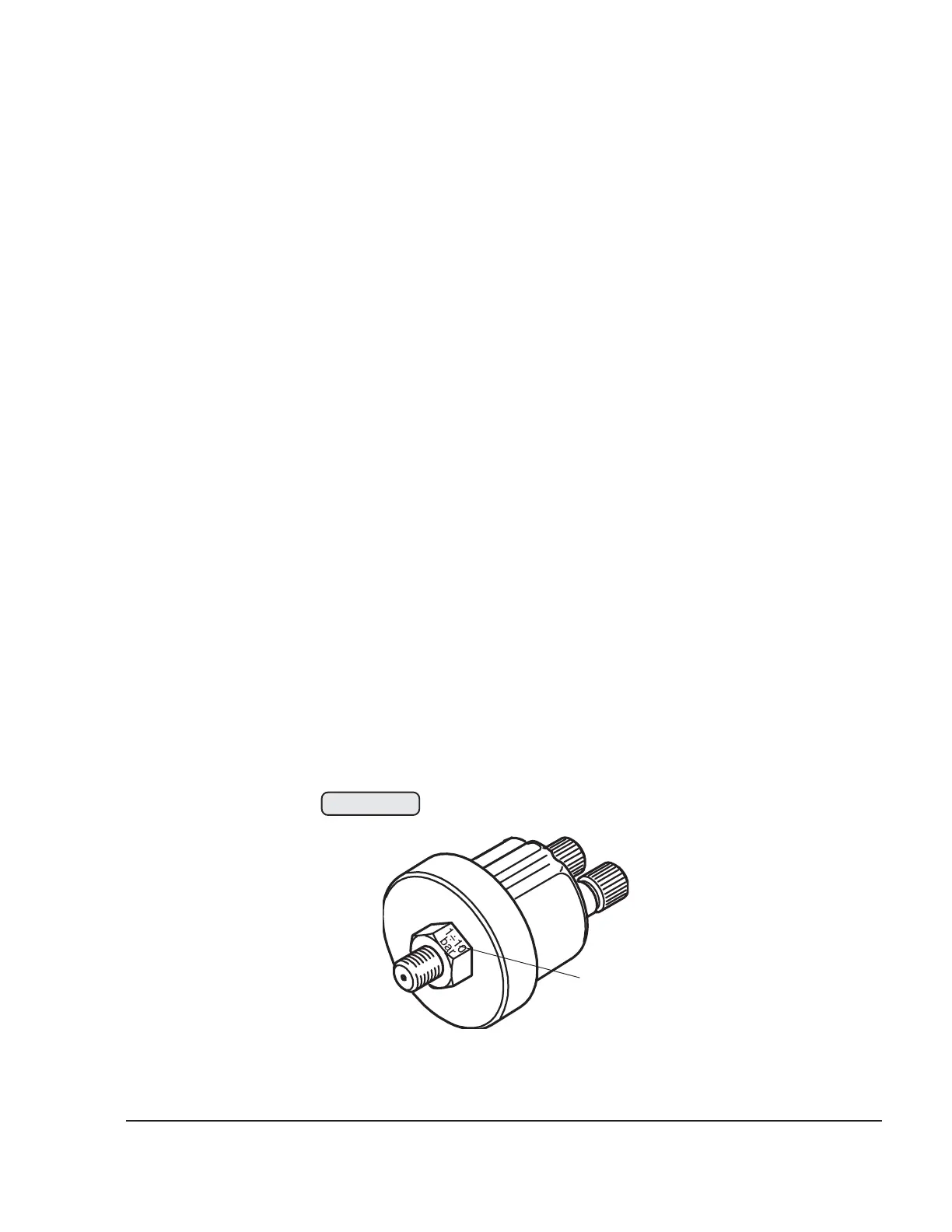

See Figs. 79-19, 79-20 and 79-21.
The sensor (2) for measurement of the oil pressure is screwed into the
oil pump housing.
The range of the sensor is from 0 to 10 bar (0 to 145 p.s.i) This range
(3) is indicated on the wrench flats of the sensor.
■ CAUTION: For this reason, the pressure range of the display
instrument must be adjusted to the pressure range of
the sensor. If this is not done, an incorrect oil pressure
will be displayed.
The operating pressure must remain within the specified limits. If this
is not the case, check
- the lubrication system (see corresponding Maintenance Manual
(Line Maintenance) for the respective engine type, 912 Series or
914 Series.)
- oil pressure sensor
- indicating instrument
- wiring connections
- sensor cable
◆ NOTE: Grounding connection of the sensor is direct via
the oil pump housing.
07226
3
Fig. 79-20

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
