Rotax 914 series Maintenance Manual

79-00-00
page 28
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02628
BRP-Rotax
Maintenance Manual
Fig. 79-21
200
(
Ω)
(bar)
150
100
50
0
108642
00229

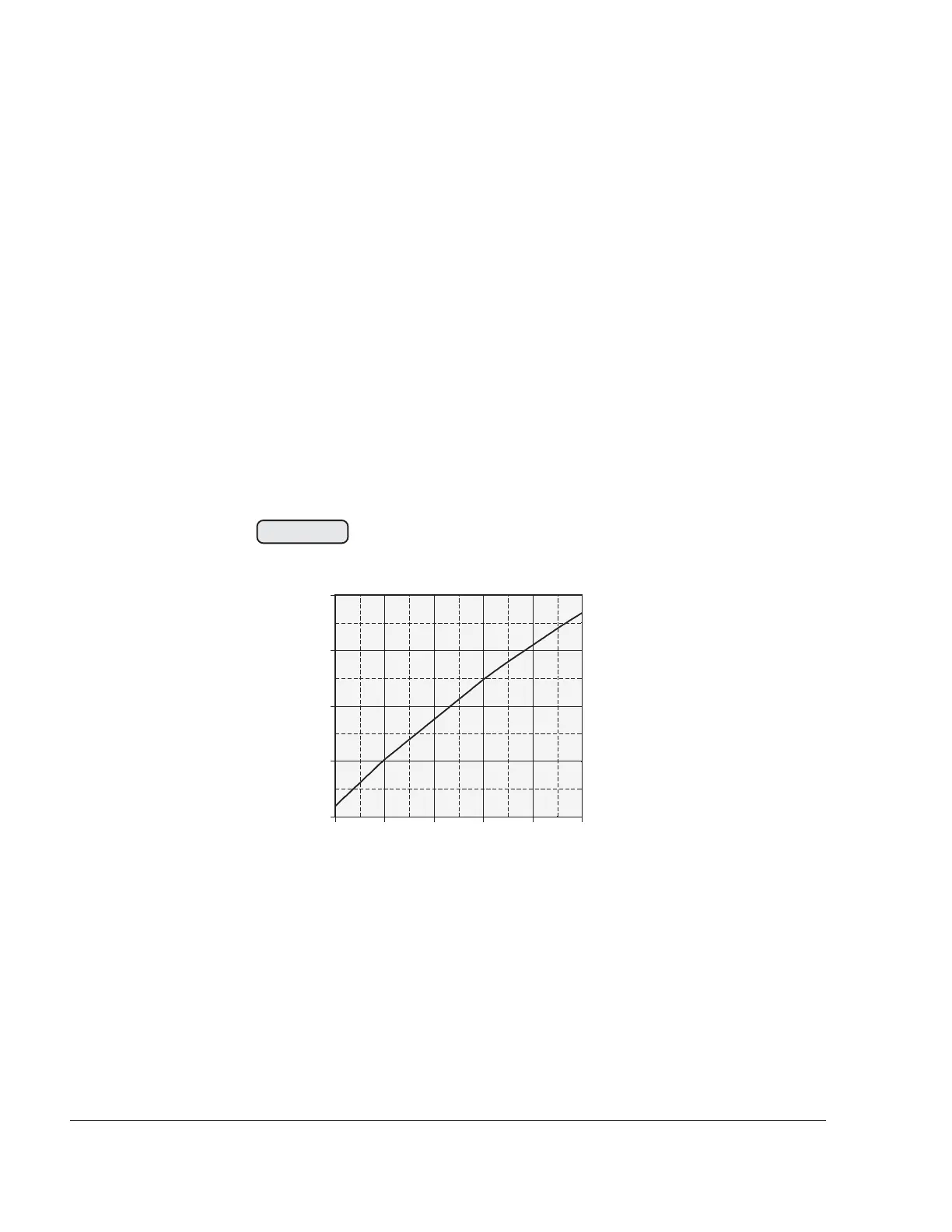

For sensor resistance see following graph showing sensor resistance
over pressure. Compare pressure gauge with a calibrated instrument.
■ CAUTION: The graph resistance over pressure has been deter-
mined, and is effective at the following conditions only.
ambient temperature: 20 °C (68 °F)
voltage: 12 V
deviation: max ± 5%
After removal of oil pressure sensor, clean the thread. Apply LOCTITE
243 to thread of sensor and tighten to 15 Nm (133 in.lb).
Fit sensor. See 79-00-00 sec. 3.1.5..

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
