Effectivity 912/914 Series
Edition 1 / Rev. 0
78-00-00
page 19
May 01/2007
d02627
BRP-Rotax
Maintenance Manual

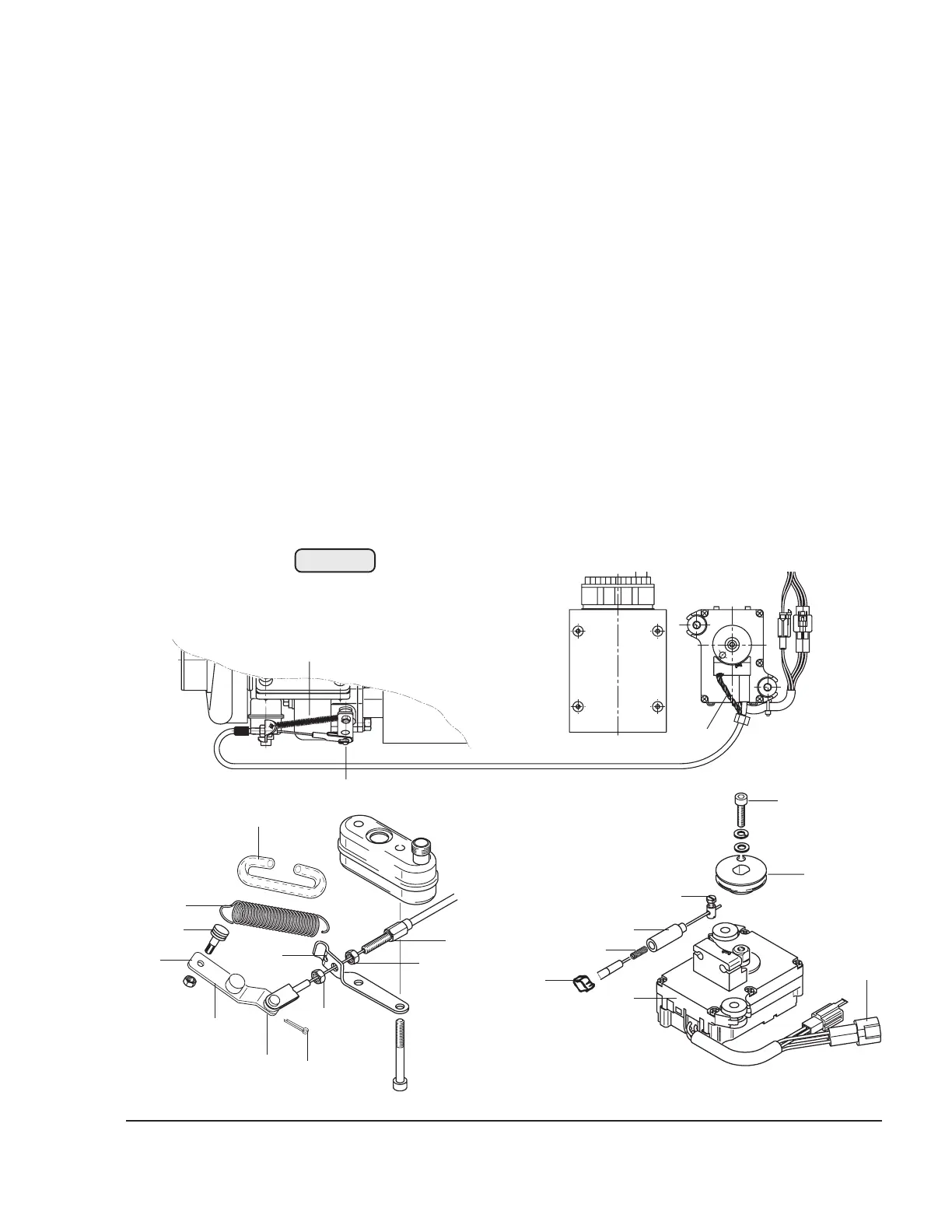

3.6) Bowden cable, rope sheave and spring for wastegate control (on the
914 Series)
See Fig. 78-9
3.6.1) Disassembly
Remove tension spring (1) with a suitable tool and cut wire (2) of the
Bowden cable.
Loosen set screw of nipple (3) and pull Bowden cable out of the cable
retainer (4).
Do not lose the pressure spring (5) 5.5/1.2/16.9. Remove spring and
store in a safe place.
Remove cotter pin (6) and pin (7) from wastegate lever (8).
Now the Bowden cable can be pulled out from the conduit.
If required, remove rope sheave (9) after removal of the allen screw
(10) M5 x 20 along with lock washer and washer.
02618
7
Fig. 78-9
16
17
18
13
15
11
12
6
7
8
9
10
1
2
3
4
5
1
6
15
14
11
