71-00-00
page 8
May 01/2007
Effectivity 914 Series
Edition 1 / Rev. 0
d02621
BRP-Rotax
Maintenance Manual
+z
-z
+x
-x
P
+z1
-x1
+x1
-z1
A
(1) Engine number
(2) Propeller flange
(3) Propeller gearbox
(4) Vacuum pump or hydraulically controlled
constant speed propeller governor
(5) Intake manifold
(6) Ignition housing
(7) Ignition cover
(8) Constant depression carburetor
(9) Airbox
(10) Engine suspension frame
(11) Stainless steel exhaust system
(12) Turbocharger
(13) Electronic turbo control unit (TCU)
(14) Fuel pressure regulator
(15) Servo motor
(16) Bowden cable
(
17) Wiring harness
(18) Coolant pump
(19) Expansion tank
(20) 2 separate oil pumps
(21) Connection for oil return line (engine)
(22) Connection for oil return line (turbo)
(23) Oil filter
(24) Electric starter
(25) Electronic module
(26) Compensation tube
(27) Connection for boost pressure display
(28) Oil pressure sensor
(
29) Oil temperature sensor
(30) 2x sensor for cylinder head temperature
(31) 2x pressure sensor
(32) Connection for mechanical rev counter
(33) Connection for additional temperature
sensor (Airbox)
(34) Drip tray
(35) Condensation water trap
(only on older engine versions)
(36) Solenoid valve
(37) 2x electric fuel pump
(38) Oil tank
(
39) External alternator
(40) Magnetic plug
(41) Connection for additional
temperature sensor
914 Series
MSAS
00120

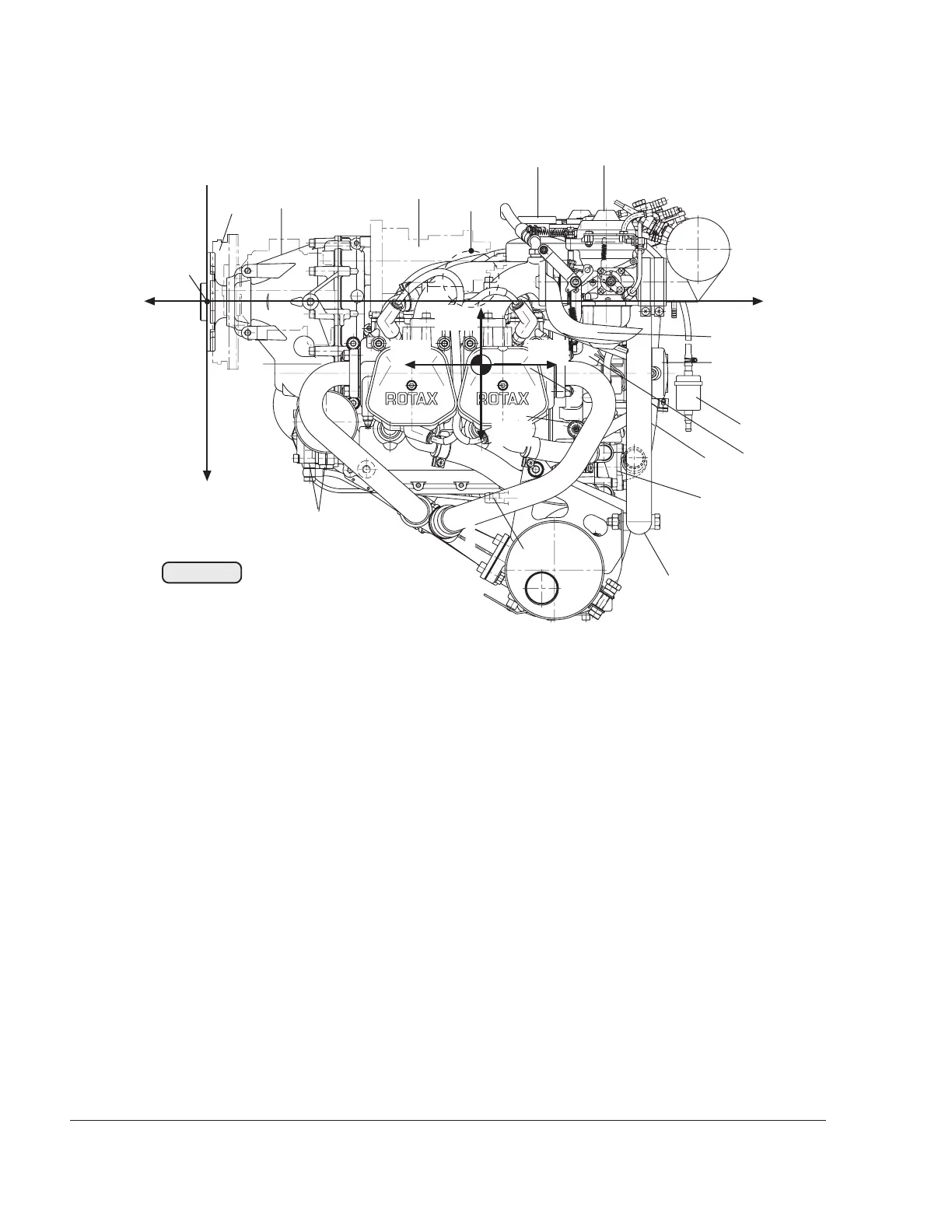

Fig. 71-5
2
40
18
1819
24
10
2
3
4
6
7
35
21
20
32
34
Side view Cyl. 2-4
