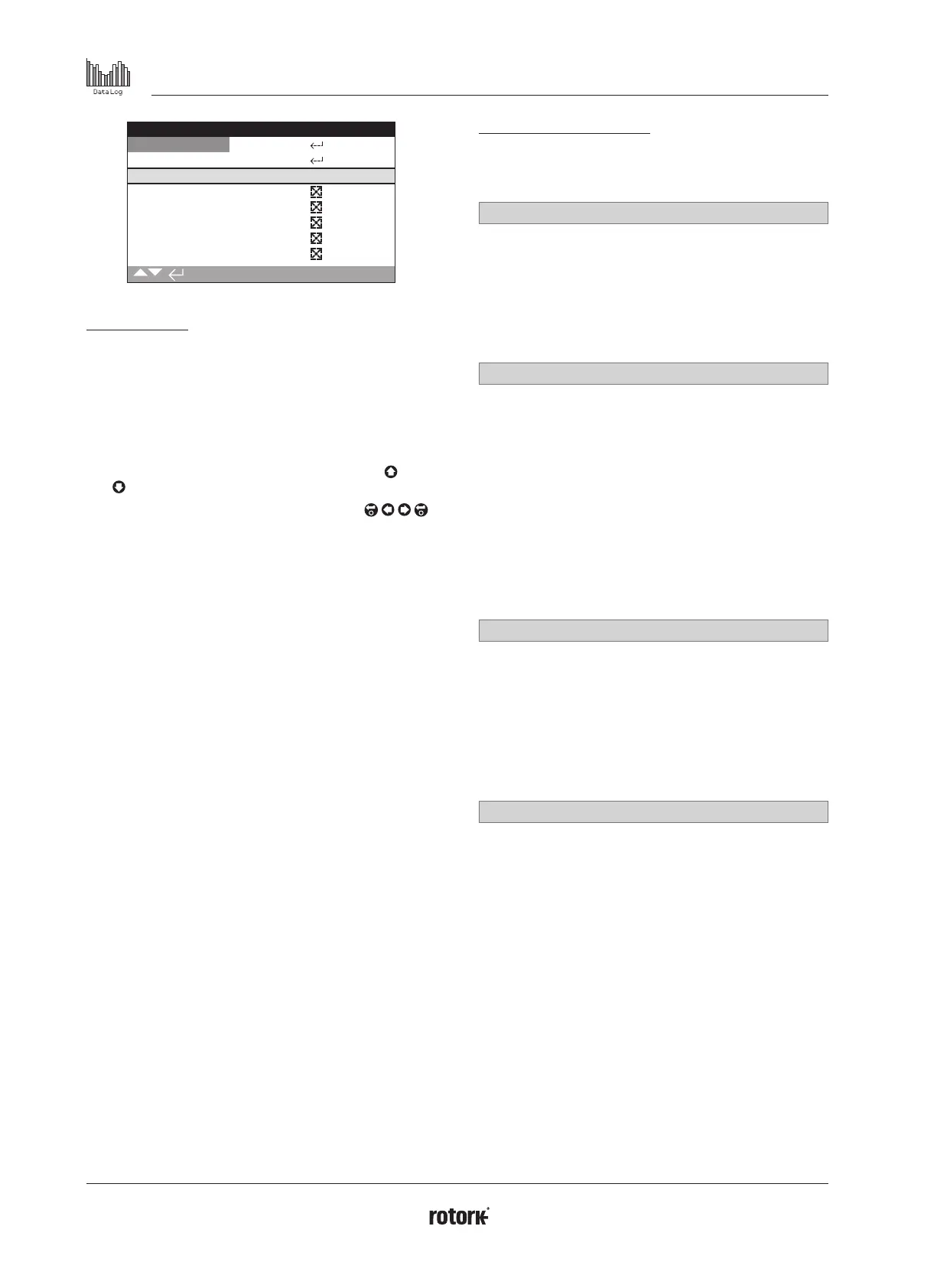

48 IQ3 Full Configuration Manual – Section: Data Log
4.2.1-1 Event Logs – Control Event Log – Event Log Filter
Stopped
Clear All
Select All
User Interface
Local Open
Local Close
Stop
Local
Remote
1/59
Event Log Filter
This screen contains a list of all the possible control parameters
that can be shown in the Control Event log. In order to make
viewing easier, the user can select the parameters they are
interested in viewing. Once selected, these parameters will be
listed in the Control Event Log screen.
The checkbox indicates the parameter will be displayed.
To scroll and highlight the control parameters use
and arrows.
To toggle between show/hide parameter press
.
List of Control parameters
1/59 Clear All - Clears all selected options.
2/59 Select All - Selects all options.
User Interface
3/59 Local Open - Shows/hides local open events.
4/59 Local Close - Shows/hides local close events.
5/59 Stop - Shows/hides stop events.
6/59 Local - Shows/hides local events.
7/59 Remote - Shows/hides remote events.
Remote Hardwired Control
8/59 Open - Shows/hides remote hardwired control
open events.
9/59 Close - Shows/hides remote hardwired control
close events.
10/59 ESD - Shows/hides remote hardwired control ESD events.
11/59 Maintained - Shows/hides remote hardwired control
maintained events.
12/59 Close Interlock - Shows/hides remote hardwired control
close interlock events.
13/59 Open Interlock - Shows/hides remote hardwired control
open interlock events.
Remote Source 1 Control
14/59 Open - Shows/hides remote source 1 control
open events.
15/59 Close - Shows/hides remote source 1 control
close events.
16/59 ESD - Shows/hides remote source 1 control ESD events.
17/59 Maintained - Shows/hides remote source 1 control
maintained events.
Remote Source 2 Control
18/59 Open - Shows/hides remote source 2 control
open events.
19/59 Close - Shows/hides remote source 2 control close
events.
20/59 ESD - Shows/hides remote source 2 control ESD events.
21/59 Maintained - Shows/hides remote source 2 control
maintained events.
