52 IQ3 Full Configuration Manual – Section: Data Log
4.3.1 Trend Logs – Temperature 4.3.2 Trend Logs – Battery
Open Limit
Trend Logs
Temperature
Battery
Vibration Average
Vibration Peak
Temperature
Temperature Hr:0 Deg C:27
150
C
-60
02
4Hours
Actuator Temperature

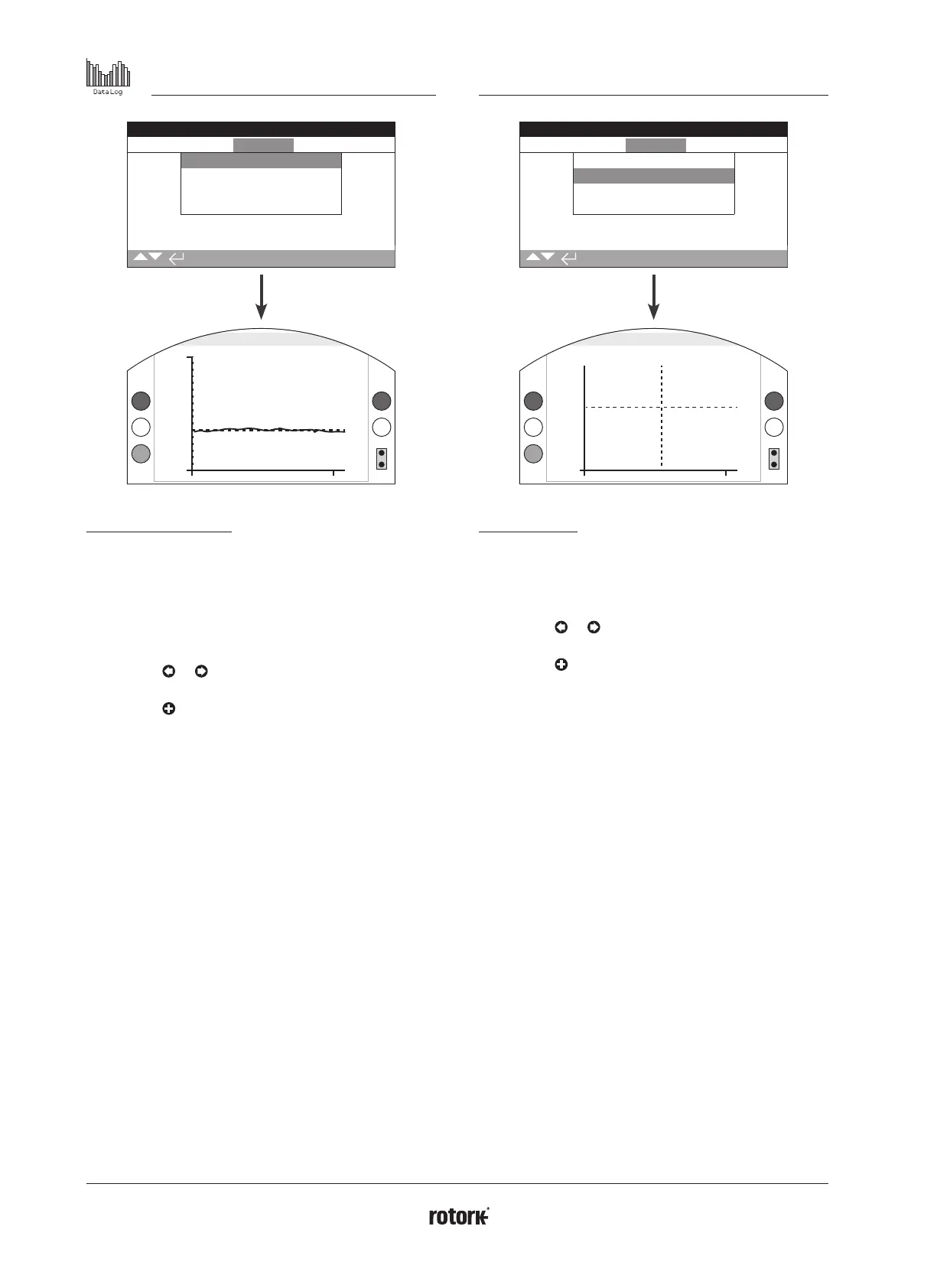

This graph displays a temperature reading over the last 24
hours/30 days/12 months/10 years. The temperature is taken
from an internal sensor on the circuit board and can be affected
by the heating effect of internal components. It may not reflect
external ambient temperature. It can be used to monitor
changes in temperature which may have an effect on operational
conditions.
Pressing the or arrows moves the cursor along the
graph by 1 hour/1 day/1 month/1 year increments.
Pressing the key cycles through the timescales of 24
hours/30 days/12 months/10 years.
Open Limit
Trend Logs
Temperature
Battery
Vibration Average
Vibration Peak
Battery
Battery Hr:14 mV:8850
15000
mV
0
02
4Hours
Battery Charge
This screen displays a battery level graph in mV over the last 24
hours/30 days/12 months/10 years. Effects on battery life include
environmental conditions and usage. Refer to PUB0020-39 for
further details on battery types and replacement procedures.
Pressing the or arrows moves the cursor along the
graph by 1 hour/1 day/1 month/1 year increments.
Pressing the key cycles through the timescales of 24
hours/30 days/12 months/10 years.
