60 IQ3 Full Configuration Manual – Section: Assets
5. Assets
Asset management is an increasingly desirable requirement
in process industries and can be used to manage valve asset
performance, availability and maintenance schedules. Information
regarding the process, valve and actuator can be stored in the
IQ3. In addition to this the installation and commissioning dates
along with the service history of the actuator can be recorded.
Asset management alarms can also be set to indicate possible
maintenance required.
Stored asset information can be shown on the actuator display
using the supplied Rotork Bluetooth
®
Setting Tool Pro. When the
actuator configuration file is downloaded, using the Bluetooth
®
Setting Tool Pro or directly with a PC running Insight 2, asset
data is appended along with the actuator build and configuration
data. The actuator configuration and asset data can be exported
as a CSV file from Insight 2.
It is therefore important that data regarding the valve-actuator
tag, valve details and process information are populated by
the user or their agent. Rotork will populate actuator build
data automatically on manufacture. Other applicable data will
be populated when contracted to commission or service the
actuator.

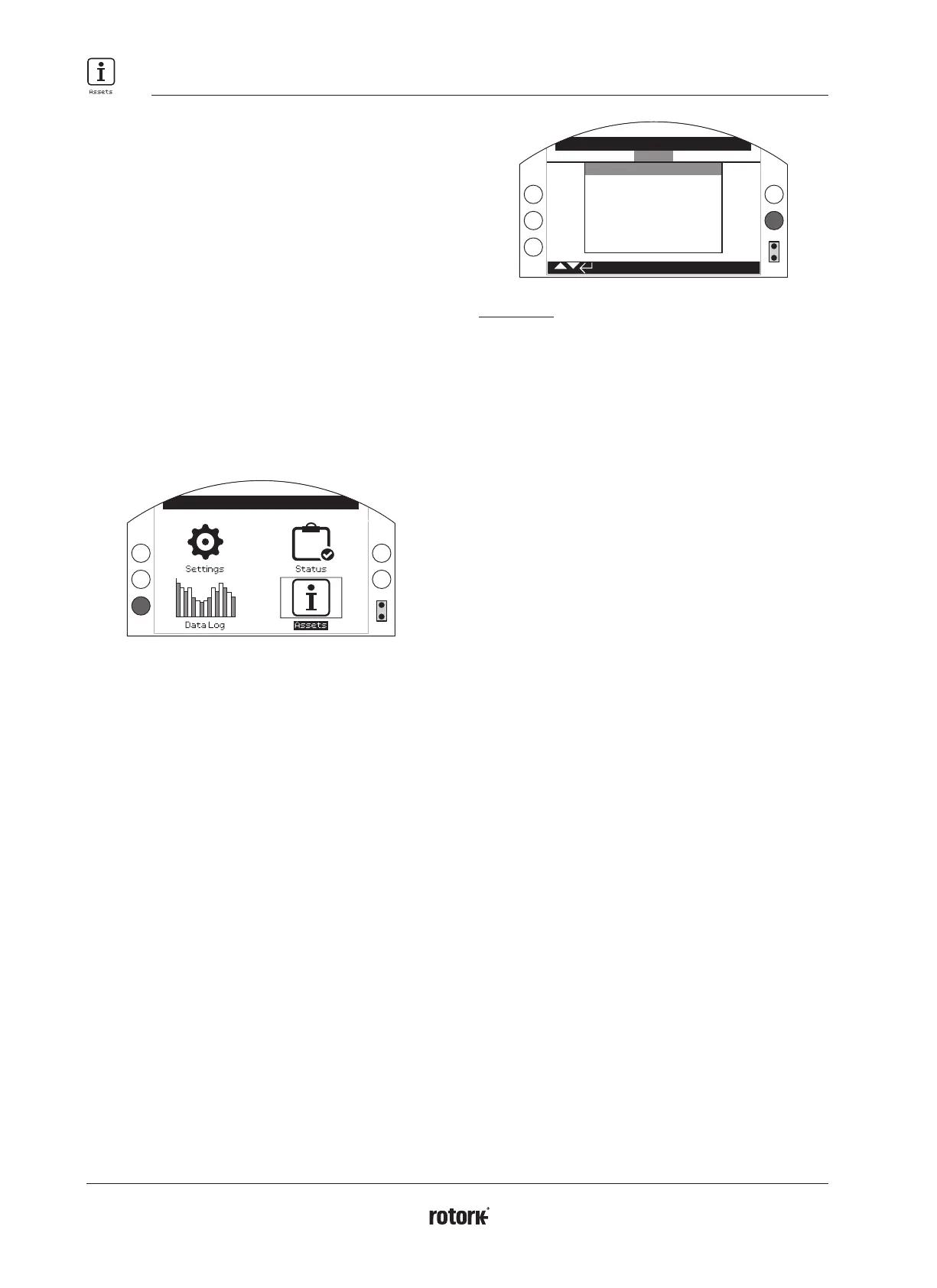

Open Limit
Open Limit
Assets
Actuator
Valve
2nd Stage Gear Box
Service History
Service Alarms
Namur 107
Online Help
Main Menu
The asset menu is split into different categories for each type of
data. The full assets menu structure is shown below:
5.0 Assets menu structure Page
5.1 Actuator –
data regarding the actuator and its build 61
5.1.1 Actuator Name Plate 61
5.1.2 Actuator Std Build 63
5.1.3 Actuator Opt Build 63
5.2 Valve – 64
data regarding the valve and process
5.3 2nd Stage Gear Box – 64
data regarding the second stage gearbox
(when fitted)
5.4 Service History – 65
dates of FAT, commissioning and
last service
5.5 Service Alarms – 65
sets alarms for indicating that valve and
actuator service is due
5.6 NAMUR 107 – 66
configure monitored valve and actuator
status alarms for standard NAMUR 107
diagnostic system indication
5.7 Online Help – 67
QR code link
