2.1.5 Radio control unit

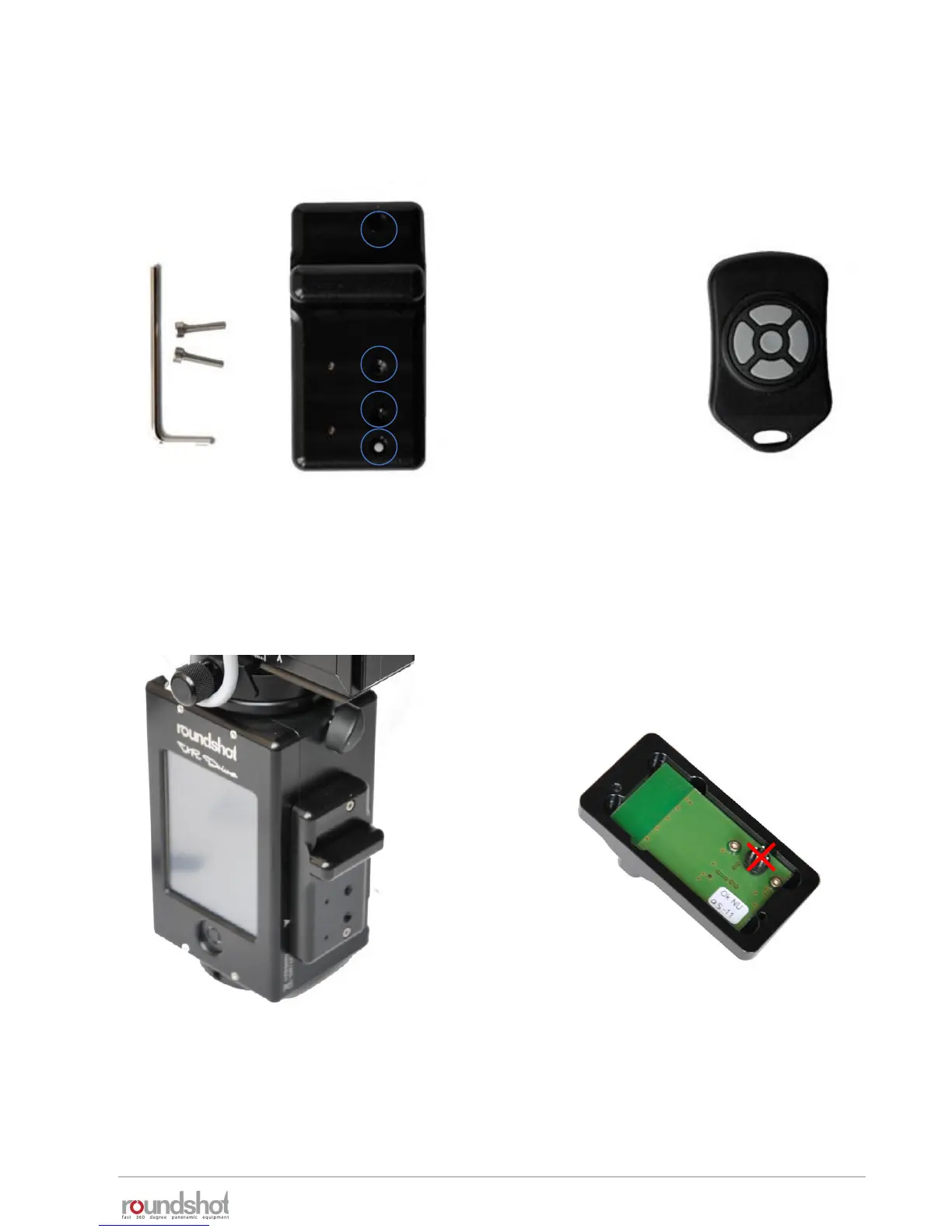

The radio control unit consists of the following parts:
Allen key with
screws
Radio receiver
(on VR Drive)
Radio sender
(remote)
When separated from VR Drive never
place the radio receiver on the
connector pins as they are fragile.
With the VR Drive delivery the radio control
unit is already attached on the VR Drive.
It does not have to be removed.
Socket for upper screw
Socket for lower screw
Red LED
Sync contact
