23/05/2019Roundshot VR Drive Instruction Manual – Firmware Version 2.023 24

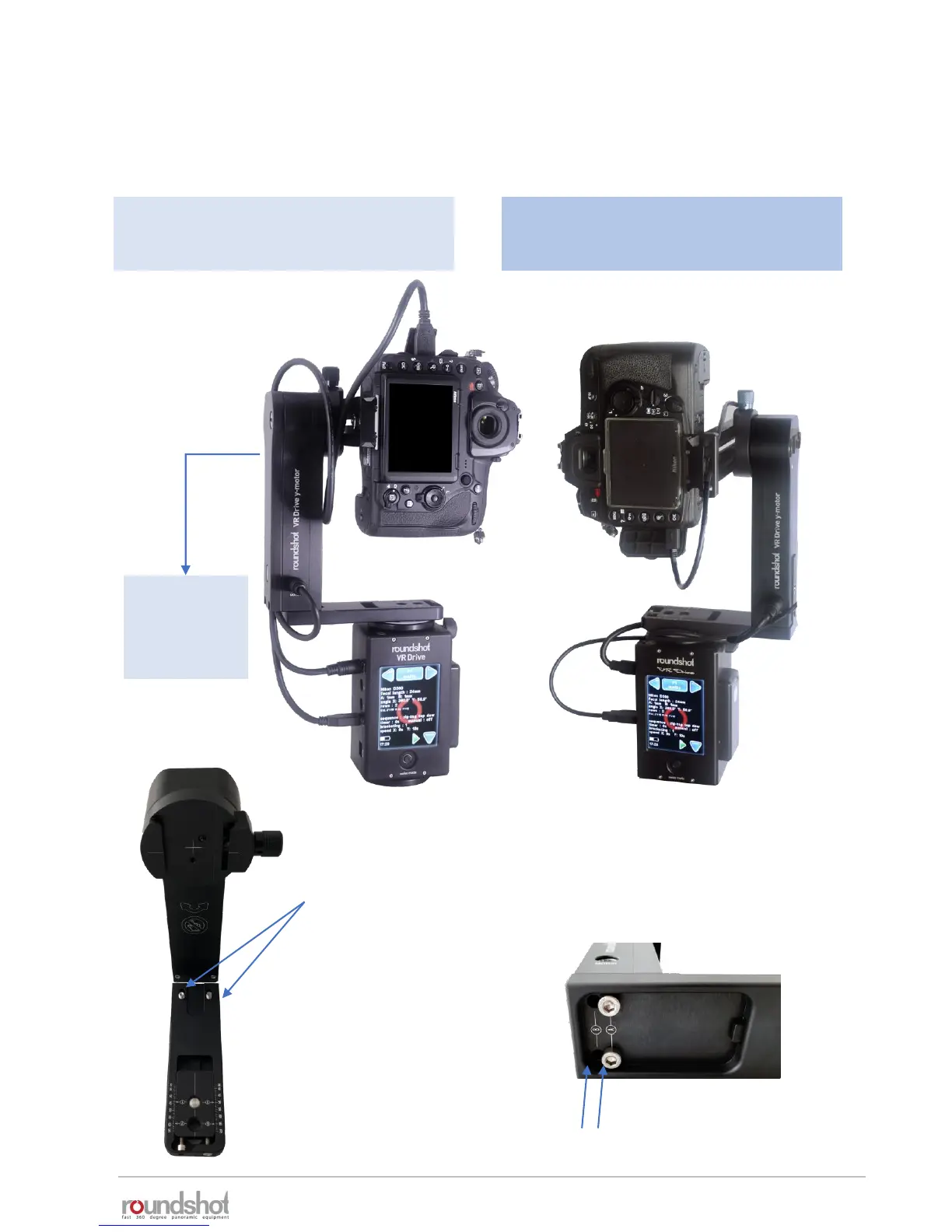

2.1.2 Attaching y-motor on bottom plate
VR Drive with bottom plate, inverted y-
motor (on left) and with slide cover to
protect cables
VR Drive with bottom plate, standard
VR holder and with standard y-motor
(on right)
The VR bottom plate (for fixed camera centre position) can be mounted in two ways:
Requires
inversion of
y-motor at
Seitz factory
These two screws can be
placed in position “A” or
“B”
The VR Drive y-motor is attached on top of
the bottom plate using two screws.
“A”
“B”
