RTK Series 725 Annunciator
10
3.4 Adding Or Changing Film Legends

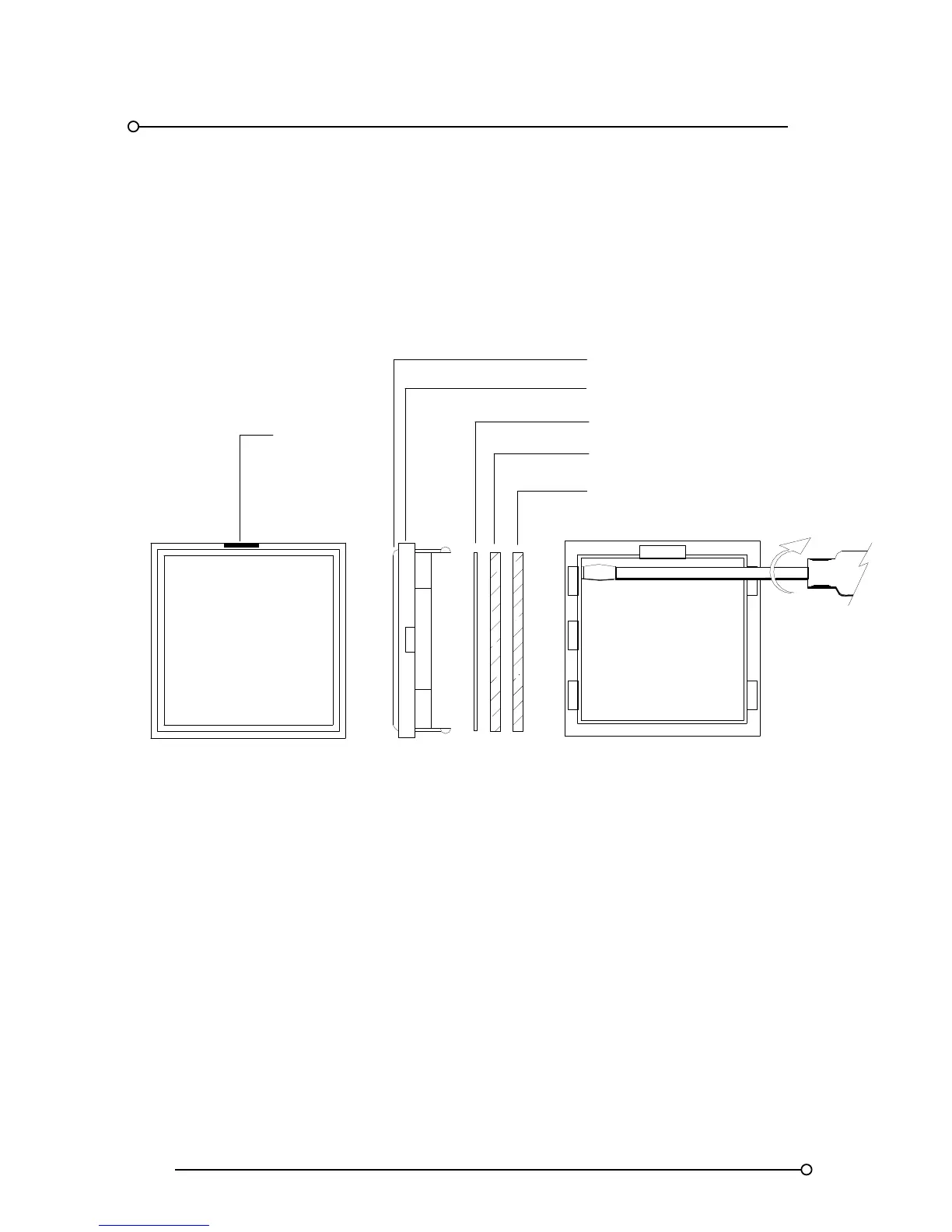

Each lens assembly has a small slot in the upper ridge of the surround bezel, which allows a flat
blade terminal screwdriver to be used to gently lever the assembly forward. Once the assembly has
been removed the diffuser, coloured filter and film legend can be accessed using a flat blade
screwdriver to gently lever the lens clear of the associated parts as indicated in the diagram below.
This MUST be levered on the side NOT the top or bottom
LASER
PRINTED
FILM
LEGEND
Diffuser
Coloured Filter
Film Legend
Slot to aid
lens removal
Lens
Bezel
3.5 Lamp Or LED Illumination
All units are suitable for either 28V - 10 mm wedge based lamps part no. LP-28-004 or “fit and forget”
LED assemblies part no. P725-LED-** specify colour
RD = red,
YW = yellow,
AM = amber,
BL = blue,
GN = green,
WT = white.
The LED assemblies plug into the same socket as the lamp.
