26. Serial Communication Card
The series 725 Series Alarm Annunciator can be fitted with a serial communications card, which will
provide an RS485 port to connect to external equipment.
A number of features on this card are DIL- switch selectable as described in the following section.

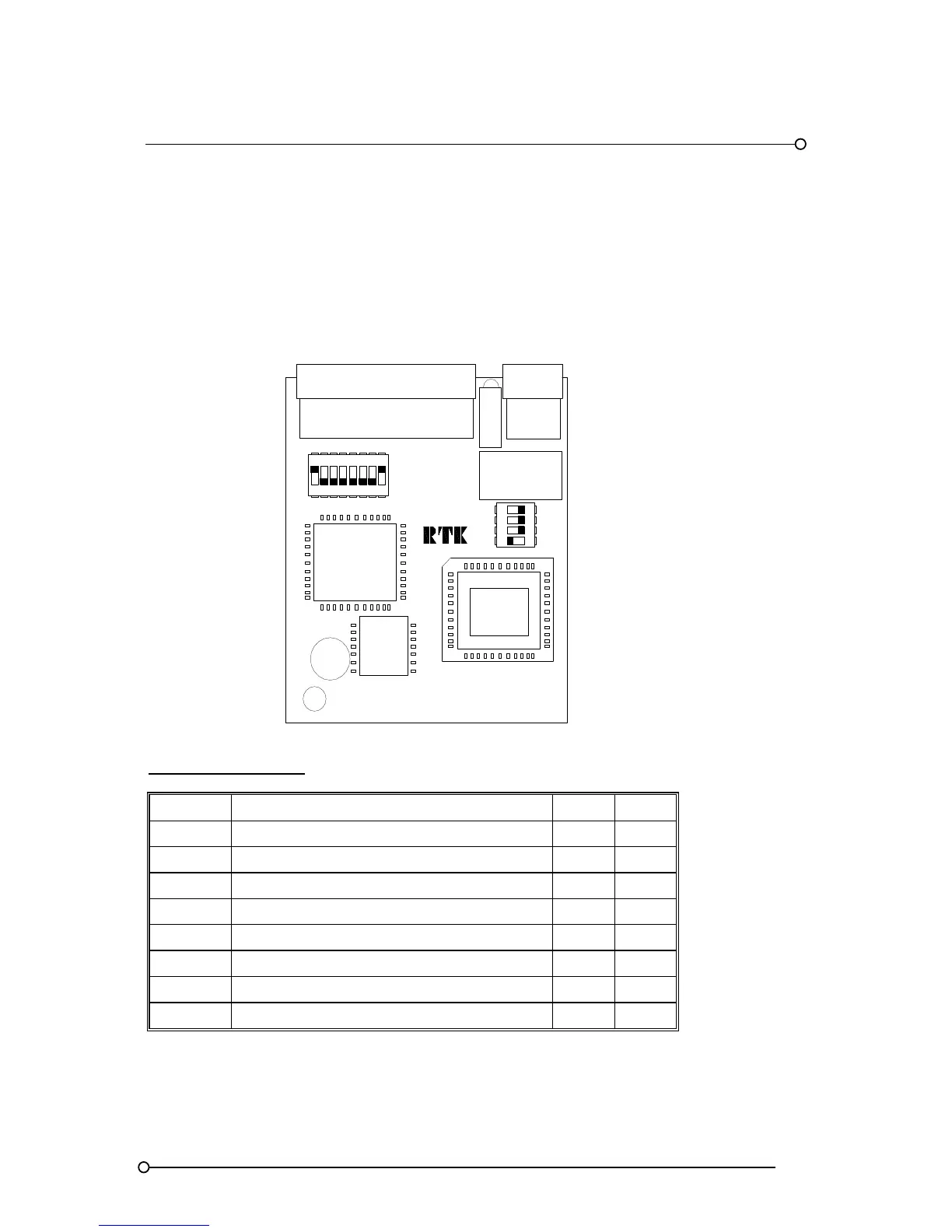

Position Of DIL Switches On Communications Card
ON
4 86
7
5
OFF
3
21
A4506-*
CARD MODEL NO CB4468POP1
2
1
43
ON
OFF
SW1
SW2
COMMUNICATION CARD
Switch SW1 Functions
SW1-* FUNCTION ON OFF
SW1-1 Address bit 1 1 0
SW1-2 Address bit 2 1 0
SW1-3 Address bit 3 1 0
SW1-4 Address bit 4 1 0
SW1-5 Address bit 5 1 0
SW1-6 Address bit 6 1 0
SW1-7 Enable Remote Serial PB Control ON
SW1-8 Enable outputs for bulb drive ON
