RTK 725 Series User Manual

RTK Series 725 Annunciator
55
17.8 Remote Pushbutton Module Connections

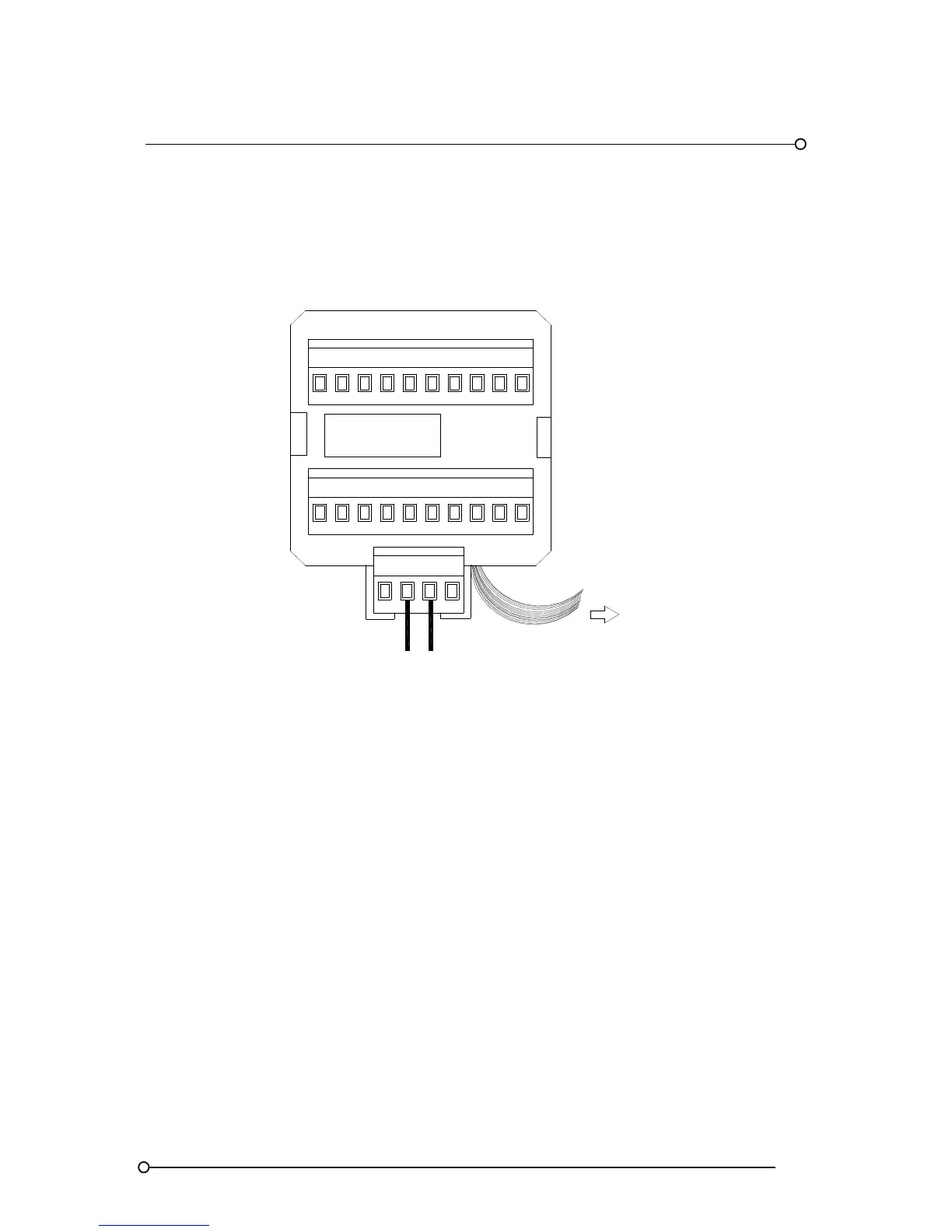

In order for the remote pushbutton/programming module to operate correctly this unit should be
interconnected to the annunciator(s) using a ribbon cable as shown in the diagram below. This ribbon
cable can also connect to further annunciators if they are all to be configured and linked to the same
pushbutton module.
24VDC LOGIC
SUPPLY
+VOV OV +V
SUPPLY 24VDC
SPR
RIBBON TO
MAIN ANNUNCIATOR
SI/O MODULE
Warning
The 24VDC power supply must be independently wired to the programming module and the
annunciator. Never feed the power into one unit and daisy chain the wiring.
