RTK 725 Series User Manual

RTK Series 725 Annunciator
48
14. Small Window Alarm Module Wiring
Series 725 units supplied with small windows provide four alarms per cell.
14.1 Standard Version Without Repeat Relay Facility
Each cell is equipped with a type A4 back plate and two x dual channel alarm cards.
Model no CB5674POP1 suitable for 2 signal inputs. The alarm card is located in the upper card slot
and
Model no CB5647POP3 suitable for 2 signal inputs. The alarm card is located in the lower card slot
14.2 Optional Version With Repeat Relay Facility
Each cell is equipped with a type AR4 back pate and two x dual channel alarm cards
Model no CB5674POP2 suitable for 2 signal Inputs and equipped with 2 relay outputs each having
one set of changeover contacts is located in the upper card slot
Model no CB5674POP4 suitable for 2 signal Inputs and equipped with 2 relay outputs each having
one set of changeover contacts located in the lower card slot

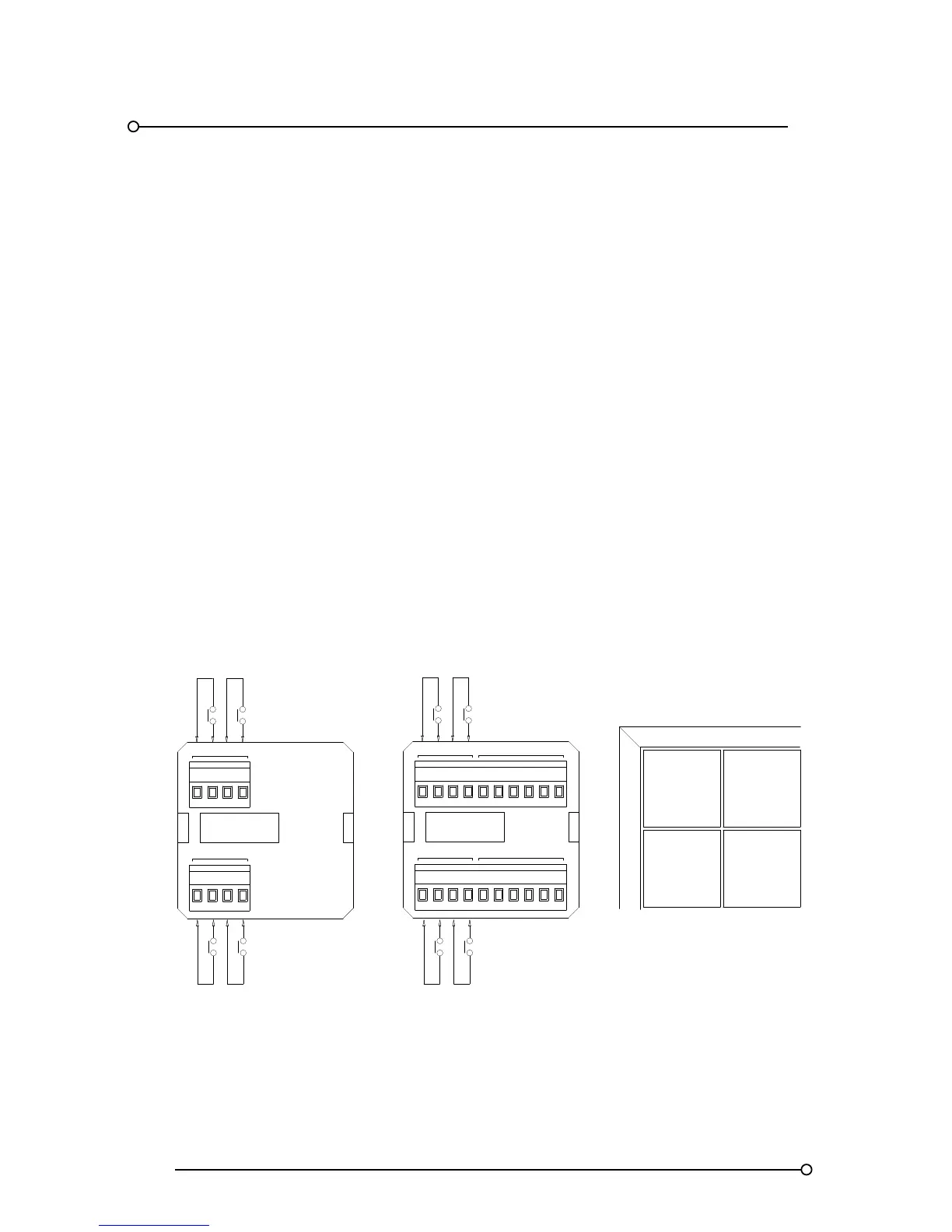

Wiring Details For A4 And AR4 Small Window Versions
INPUT
INPUT
CH*
INPUT
INPUT 4INPUT 3
INPUT 3
CH*
3
4
C C
INPUT
1
C2C
A4
3 C
1 C
INPUT 2INPUT 1
INPUT 1
RELAY OUTPUTS
INPUT 4
AR4
NC
RELAY OUTPUTS
R34
NO
C
NC
R4
NO
NCNC
2 C R1
NO NO
R2
INPUT 2
1 2
3 4
FRONT VIEW
WINDOW LAYOUT
