RTK Series 725 Annunciator
60
20.2 Changing A Function Setting

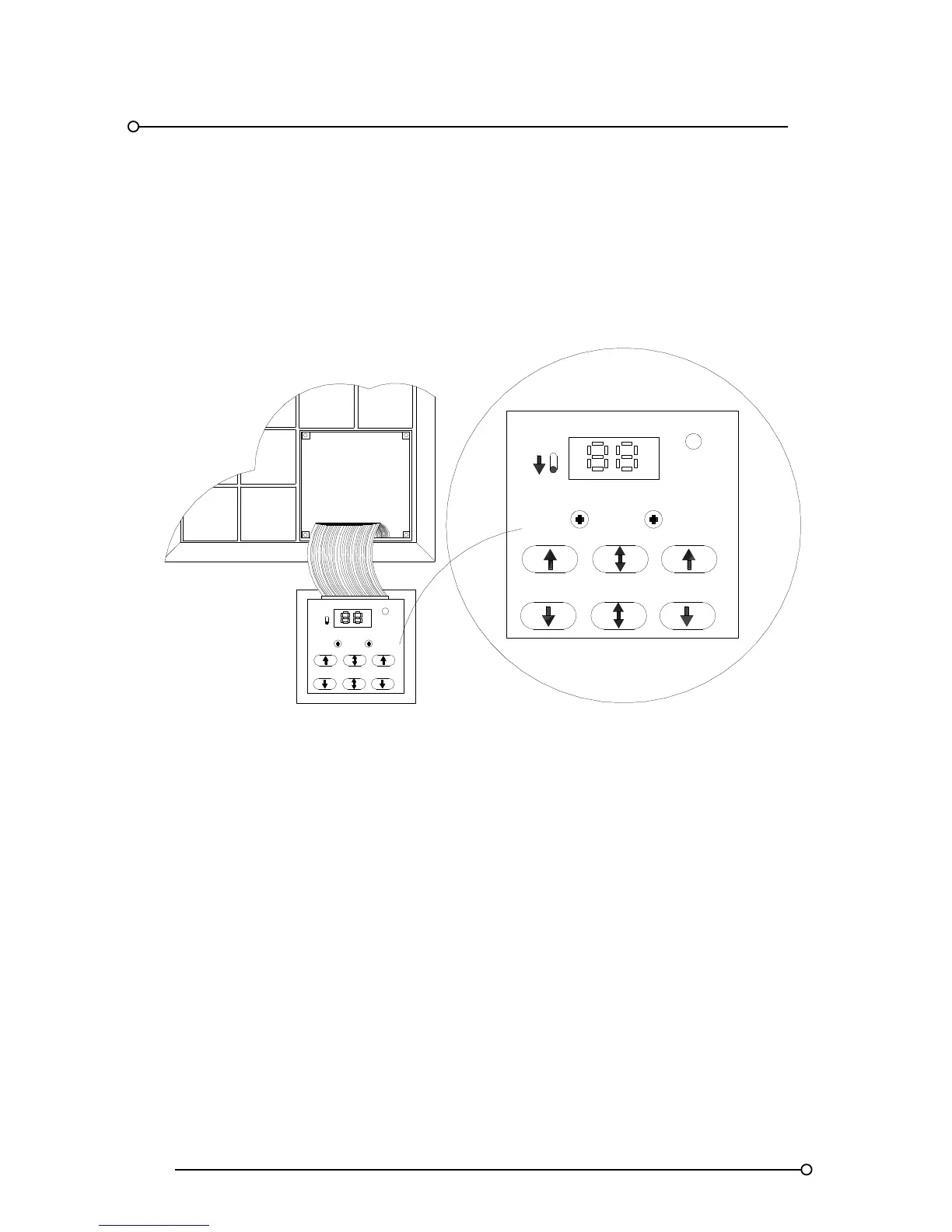

When the pushbutton / programming module has been hinged down and theCONF”, “programme
mode”, switch has been placed to the ON position the operation of the pushbuttons changes as
indicated on the information plate on the underside of the unit as detailed below:-
Programming Information Plate Details
FUNCTION
STATUS
CHANNEL STATUS FUNCTION
STATUS
STATUSCHANNEL FUNCTION
FUNCTION
ON
OFF
CONF
CONF
Once the unit is in the (CONF), programme mode, the window associated with the channel selected
for programming will fast flash.
1. The lamp test / system test pushbuttons are used to select the required channel
2. The reset / first reset pushbuttons are used to select the required Function No.
3. The ack / mute pushbuttons are used to enable or disable the feature.
Note:- If the status LED is on the feature has been enabled.
Important note:-
If the user programmes a channel as detailed above and simply returns the unit to the run mode by
placing the CONF switch to the off position the information will not be stored. Programme changes
are only stored after the user has moved onto an adjacent channel, using the system test or lamp
test pushbuttons, at that point the programmed information is stored in EEPROM on the associated
alarm card
