RDC6432G control system user manual V1.1
SHENZHEN RUIDA TECHNOLOGY
4

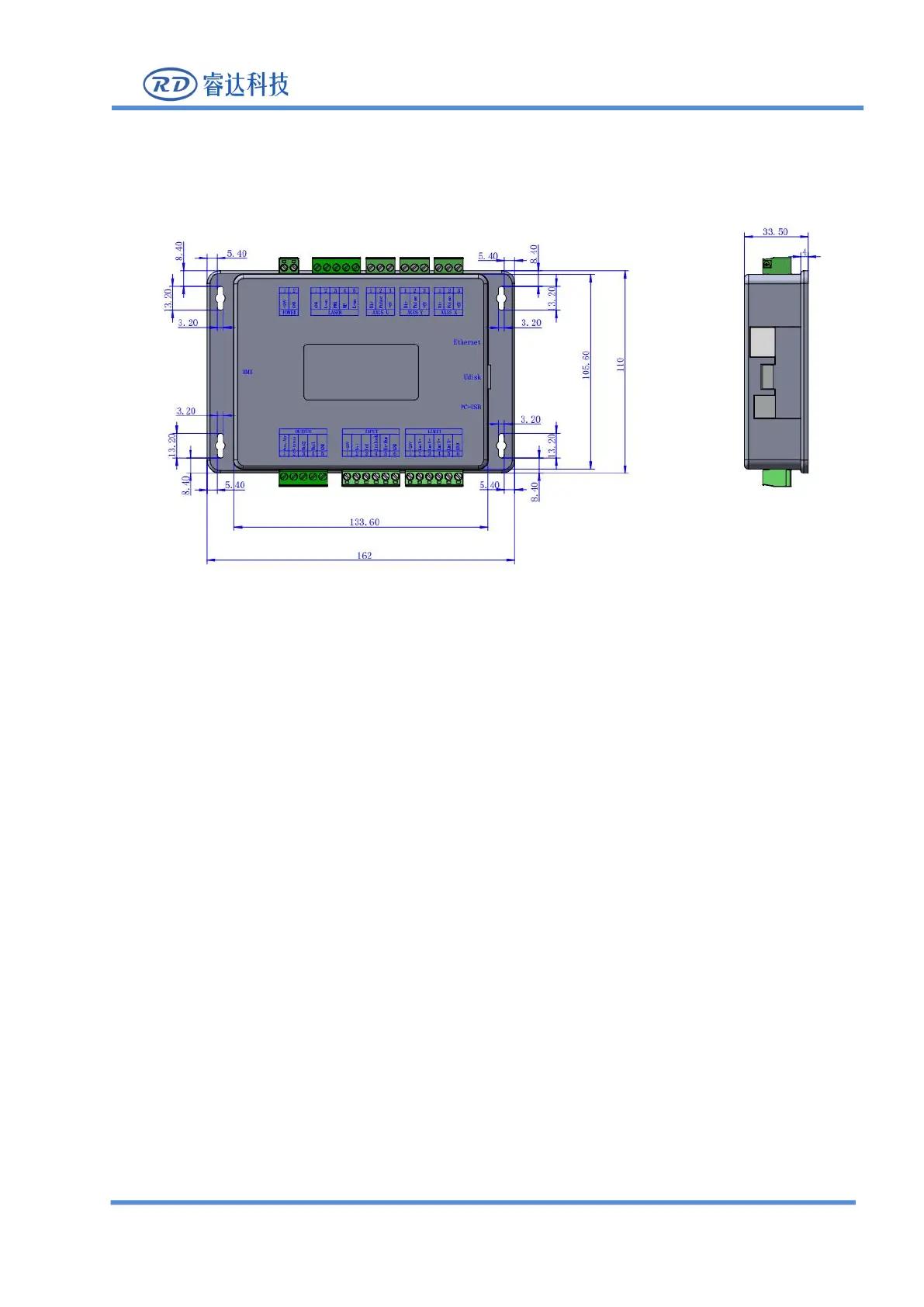

2.1 Mainboard installation size
All dimensions are in mm, accurate to 0.1mm (four of the positioning holes are symmetrical)
