7.1 Input port
The water protection input port WP of this controller is only compatible with 24V. All other input ports are
compatible with input 5V / 12V / 24V.

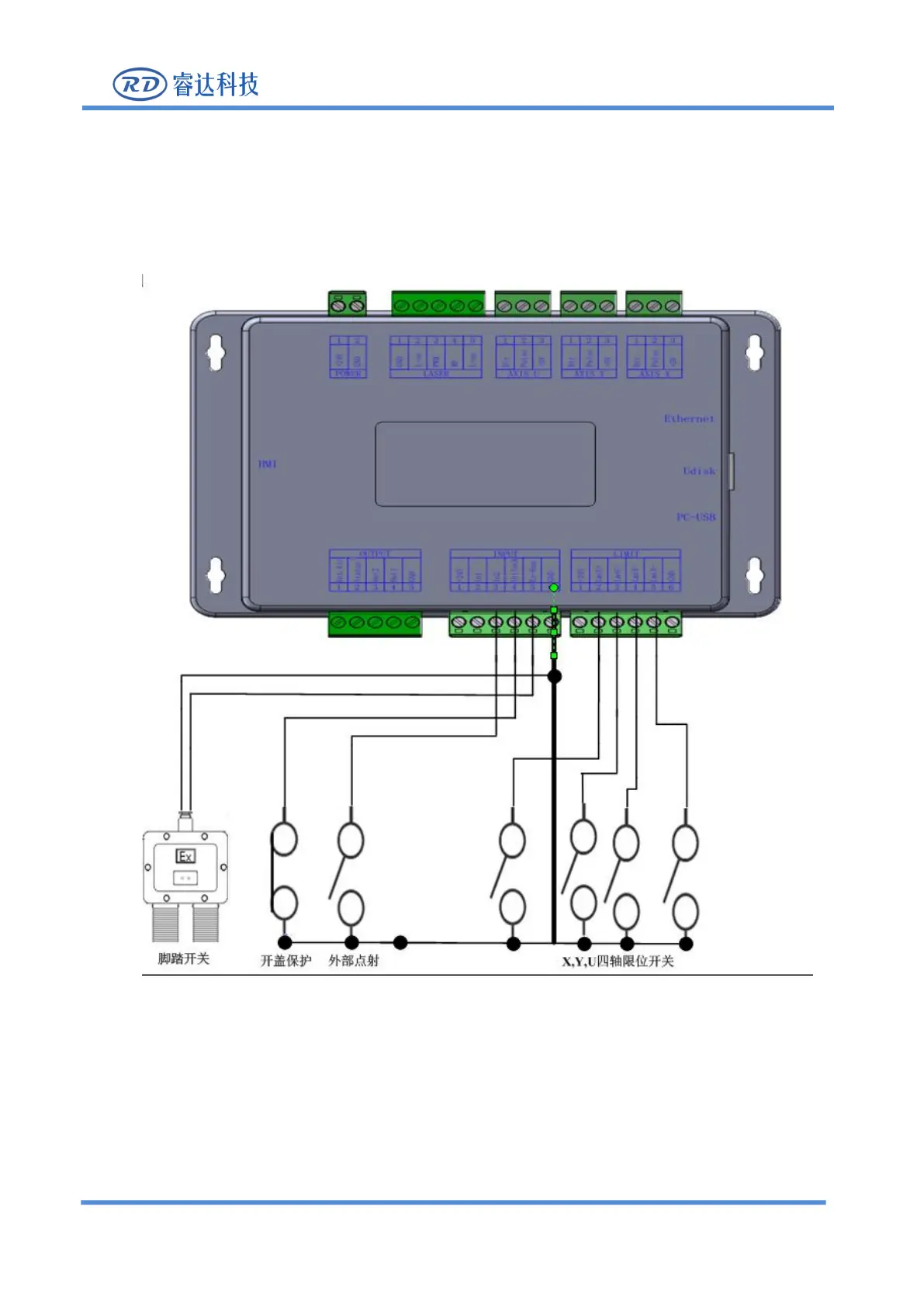

The wiring diagram of the input port is as follows:
Figure 7.1-1 Example of input
