RDC6432G control system user manual V1.1
SHENZHEN RUIDA TECHNOLOGY
7.2 Output port
All output signals of this controller are output based on opto-coupler isolation technology and OC gate
output. Its maximum driving capacity is 300mA, which can directly drive 6V / 24V relays, light-emitting
indicators, buzzer alarm devices, etc. If user wants to drive valve, a relay is strongly recommended to be
added between the controller and the valve.

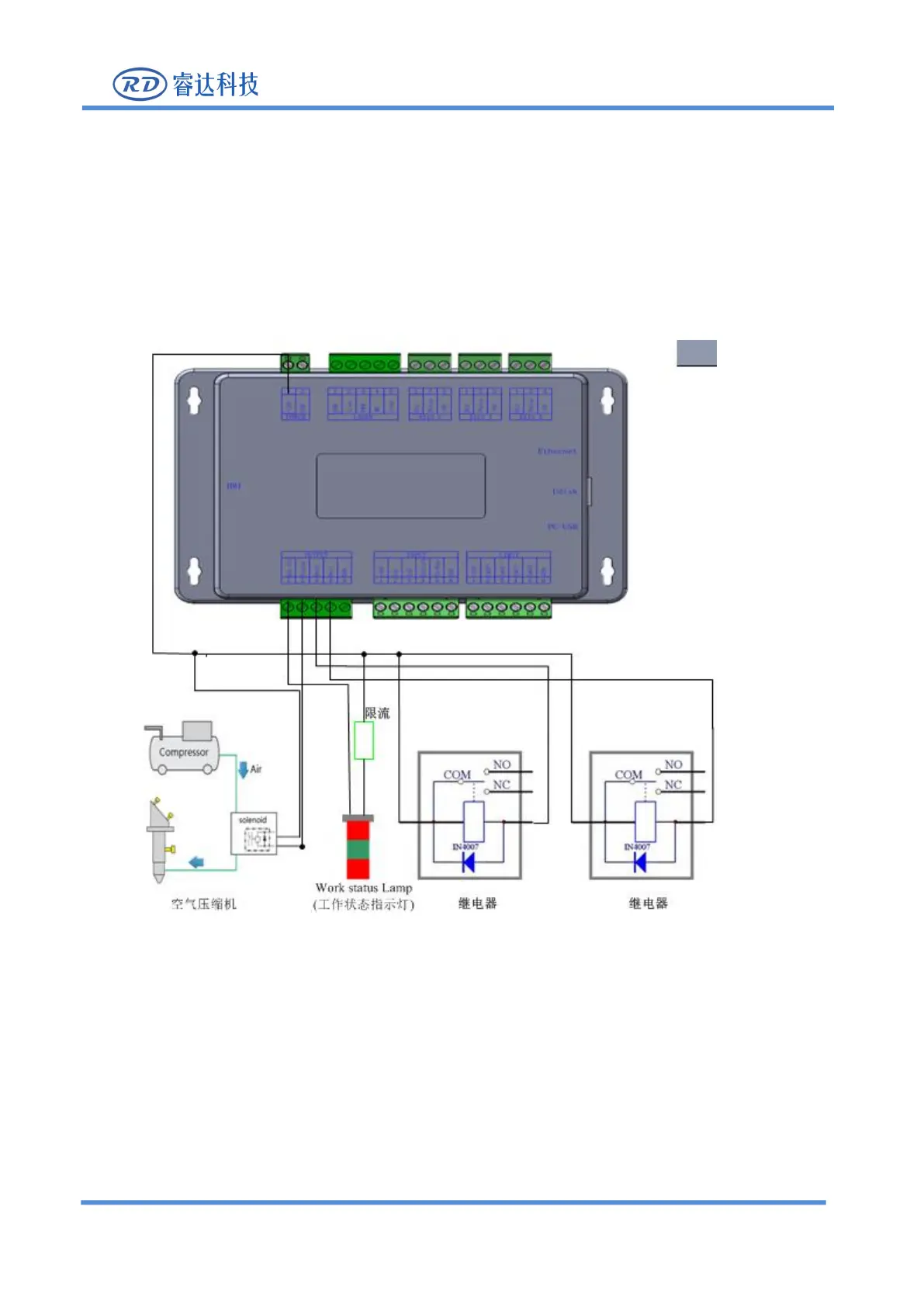

The output wiring diagram is as follows:
Figure 7.2-1 Example of output connection
