Internal UV Ozone Photometer Page 9-
Installation
When a Model 2010D is ordered with the Photometer option, the
Photometer module is delivered pre-installed in the 2010D's
option bay. All pneumatic connections to the Photometer are
external, allowing the user to make the choice of where to
monitor the ozone. In most cases, the photometer's sample inlet
will be connected to an unused port of the 2010D's outlet
manifold, allowing it to directly monitor the 2010D's ozone
production during ozone calibrations. When the 2010D is
shipped, nothing is connected to the Photometer's inlet, however
a short length of Teflon tubing is provided for connection to
the outlet manifold.

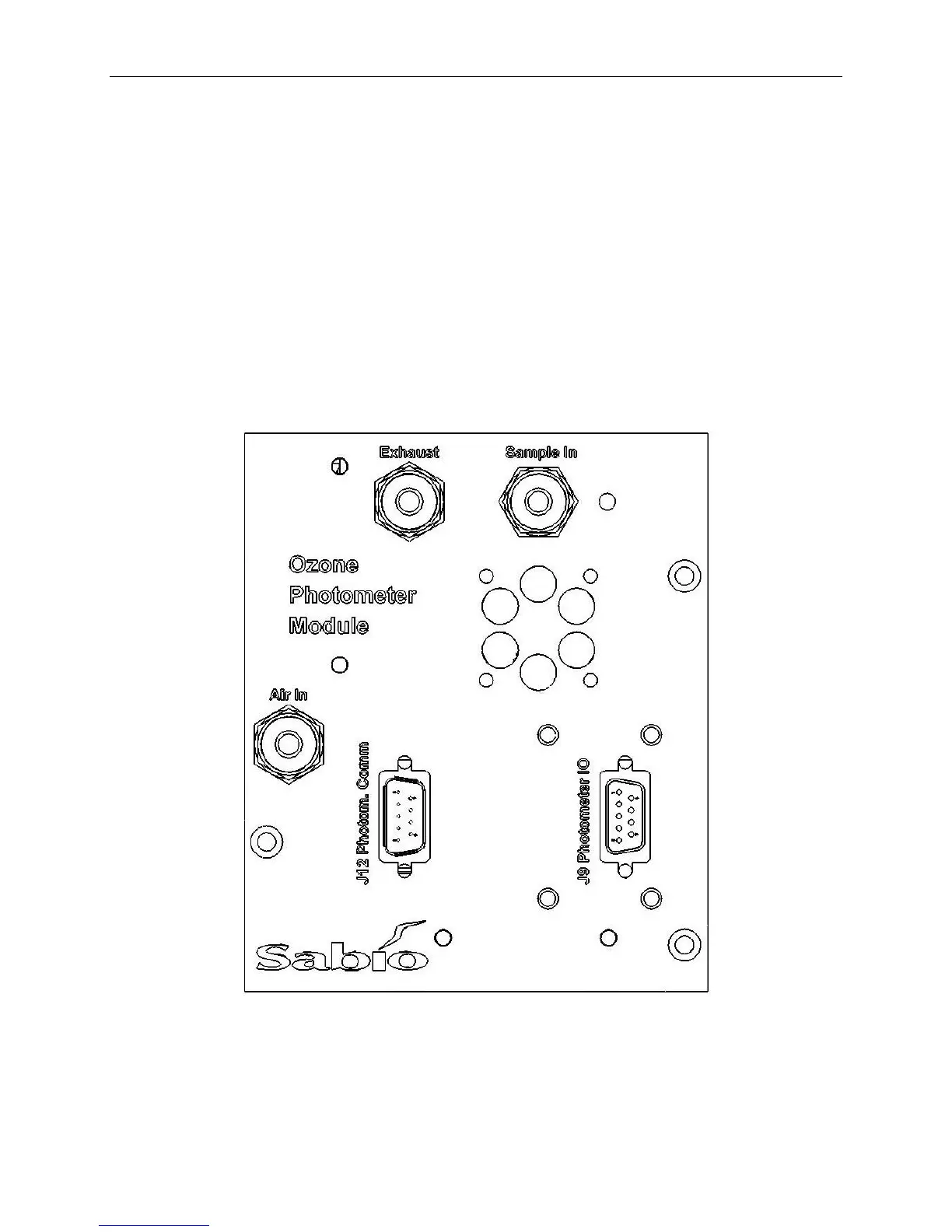

Figure 9-1 The Photometer Rear Panel
