SAGEMCOM F@ST 2804v2 User Manual

2 - Description and connection of your router
F@st™ 2804v2 Reference Manual - 253329475-A
Sagemcom document. Reproduction and disclosure prohibited Page 2-3

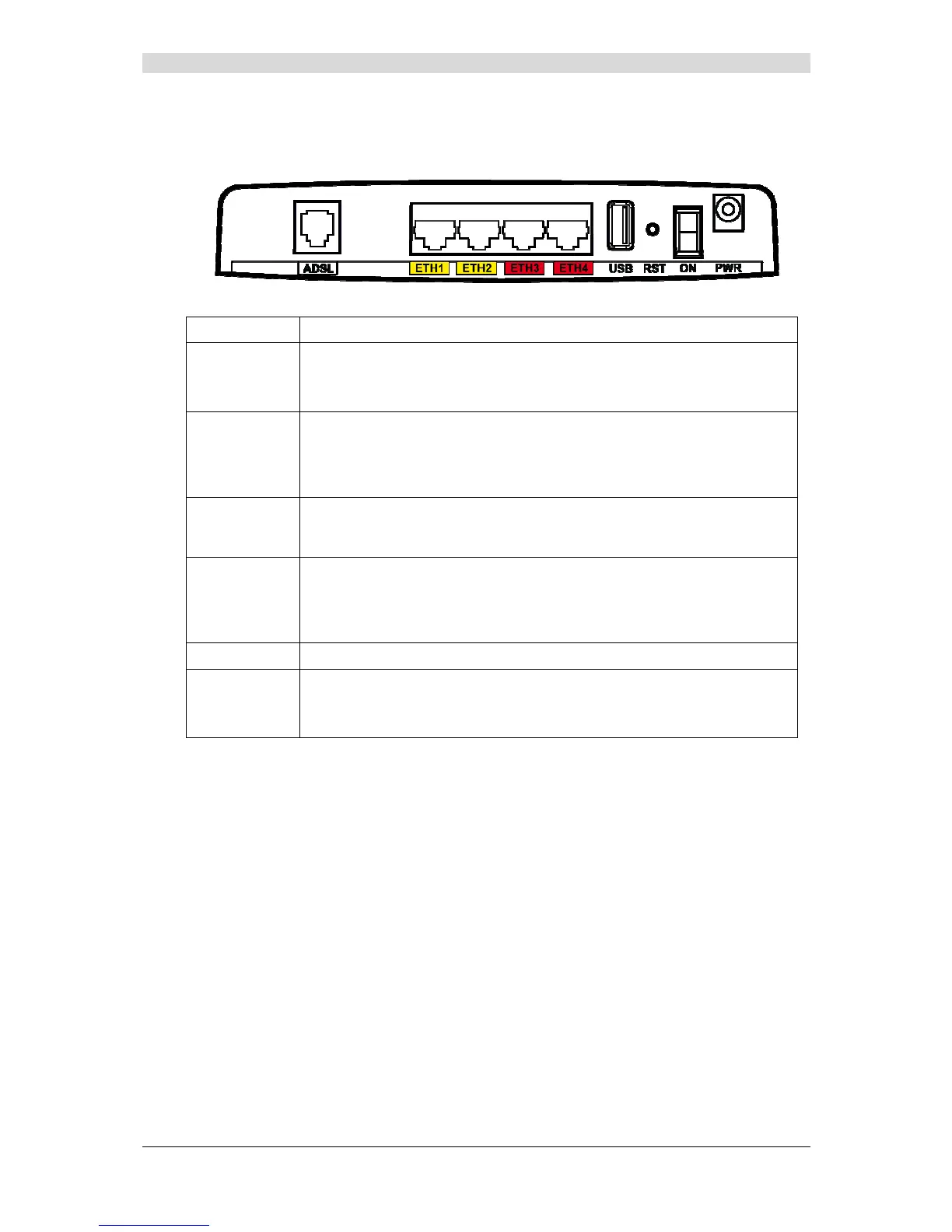

2.1.1 Connectors
Marking Meaning
ADSL
RJ11 connector - 6 pts. This connector is identified by a grey line on the
base (F@st
TM
2804v2).
It is used for the connection to an ADSL line (WAN interface).
ETH1 to ETH4
RJ45 connectors - 8 pts (10/100BASE-T Ethernet Interface). These
connectors are identified by a yellow and a red line on the base.
They are used to connect to a computer or a television set (via a TV/Video
Decoder).
USB
“Master” USB type A female connector (USB Interface) used to “Memory
Sharing” and “Printer Sharing”. This connector is identified by a green line
on the base.
RST
This button allows the router to be reset to the factory configuration
(see § A.7).
Note: It is in shift compare to the other elements, to prevent an
accidental loss of configuration.
ON
On/Off switch.
PWR
Miniature jack fixed connector.
This connector enables the router to be supplied with direct current from a
mains adapter unit.

SAGEMCOM F@ST 2804v2 Specifications

General

Brand	SAGEMCOM
Model	F@ST 2804v2
Category	Network Router
Language	English
