SAGEMCOM F@ST 2804v2 User Manual

Annex G - Connectors
F@st™ 2804v2 Reference Manual - 253329475-A
Page G-4 Sagemcom document. Reproduction and disclosure prohibited

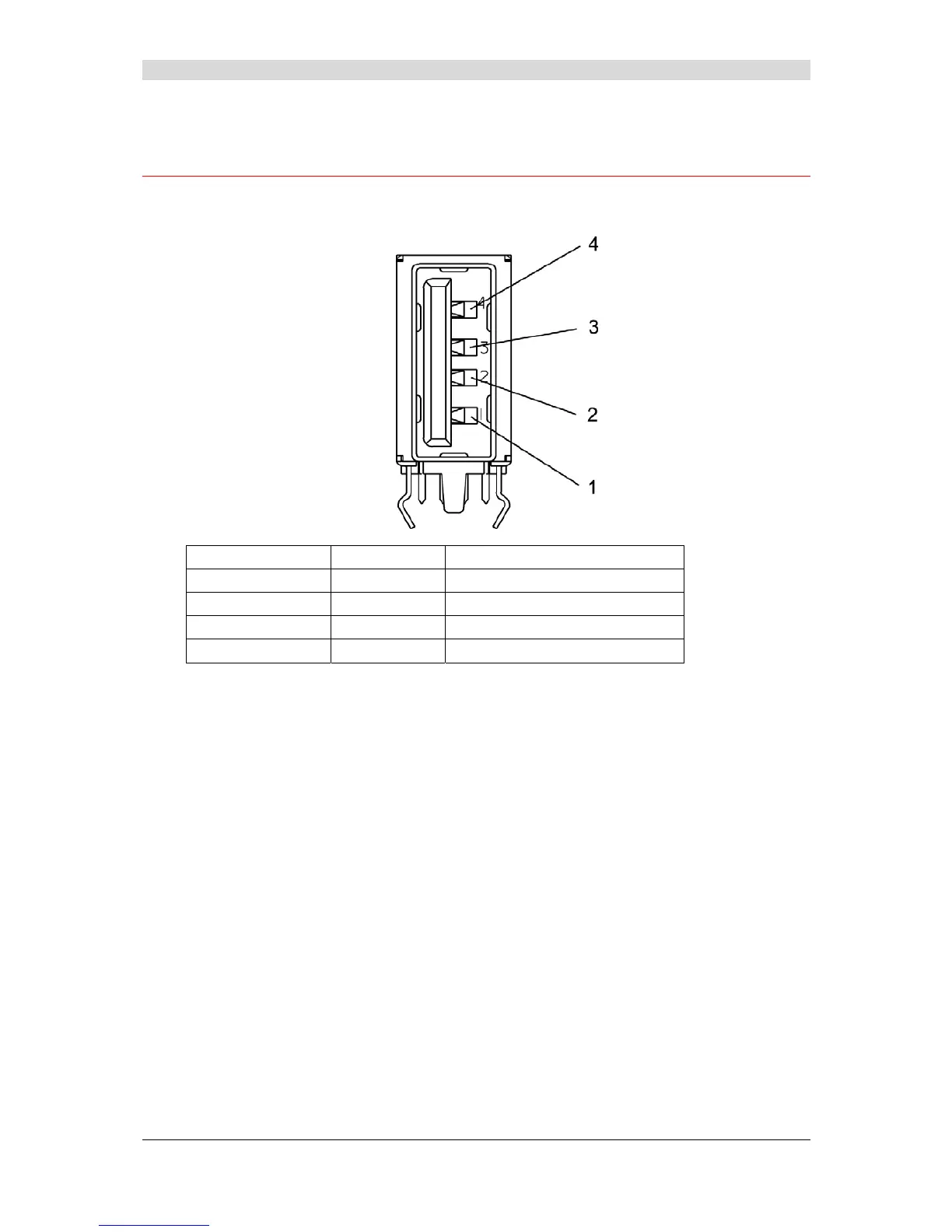

G.4 Pinouts of the "USB" connector
The "USB" interface is connected to the equipment using type A female USB fixed connector.
Contact No Signal Meaning
1 Vcc PC power (+)
2 - Data Subscriber line signal
3 + Data Subscriber line signal
4 Ground Earth

SAGEMCOM F@ST 2804v2 Specifications

General

Brand	SAGEMCOM
Model	F@ST 2804v2
Category	Network Router
Language	English
