Annex G - Connectors
F@st™ 2804v2 Reference Manual - 253329475-A
Page G-2 Sagemcom document. Reproduction and disclosure prohibited

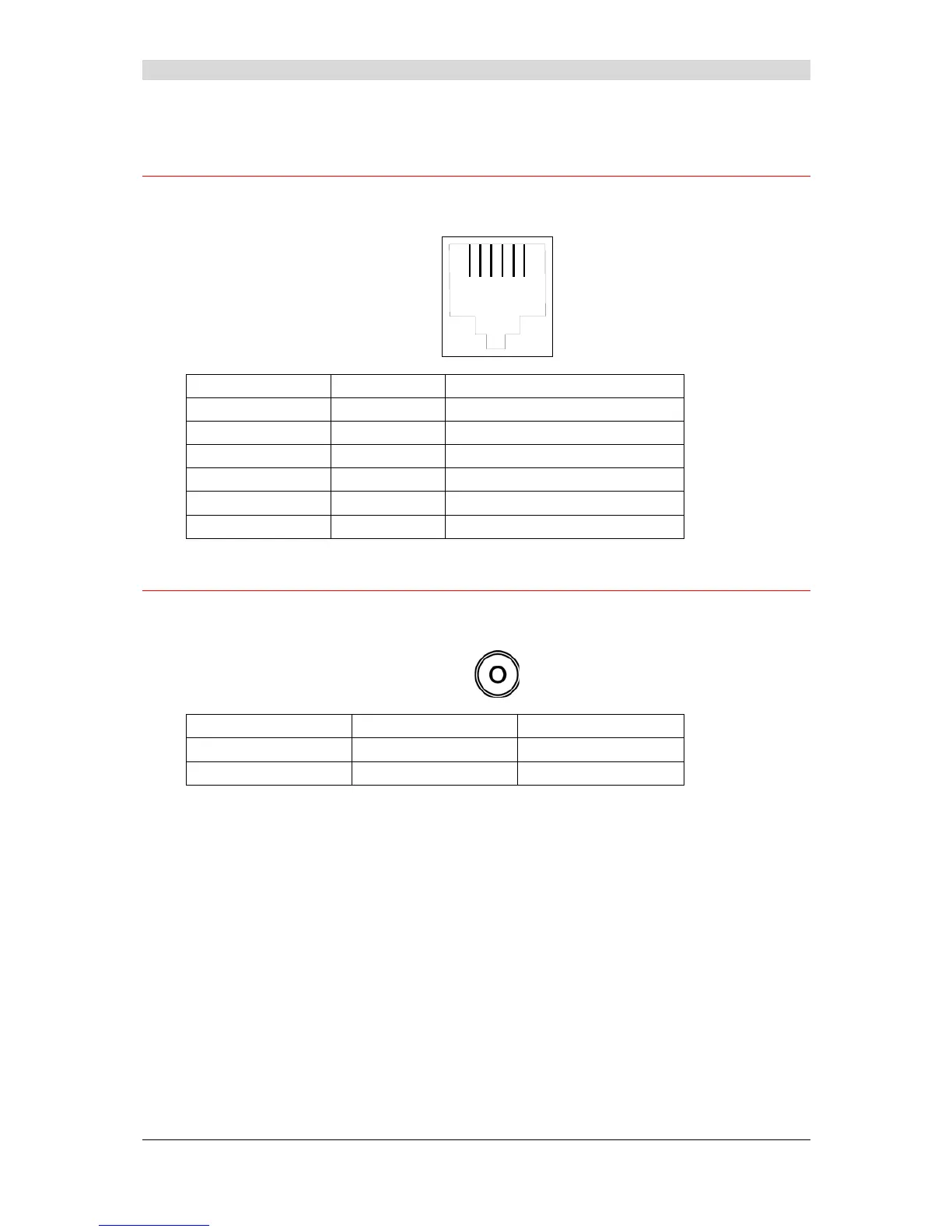

G.1 Pinouts of the " ADSL" connector
The equipment is connected to ADSL using a RJ11 fixed connector (6 pins).
123456
Contact N° Signal Meaning
3 LINE-A Line A signal
4 LINE-B Line B signal
1 NC Not connected
2 NC Not connected
5 NC Not connected
6 NC Not connected
G.2 Pinouts of the "PWR" connector
The mains unit is connected to the equipment using the miniature fixed connector of the case.
Contact No Signal Meaning
Intérieur +12 V Connexion DC "+"
Extérieur Masse Connexion DC "-"
