Annex G - Connectors
F@st™ 2804v2 Reference Manual - 253329475-A
Sagemcom document. Reproduction and disclosure prohibited Page G-3
G.3 Pinouts of the "ETH1", "ETH2", "ETH3" and
"ETH4" connectors

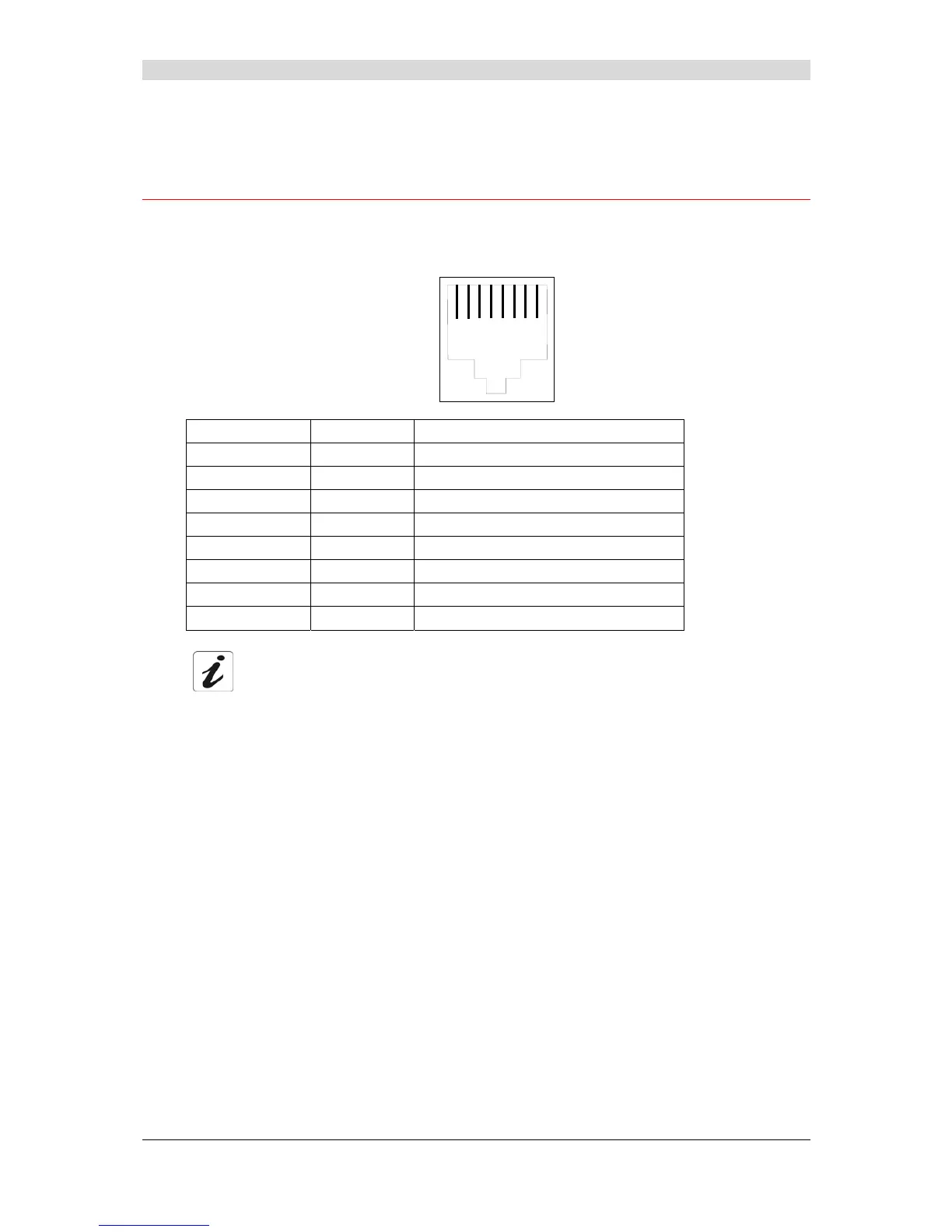

The Ethernet interface is connected to the equipment using a RJ45
fixed connector (8 pins).
12345678
Contact No Signal Meaning
1 TXD+
(+) Emission to terminal
2 TXD- (-) Emission to terminal
3 RXD+ (+) Reception of terminal
4 NC Not connected
5 NC Not connected
6 RXD- (-) Reception of terminal
7 NC Not connected
8 NC Not connected
The Ethernet port is self-detecting. You can use either straight or crossed cables. An
emission or reception signal is detected automatically.
