5.3 ADSL connection status
Refer to subsection 5.5.1 - Status/Summary.
5.4 Display frame

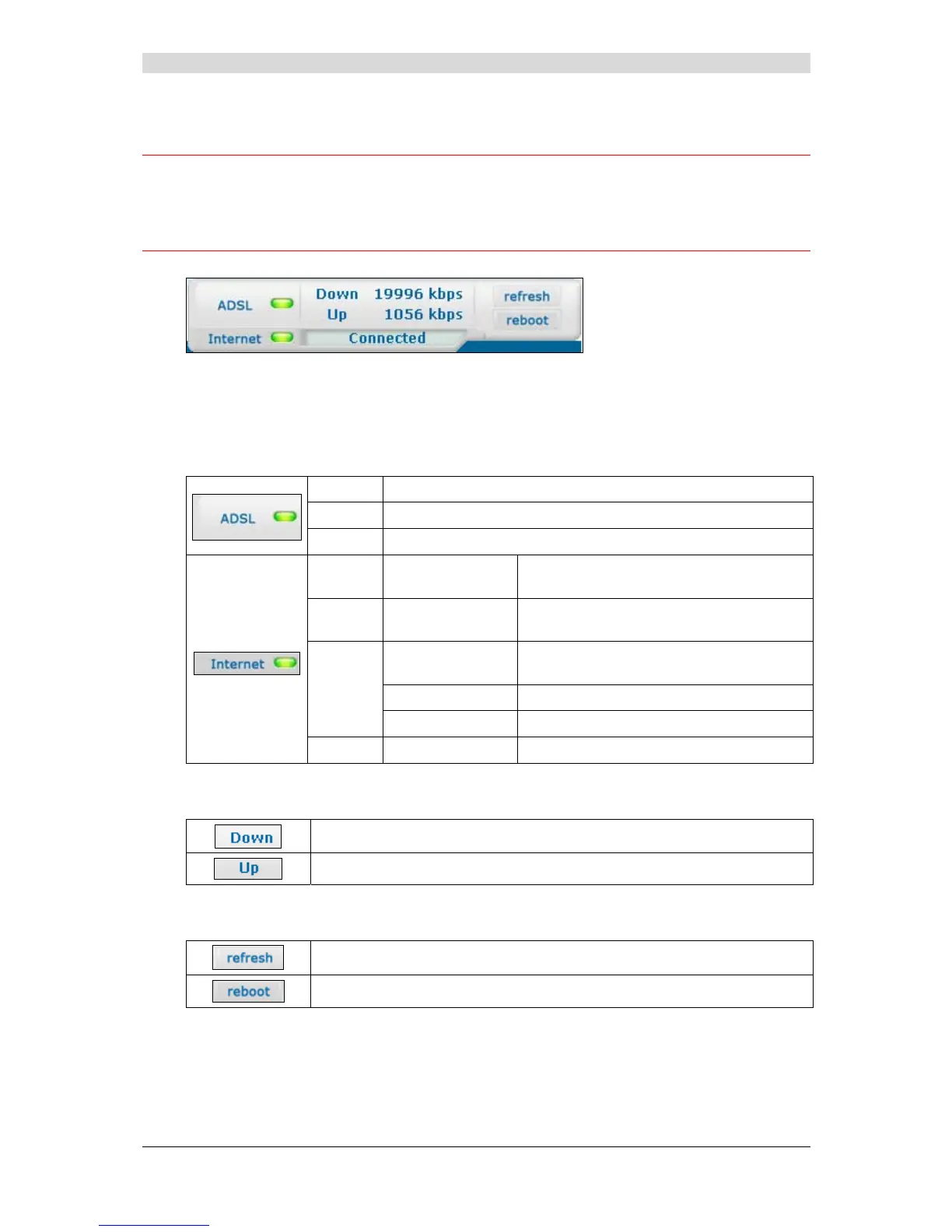

This supervision box is displayed permanently at the top right of each HTTP configurer window.
The objects it contains are explained below.
LEDs
Green
Synchronised ADSL line
Yellow
ADSL line synchronising
Red
ADSL line not connected
Green Connected
Public address (WAN) distributed to the
router.
Yellow Waiting for ISP
ADSL line synchronising or public address
(WAN) not distributed to the router
ADSL Down
Public address (WAN) not distributed to the
router, or ADSL line not synchronised.
Not configured
No VC (Virtual Channel) configured
Off
Router Rebooting
Router restarted
Red Access denied
Wrong Login and/or Password
Transmission rates
Displays the nominal down line transmission rate
Displays the nominal up line transmission rate
Buttons
Allows data displayed on the screen to be refreshed
Allows your router to be started
