I. INSTALLATION

IM TEMI 770E_C 2nd Edition: Sep. 1. 2003. 7/15

4. Wiring

CAUTION

■ Before carrying out wiring, turn off the power to the controller and check that the cables to be

connected are not alive with a tester or the like because there is a possibility of electric shock.

Personnel who have basic electrical knowledge and practical experience must carry out wiring.

■ The controller must be wired directly from circuit breaker output on inside of temperature &

humidity Chamber for avoid damage of controller or temperature & humidity Chamber.

4-1. How to connect wires

4-1-1. Applicable power source cable : Vinyl insulation cable KSC 3304 0.9~2.0 ㎟

4-1-2. Applicable tightening torques

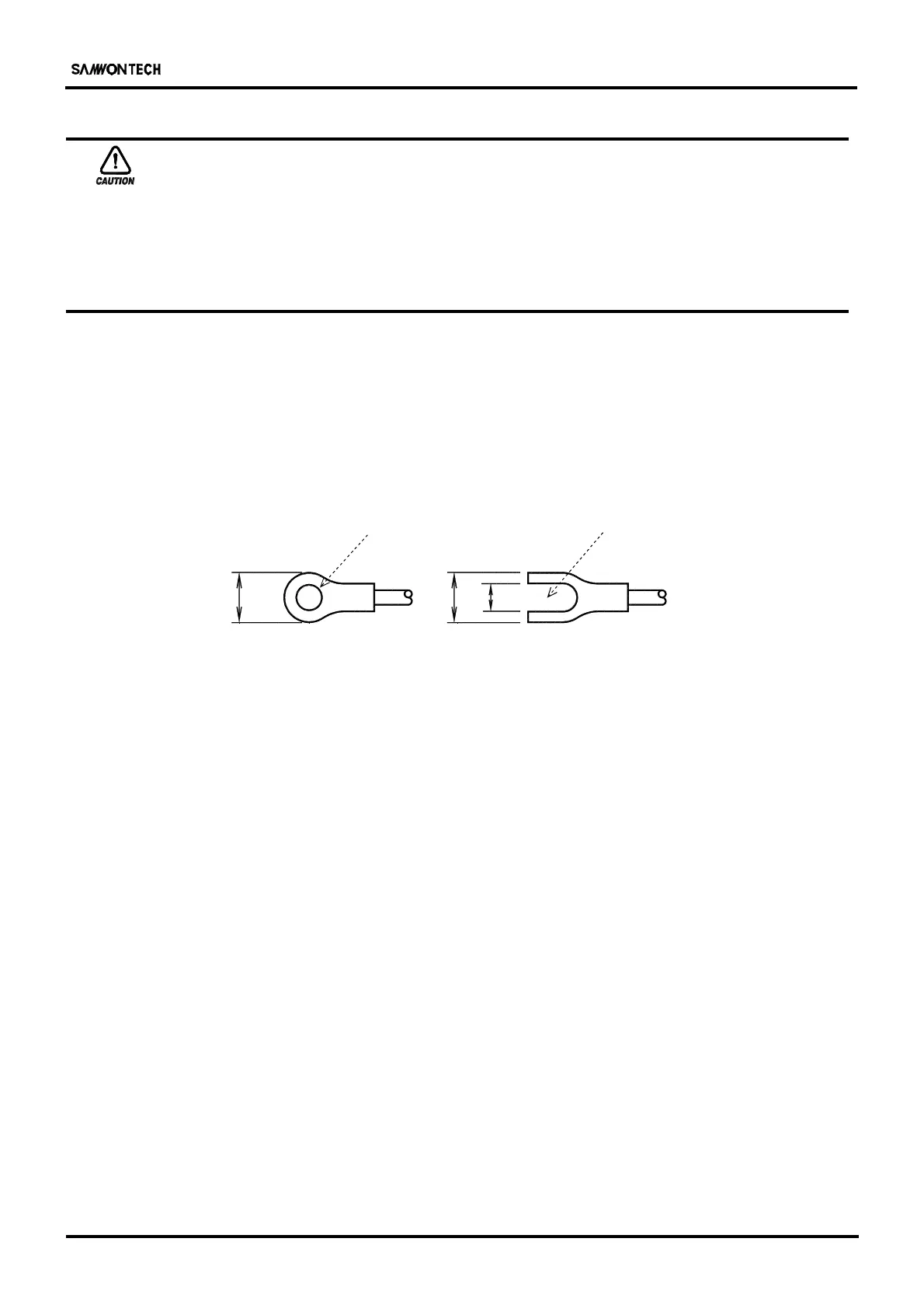

Please use-tightening torque with insulating sleeve for M3.5 screws as shown in the following Figure:

4-1-3. Noise rejections

■ Reason making noise

(1) Relay and relay contact point (2) Solenoid coil, solenoid valve

(3) Power source line (4) Inductive load

(5) Invertors (6) Commentators of motor

(7) Phase-angle SCR (8) Wireless communication

(9) Welder (10) High-tension igniter, etc.

■ Solutions

When wiring, comply with the following to protect the controller from noise sources:

(1) Keep away the cables to the input circuit from the power supply

circuit or the grounding circuit as much as possible.

(2) Using a shielded cable is effective in avoiding noise from electrostatic induction. Connect a

shielded cable to the grounding terminal as required. Avoid two-point grounding.

(3) To avoid noise from electromagnetic induction, it is relatively

effective to mutually twist the input cables at regular short intervals.

5.8mm or

less

5.8mm

or less

Φ3.0mm or more
