I. INSTALLATION
IM TEMI 770E_C 2nd Edition: Sep. 1. 2003. 3/15
2. Package checklist
Check the following when removing the controller from its package. Check the contents of the
package against the Package List to make sure that all accessories are included in the package.
2-1. Model and suffix codes
Check the controller for any apparent physical damage.
Check point : Model number which is located right side of box and left side of controller.
MODEL OPTION DESCRIPTIONS
1 Standard I/O Board(10Points)
2 Additional I/O Board(10Points)
0 RS232C
TEMI 770 –
TEMI 570 –
TEMI 550N –
1 RS485
☞ (Ex) Standard is TEMI 770-10(Standard I/O Board + RS232C)

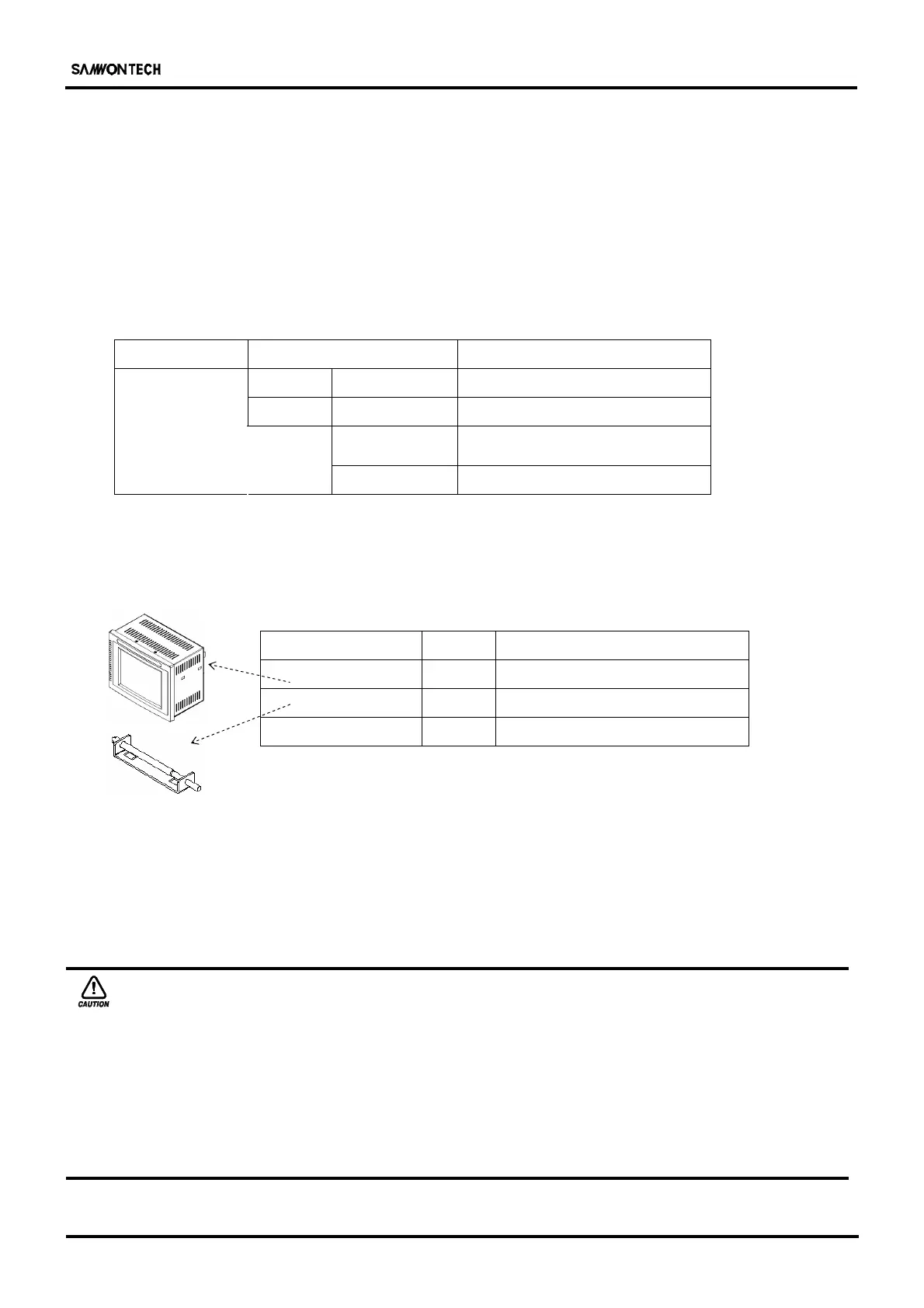

2-2.Components
Check that the following items are provided.
2-3. Missing or damaged items
If any of these items are missing or damaged, please contact your agent
or sales representative for assistance.
2-4. Life time of the parts in the controller
Check the life time for parts and we strongly recommend replace it if the life time finish.
■ FUSE (ST5100UK) SR-5:630mA/250VAC : Semi-permanent.
■ BACKLIGHT (ST5100TL) : 10,000 ~ 15,000 HOUR
■ RELAY (ST3300PJ) JW2SN-DC24V : Around ON/OFF 300,000 times
■ BATTERY (ST5100RX) SBAA02(3.6V) 1/2AA : Around 200,000 Hours
☞ Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type.(SBAA02) Dispose of used battery separately from other waste.
MODEL CODE DESCRIPTIONS
Controller 1 TEMI 770-10, -11, -20 or 21
Brackets 2 ST5300AF (Mount Assy)
Manual 1 This book
To Next Page
