Samwontech TEMI770 User Manual

II.USERS
IM TEMI 770E_C 2nd Edition: Sep. 1. 2003. 27/40
5-6-2. OUTPUT
5-6-2-1.Output
Select OUTPUT at the SETUP page(Figure 5-6-1) for switching the OUTPUT page.

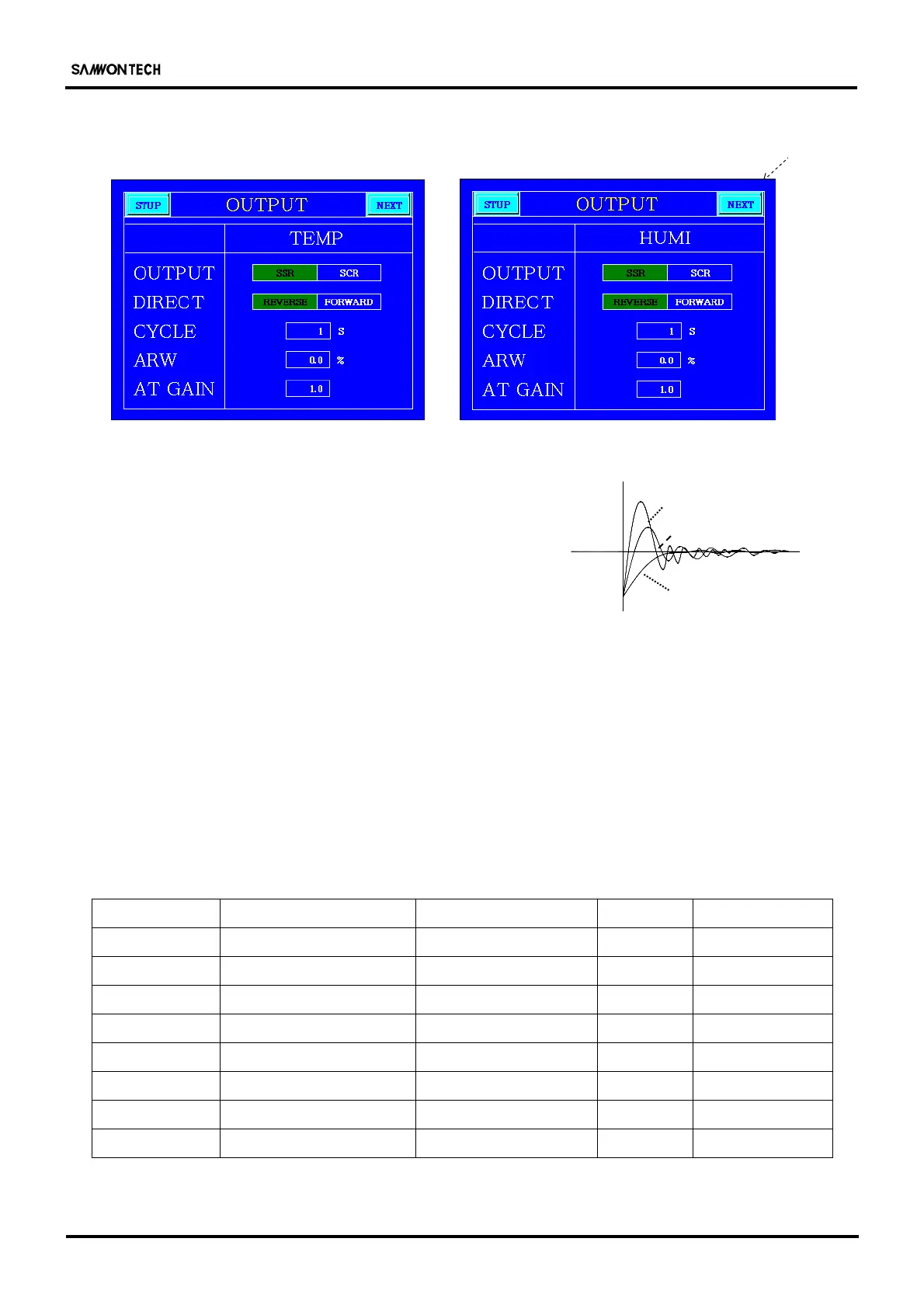

Figure 5-6-5 OUTPUT
① OUTPUT
: Output type.(SSR/SCR)
② DIRECTION
: Select of PID direction (Reverse/Forward)
③ CYCLE
: Set output cycle. It is only for SSR type.
④ ANTI RESET WIND-UP(Excess integration prevention)
: The larger setting, the sooner PID computation (integral computation) stops.
Used when the control output travels up to 100% or down to 0(zero)% and
stays at this point.
⑤ AT GAIN
: Set the gain value when setting PID parameter with
AUTO TUNING.
Decrease the gain value for quick response,
or increase the gain value for stable PID value.(See Figure 5-6-5-1)
(Table 5-9) OUTPUT PARAMETER
Name Function Valid Range Unit Default Value
T.DIRECT TEMP DIRECT REVERSE, FORWARD ABS REVERSE
H.DIRECT HUMI DIRECT REVERSE, FORWARD ABS REVERSE
T.OUTPUT TEMP OUTPUT SSR, SCR ABS SSR
H.OUTPUT HUMI OUTPUT SSR, SCR ABS SSR
T.CYCLE TEMP CYCLE 1 ~ 1,000 ABS 1
H.CYCLE HUMI CYCLE 1 ~ 1,000 ABS 1
ARW ANTI RESET WINDUP 0(AUTO), 50.0 ~ 200.0 ABS 0(AUTO)
AT GAIN AUTO TUNING GAIN 0.1 ~ 10.0 ABS 1.0
Gain < 1
Gain = 1
Gain > 1
Figure 5-6-5-1
Figure 5-6-6 RET
