2. Input Setpoint
All of the Setpoint data & test name on this controller is set-up by selecting Setpoint button. Setpoint is setting
up at the Setpoint page (Figure 1-1) by selecting Setpoint button.
☞ See 5-4-6.TEST NAME for how to input a test name.
2-1. Function of Setpoint key

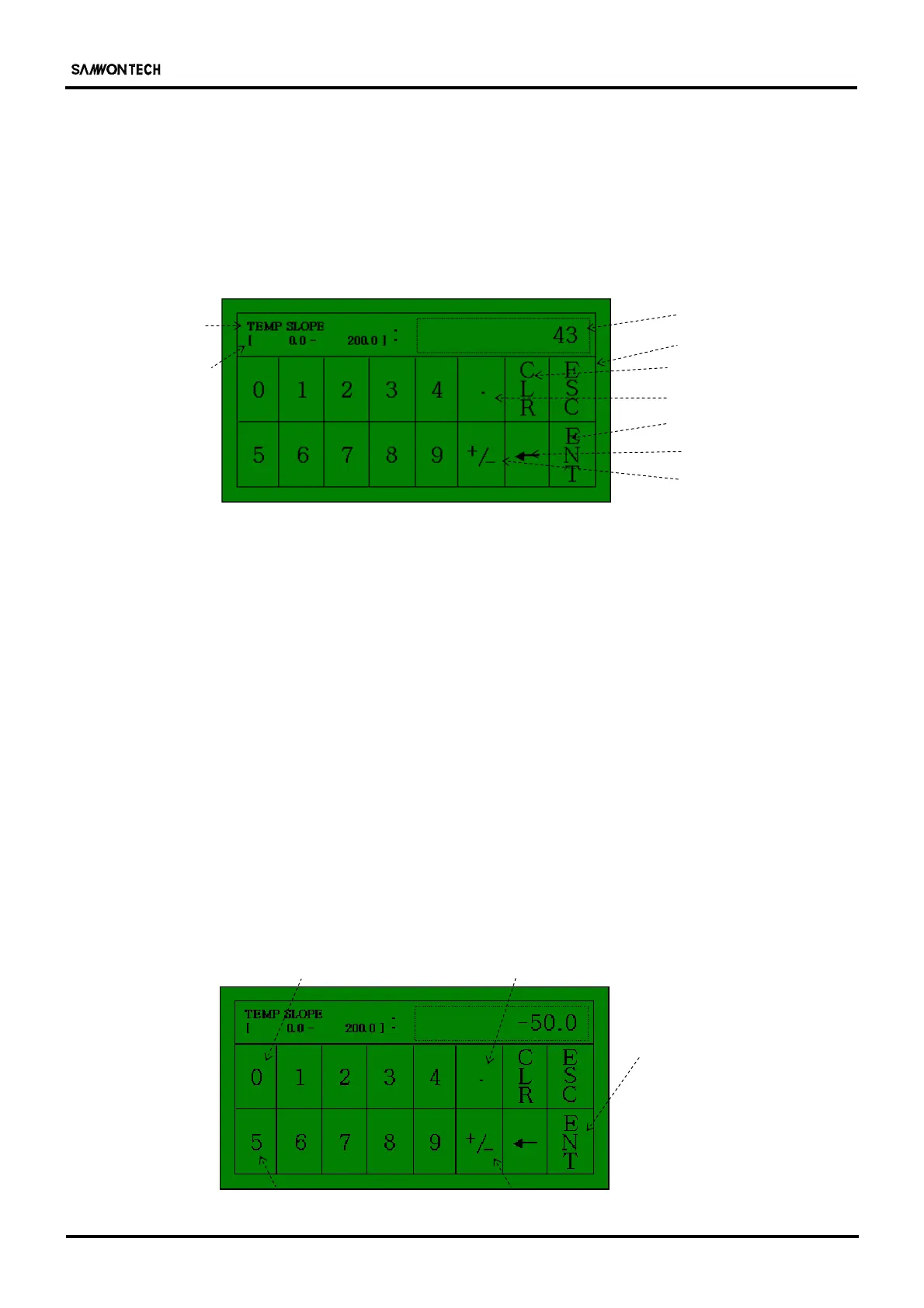

Figure 2-1
① Parameter.
② Valid data range.
③ -LIMIT ERR display when user input invalid Setpoint.
④ Cancel input Setpoint.
⑤ Clear input data.
⑥ Decimal point.
⑦ Save input data and go to main page.
⑧ Modify the input data, delete one by one.
⑨ Input + or -.
2-2. Parameter
Following figure shown how to change Setpoint 0.0 to -50.0.
1. Select Setpoint button, user want.
2. Input the value and ENT key.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
①
②
③⑤ ④
⑥
