5-6-5. DO CONFIG
Select PID at the SETUP page(Figure 5-6-1) for switching the PID page.

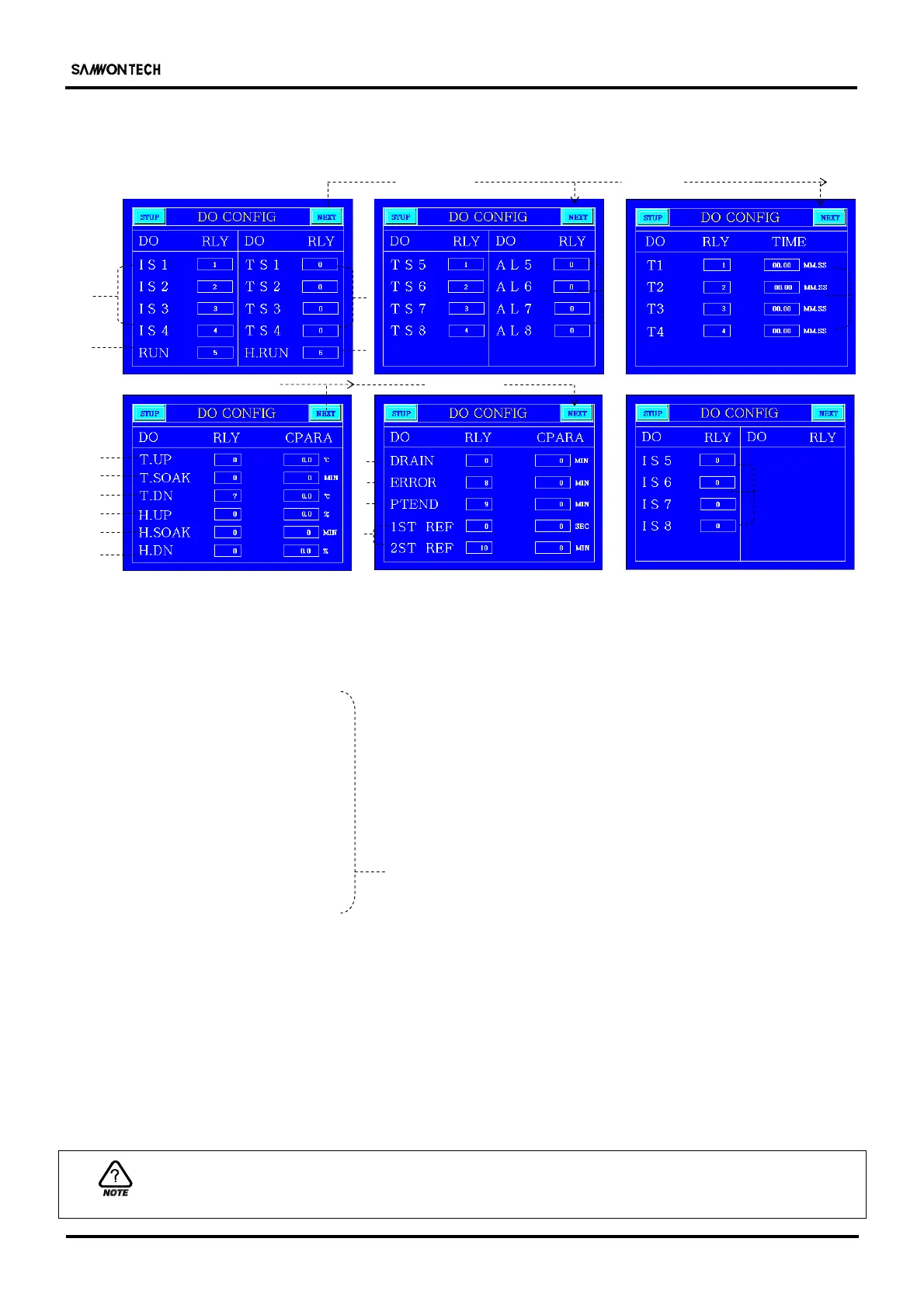

Figure 5-6-12 DO CONFIG
①
INNER SIGNAL(IS) : Set the RELAY NO.(1~10 or 20) for IS(Inner Signal).
②
TIME SIGNAL(TS) : Set the RELAY NO.(1~10 or 20) for TS(Time Signal).
③
RUN (Temperature) Output
④
H.RUN (Humidity) Output
⑤
AL 1~AL 4 (Alarm)
⑥
T1 ~ T4 (On/Off System) – T4 is ON after delay time which is set on T4 later T3 turn ON.
T1, T2, T3 are able to setting the each delay time
⑦ T.UP (Temp. up zone)
⑧
T.SOAK (Temp. soak zone)
⑨
T.DN (Temp. down zone)
⑩
H.UP (Humi. up zone)
⑪
H.SOAK (Humi. soak zone)
⑫
H.DN (Humi down zone)
⑬
DRAIN : On humidity is not using, signal output during the set time.
⑭
ERROR : On error for DI 2~DI 8, error signal output during the set time.
⑮
PTEND : On PROGRAM end, signal output during the set time.
○
16
1ST REF & 2ND REF : End running IS 1, signal output after the set time.
It is for running 1
st
or 2
nd
refrigerator.
CAUTION ON TEH SET DO CONFIG
If the RELAY are duplicate set, the RELAY is working of “OR” condition.
It is display present state and set the RELAY No.(1~10 or 20)
for using.
