II.USERS
IM TEMI 770E_C 2nd Edition: Sep. 1. 2003. 39/40
6. TROUBLE
If the system, which this controller (TEMI 770) adapted, has troubles (if you used DI2~DI8)
the page appear also display WARN at the item state as below.
Disappear this error if you select CLEAR button but it is not a perfect solve the error.
You must solve the error before reusing the controller, otherwise you are reach error again.

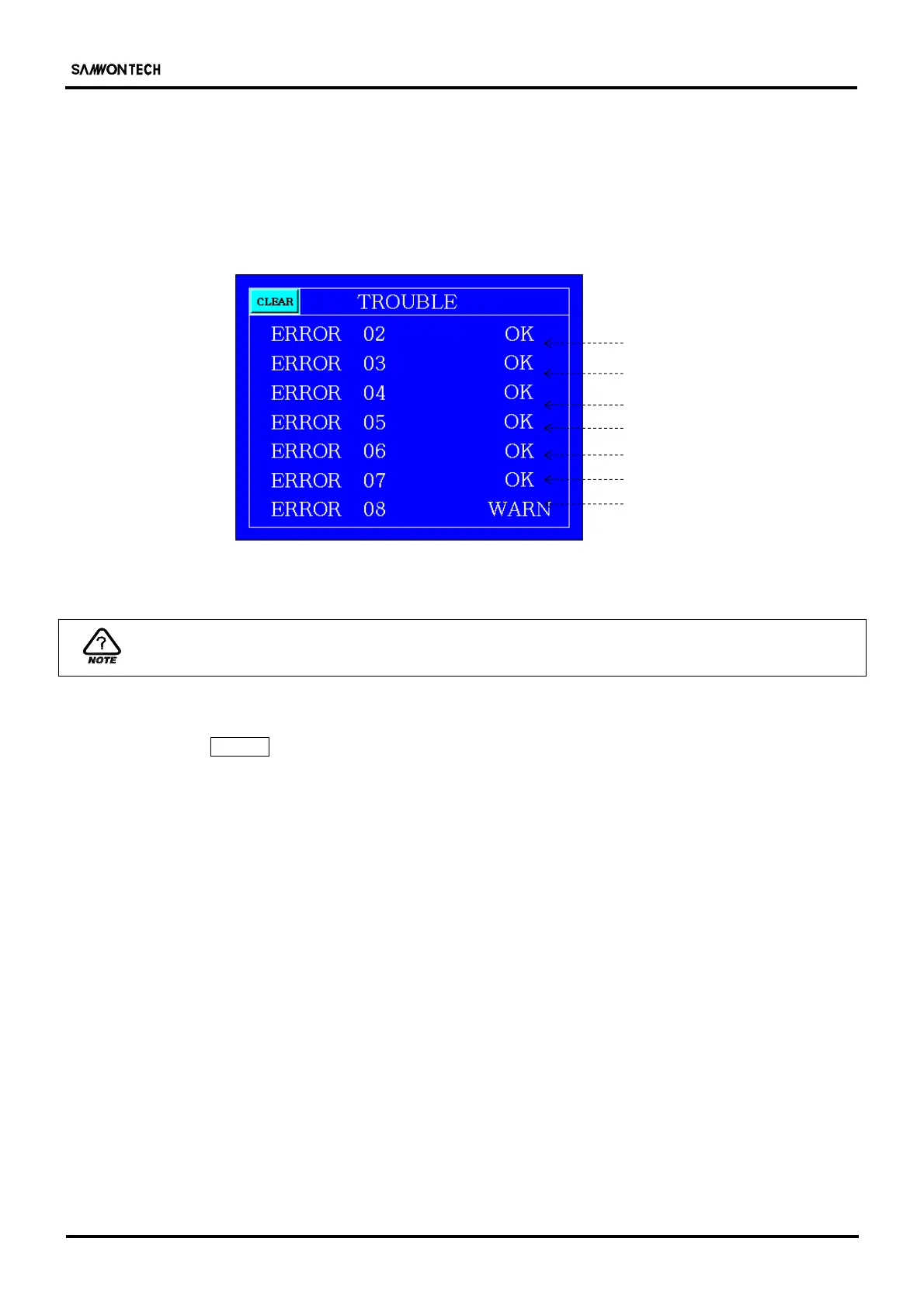

Figure 5-6-16 TROUBLE
See 5-4-6 TEST NAME for changing TROUBLE (DI ERROR) NAME.
☞ Display W-OK when solved the error after error occur.
DI2 : OFF
DI4 : OFF
DI5 : OFF
DI6 : OFF
DI7 : OFF
DI8 : ON - TROUBLE
DI3 : OFF
