5-3. GRAPH
Select GRAPH at the Main page.(Figure 3-4)

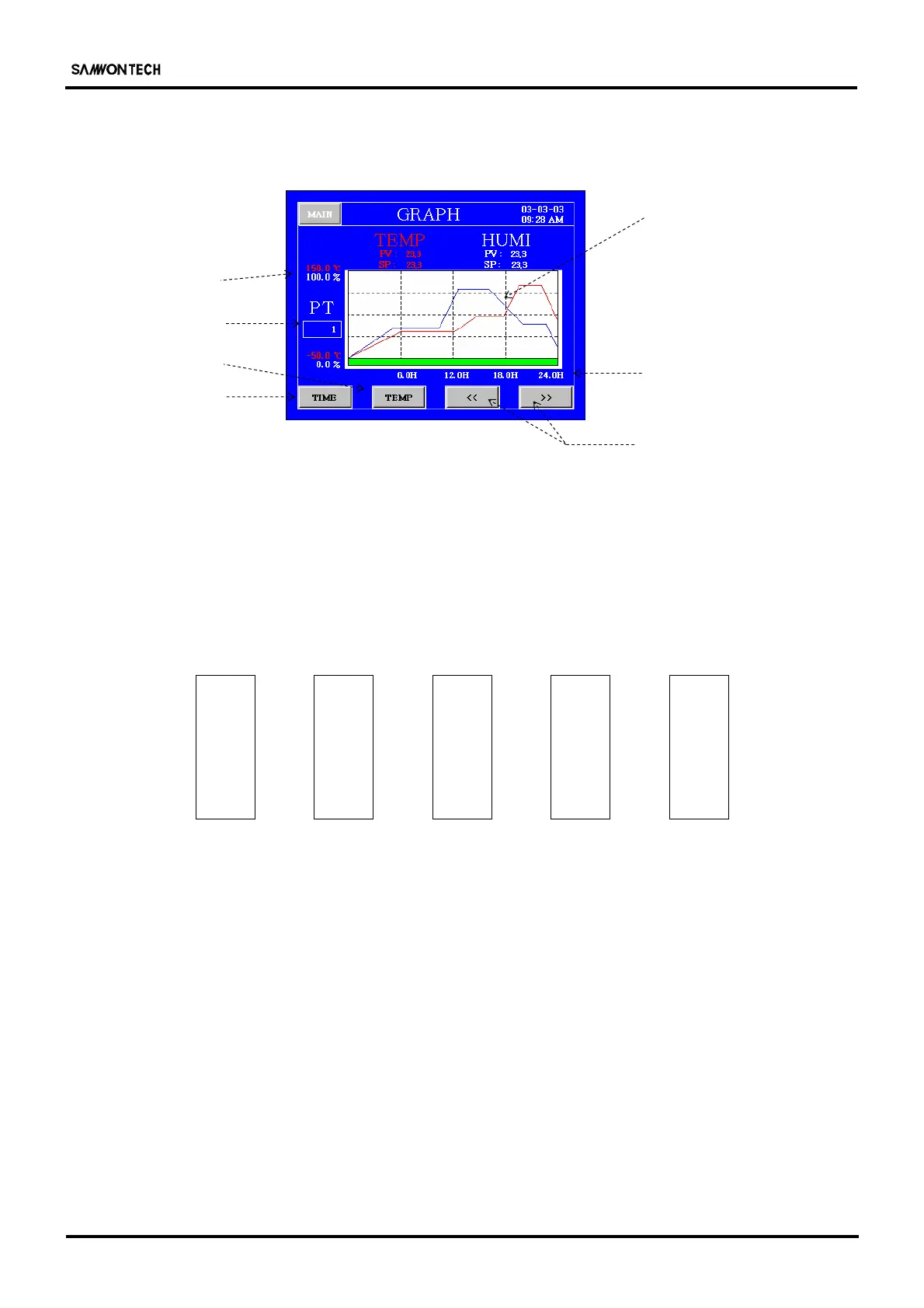

Figure 5-3-1 GRAPH
① PATTERN NO
: Input the pattern, user want see.
② TEMPERATURE
: Switch scale to Humi to temp(④Temp/Humi scale) and switch the page.
③ TIME
: Switch the time scale to as below.
0 H 0 H
1 H 3 H
2 H 6 H
3 H
4 H
Î
9 H
12 H
Î
0 H
6 H
12 H
18 H
24 H
Î
0 H
12 H
24 H
36 H
48 H
Î
0 H
24 H
48 H
72 H
96 H
Figure 5-3-2 Time scale
④ TEMP/HUMI
: Temp/Humi scale is switching by selecting TEMP button(②).
⑤ Time scale
⑥ Program pattern
⑦ Page up / down
①
②
③
④
⑤
⑥
⑦
