4-2. PROGRAM RUN

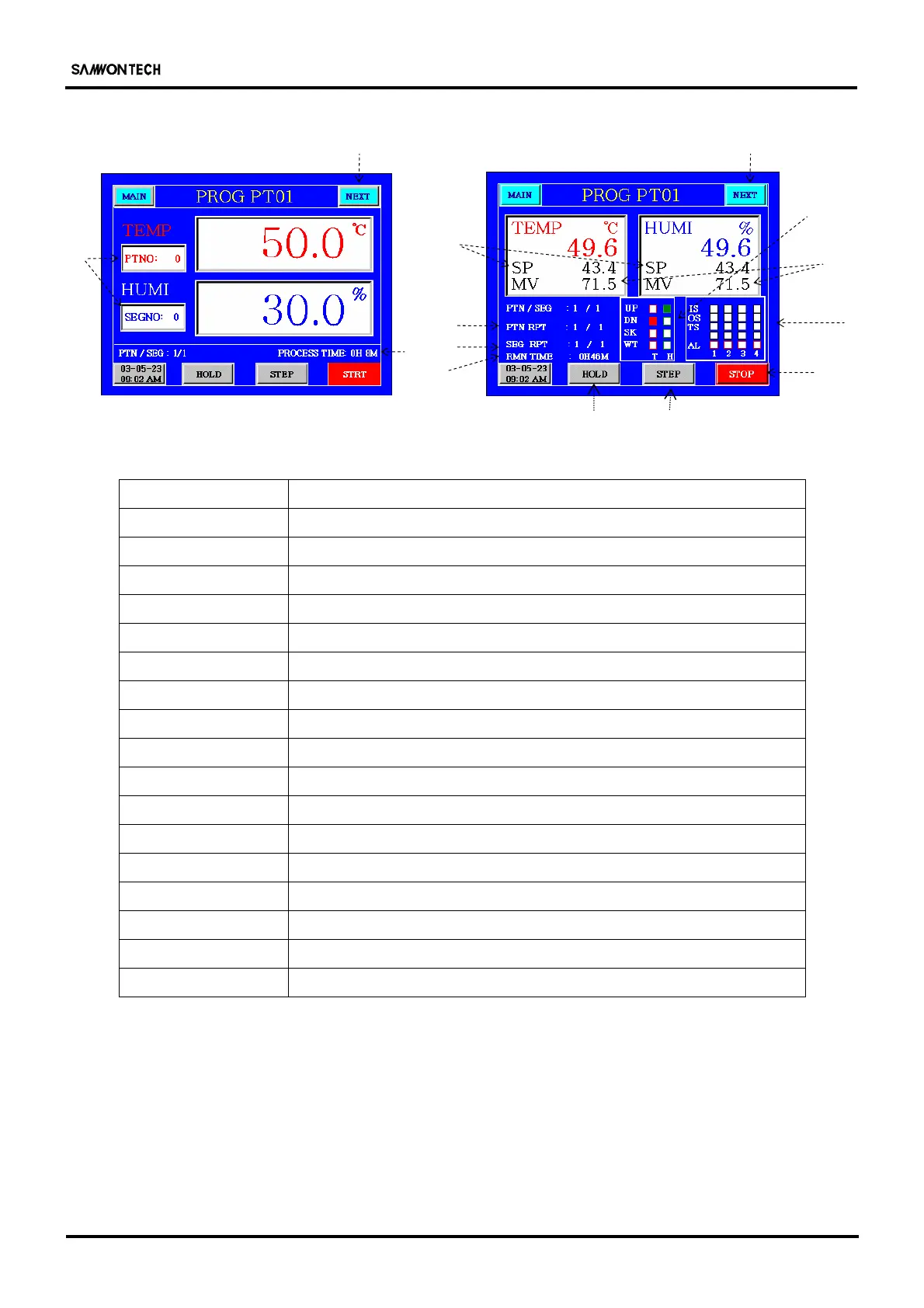

Figure 4-2 PROGRAM RUN (SP) Figure 4-3 PROGRAM RUN(SP,MV)
① PTN/SEG
: Pattern & Segment number of present running.
② Remain time
: Remain time of present running segment.
③ Stop
: Stop the running and change to the program stop page.(Figure4-1)
④ Up
: Display up state.(Temperature / Humidity)
DN : Display down state.(Temperature / Humidity)
SK : Display soak state.(Temperature / Humidity)
WT : Display wait state.(Temperature / Humidity)
⑤ Step
: Stop the present segment and move to the run next segment.
⑥ Hold
: Hold on/off present SP.(Setpoint)
⑦ SP
: Display present temperature and humidity SP.(Setpoint)
⑧ PTN RPT
: State of pattern repeat.
⑨ SEG RPT
: State of segment repeat.
⑩ MV
: Display present temperature and humidity MV.( Manipulate value)
⑪ IS
: State of present IS.(Inner Signal)
OS : State of present OS.(ON/OFF Signal)
TS : State of present TS.(Time Signal)
AL : State of present AL.(Alram Signal)
⑫ PROCESS TIME
: Total processing time.
⑪
⑩
①
Figure 4-2
④
⑤ ⑥
⑦
②
③
⑧
⑨
Figure 4-3
⑫
