5-6-7. COMM

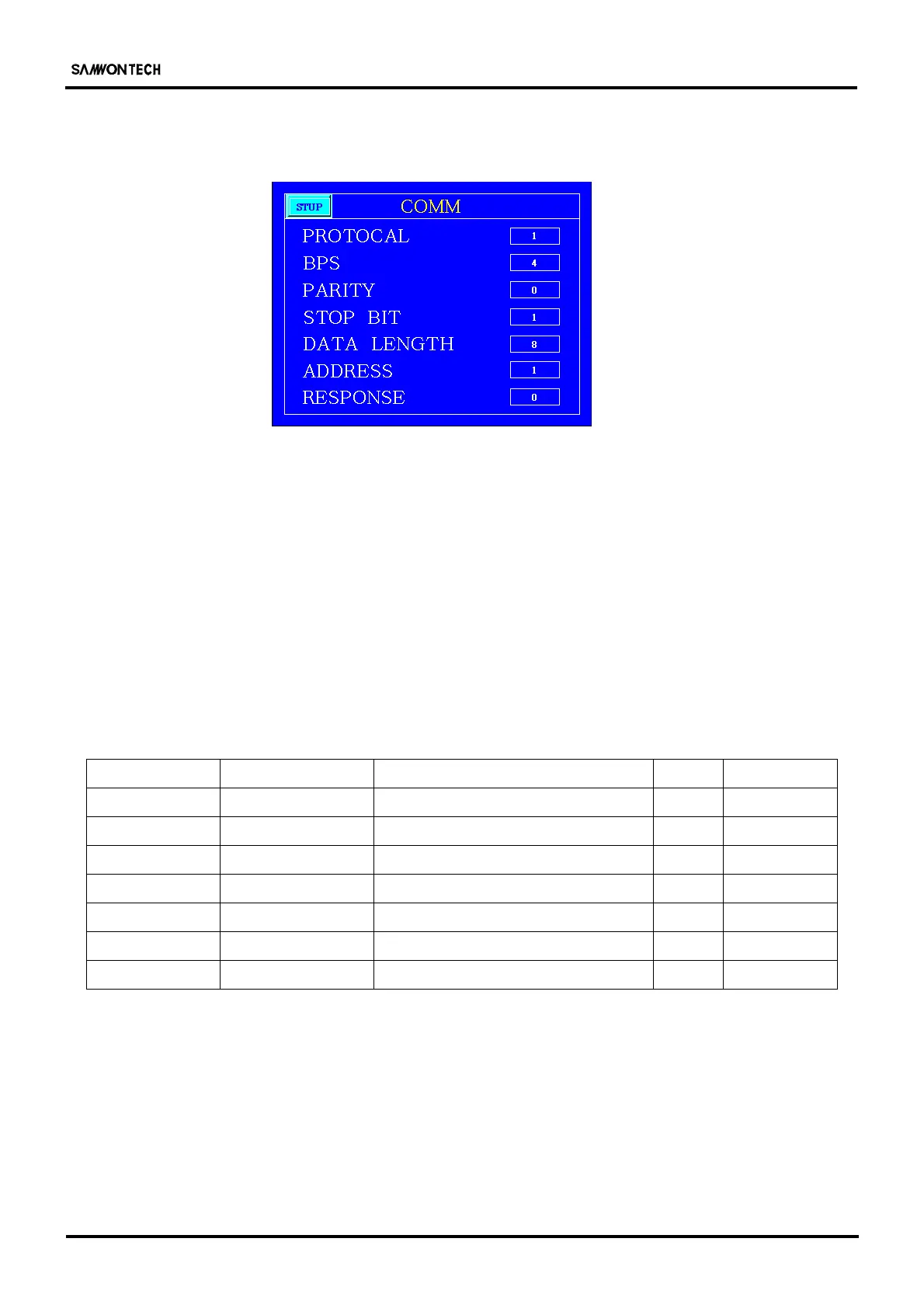

Select COMM at the SETUP page(Figure 5-6-1) for switching the COMM page.
Figure 5-6-14 COMM
① PROTOCOL
② BPS:BIT PER SEC
③ PARITY
④ STOP BIT
⑤ DATA LENGTH
⑥ ADDRESS
⑦ RESPONSE
(Table5-16) COMM PARAMETER
Name Function Valid Range Unit Default Value
PROTOCOL PROTOCOL 0 (PC LINK), 1 (PC LINK WITH SUM) ABS 1
BPS BAUND RATE 0 (600), ----, 4 (9600) ABS 4
PARITY PARITY 0 (NONE), 1 (EVEN), ODD(2) ABS 0
STOP BIT STOP BIT 1, 2 ABS 1
DATA LENGTH DATA LENGTH 7, 8 ABS 8
ADDRESS ADDRESS 1 ~ 99(Max 31units) ABS 1
RESPONSE RESPONSE TIME 0.0 ~ 100.0 ABS 0
