5-6-3. IS(Inner Signal)
Select IS at the SETUP page(Figure 5-6-1) for switching the IS page.

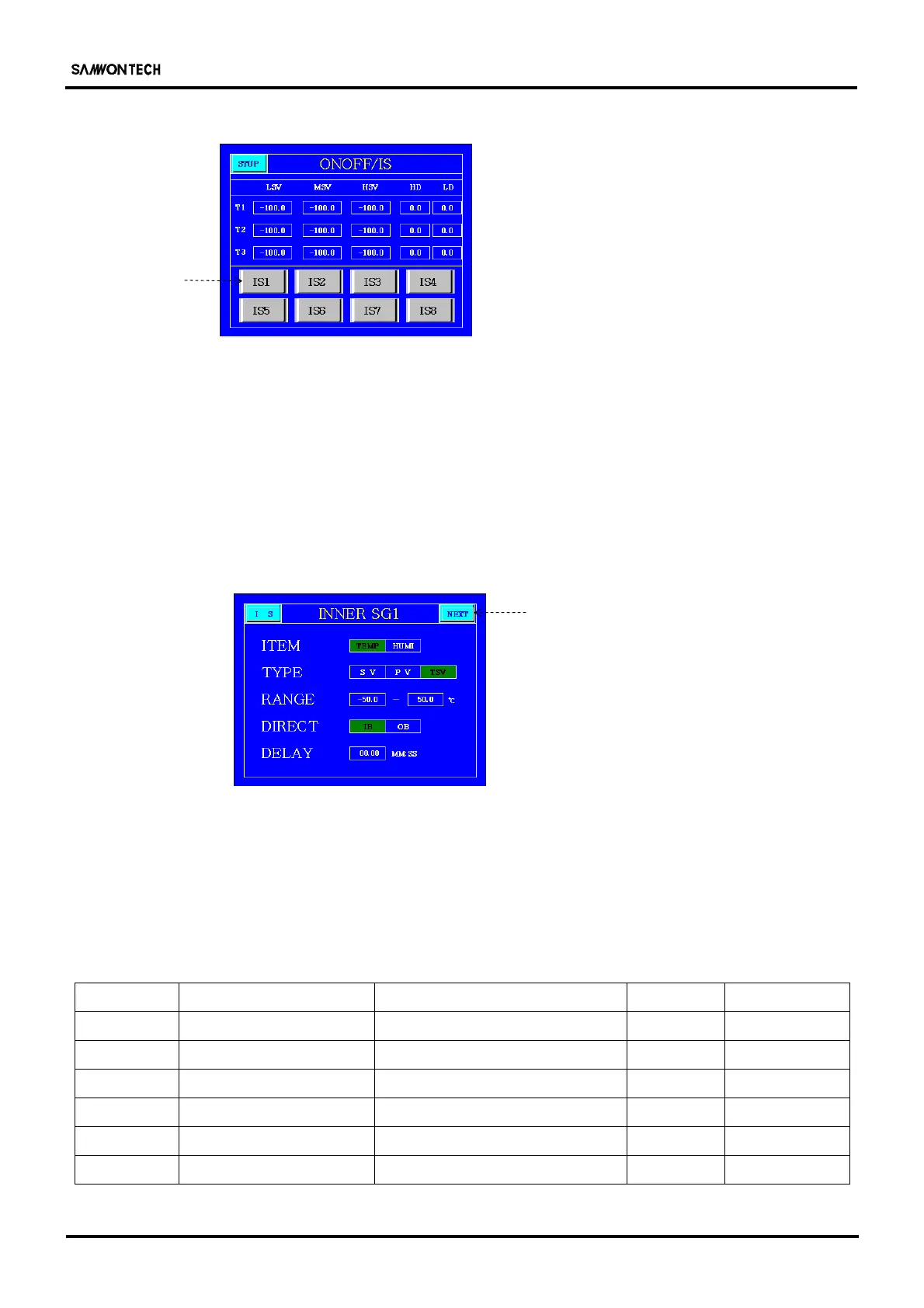

Figure 5-6-7 IS
▶ ON/OFF system set
① LSV : Low Set Value. (-50.0 ~ 50.1)
② MSV: Middle Set Value. (-49.9 ~ -50.1)
③ HSV: High Set Value. (-49.9 ~ 1500.0)
④ HD: High Limit Deviation Value(0.0 ~ 20.0)
⑤ LD: Low Limit Deviation Value(0.0 ~ 20.0)
▶ IS address : Select IS mode address
Figure 5-6-8 IS1 setup
① IS item : Select item (Temp/Humi)
② IS type : Select type(SV/PV/TSV) ☞ IS1 is connecting 1
st
REF and 2
nd
REF.
③ IS RANGE : Set range
④ DIRECT : Output direct. IB(OB) -> In(Out) side of range)
⑤ DELAY : IS output delay time, set the time.
(Table 5-10) IS PARAMETER
Name Function Valid Range Unit Default Value
ITEM ITEM TEMP, HUMI ABS TEMP
TYPE TYPE SV(=SP), PV, TSV(=TSP) ABS SV(=SP)
H.IS IS RANGE HIGH T.EU(0~100%)/H.EU(0~100%) ABS T.H.EU(100%)
L.IS IS RANGE LOW T.EU(0~100%)/H.EU(0~100%) ABS T.H.EU(0%)
DIRECT DIRECT IB, OB ABS IB
DELAY IS DELAY TIME 00:00 ~ 99:59 ABS 0
Figure 5-6-7
IS2…IS8
