5-6-1. INPUT
Select INPUT at the SETUP page(Figure 5-6-1) for switching the INPUT page.
■ INPUT_TEMP

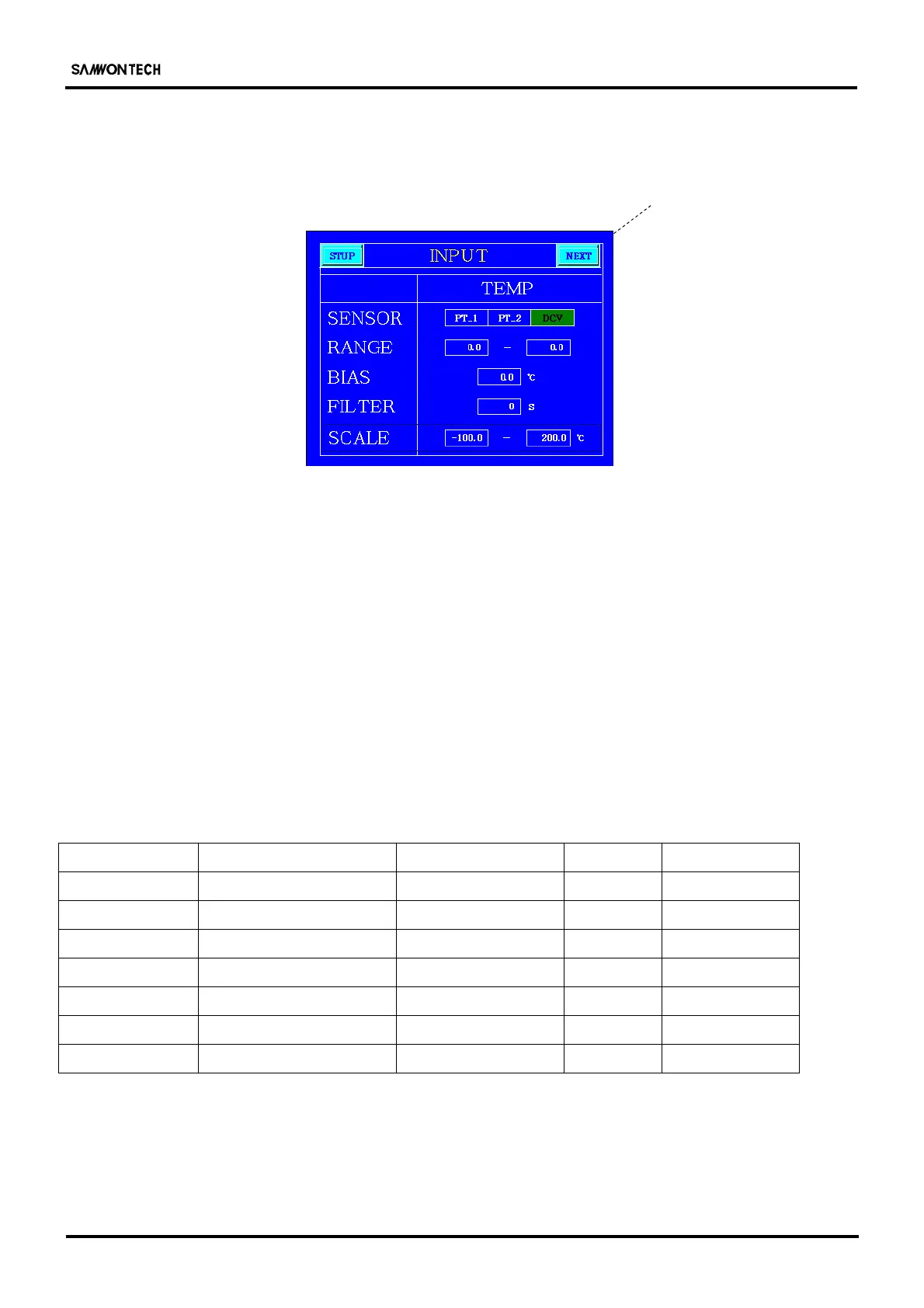

Figure 5-6-2 TEMP INPUT
① SENSOR
: Select kinds of temp sensor. (PT_1, PT_2., DCV)
② TEMP RANGE
: Set the range of Temperature.
③ TEMP BIAS
: Bias about the temperature.
④ TEMP FILTER
: To remove the noise from the high-frequency of noise in the temp data.
⑤ SCALE (DCV ONLY)
: As DCV sensor type, set the scale for range.
(Table 5-7) INPUT_TEMP PARAMETER
Name Function Valid Range Unit Default Value
T.SENSOR TEMP SENSOR PT_1, PT_2, DCV ABS PT_1
T.RH TEMP RANGE HIGH T.EU(0 ~ 100%) T.EU T.EU(100%)
T.RL TEMP RANGE LOW T.EU(0 ~ 100%) T.EU T.EU(0)
T.BIAS TEMP BIAS T.EUS(-100 ~ 100%) T.EU T.EUS(0%)
T.FILTER TEMP FILTER 0 ~ 120S ABS 0(S)
H.SCALE TEMP HIGH SCALE -99.9 ~ 200.0
℃ -100.0 (℃)
L.SCALE TEMP LOW SCALE -100.0 ~ 199.9
℃ 200.0(℃)
