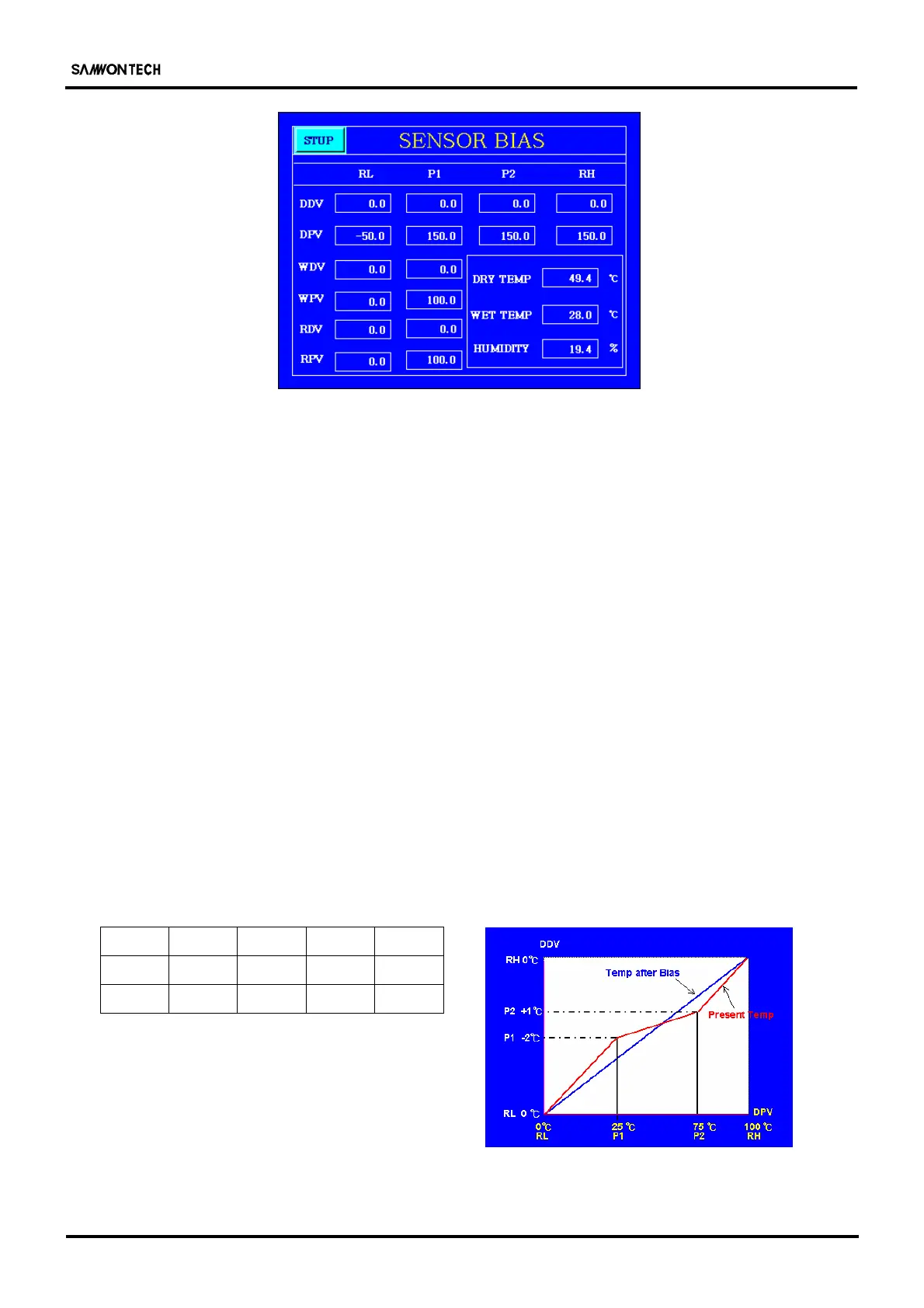

Figure 5-6-4-2. SENSOR BIAS
① DDV: The Bias parameter of dry probe temperature.
② DPV: The point value for Bias of dry probe temperature.
③ WDV: The Bias parameter of wet probe temperature.
④ WPV: The point value for Bias of wet probe temperature.
⑤ RDV: The Bias parameter of relative humidity.
⑥ RPV: The point value for Bias of relative humidity.
⑦ RL: Bias point range low.
⑧ P1: Bias point 1.
⑨ P2: Bias point 2.
⑩ RH: Bias point range high.
⑪ DRY TEMP: Dry probe temperature.
⑫ WET TEMP: Wet probe temperature.
⑬ HUMIDITY: Relative humidity.
☞ Ex) How to set the Sensor Bias
The effective temperature 0℃ ~ 100℃ if Deviation is +2℃ for 25℃, -1℃ for 75℃
Set the parameter as blows;
RL P1 P2 RH
DDV
0℃ -2℃ 1℃ 0℃
DPV
0℃ 25℃ 75℃ 100℃
Figure 5-6-4-3. SENSOR BIAS GRAPH
