IM TEMI 770E_C 2nd Edition: Sep. 1. 2003. 25/40
■ INPUT_ADJUST

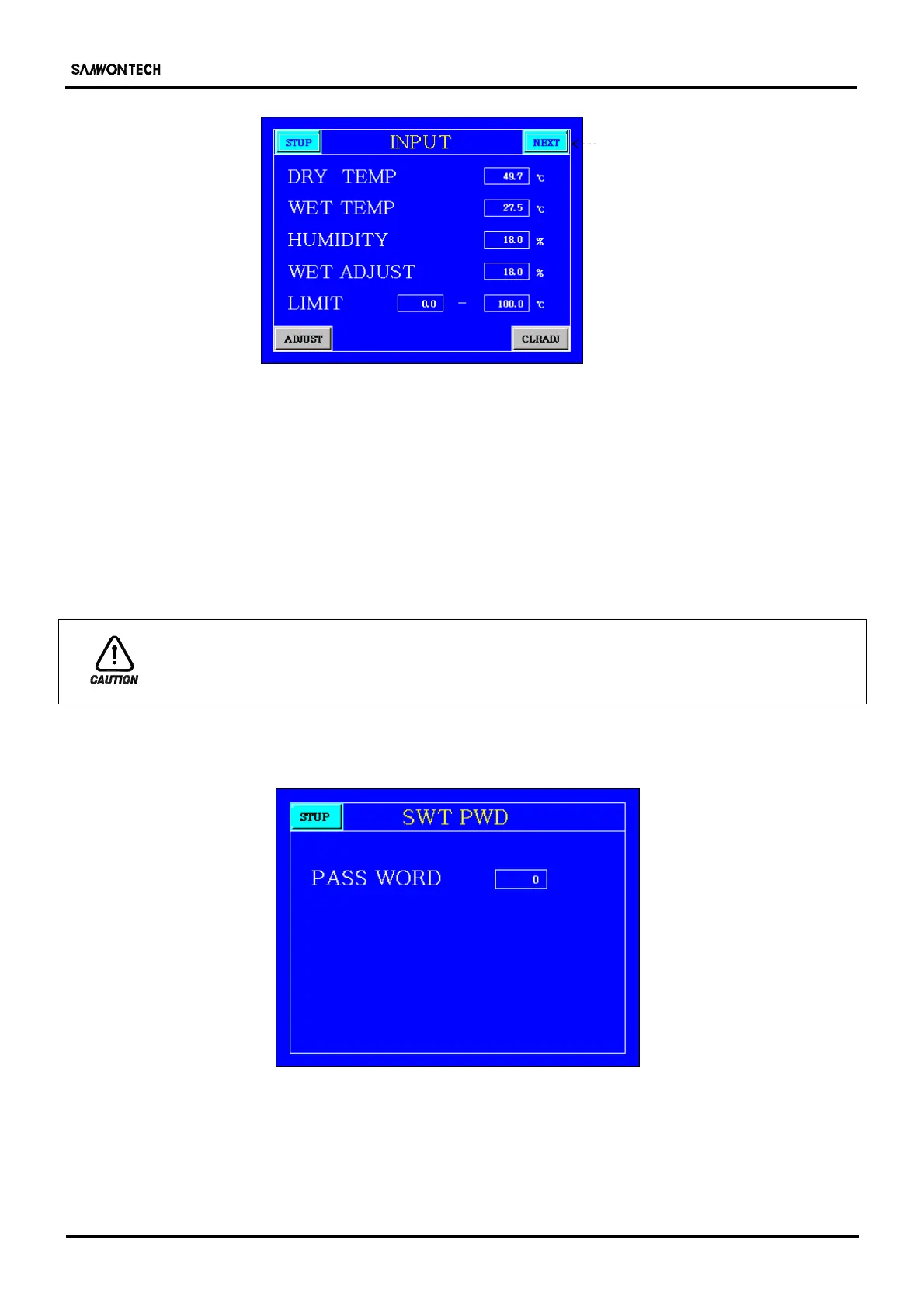

Figure 5-6-4. ADJUST INPUT
① DRY TEMP : Temp of dry probe.
② WET TEMP : Temp of wet probe.
③ HUMIDITY : Relative humidity.
④ WET ADJUST : Adjust temp of wet part.
⑤ LIMIT : Set the dry part range for the relative humi.(Target:DSV)
⑥ ADJUST : Using when the temp of dry/wet part are RTD TYPE(Pt/JPt).
Temp of dry part and wet part are being same temp as select this button.
⑦ CLRADJ : Clear ADJUST function.
CAUTION of using ADJUST
This function is doing for bias error of dry/wet sensor, this function must
be use before installation of gauze.
■ SENSOR BIAS
Figure 5-6-4-1. SWT PWD
Figure 5-6-2 TEMP INPUT
