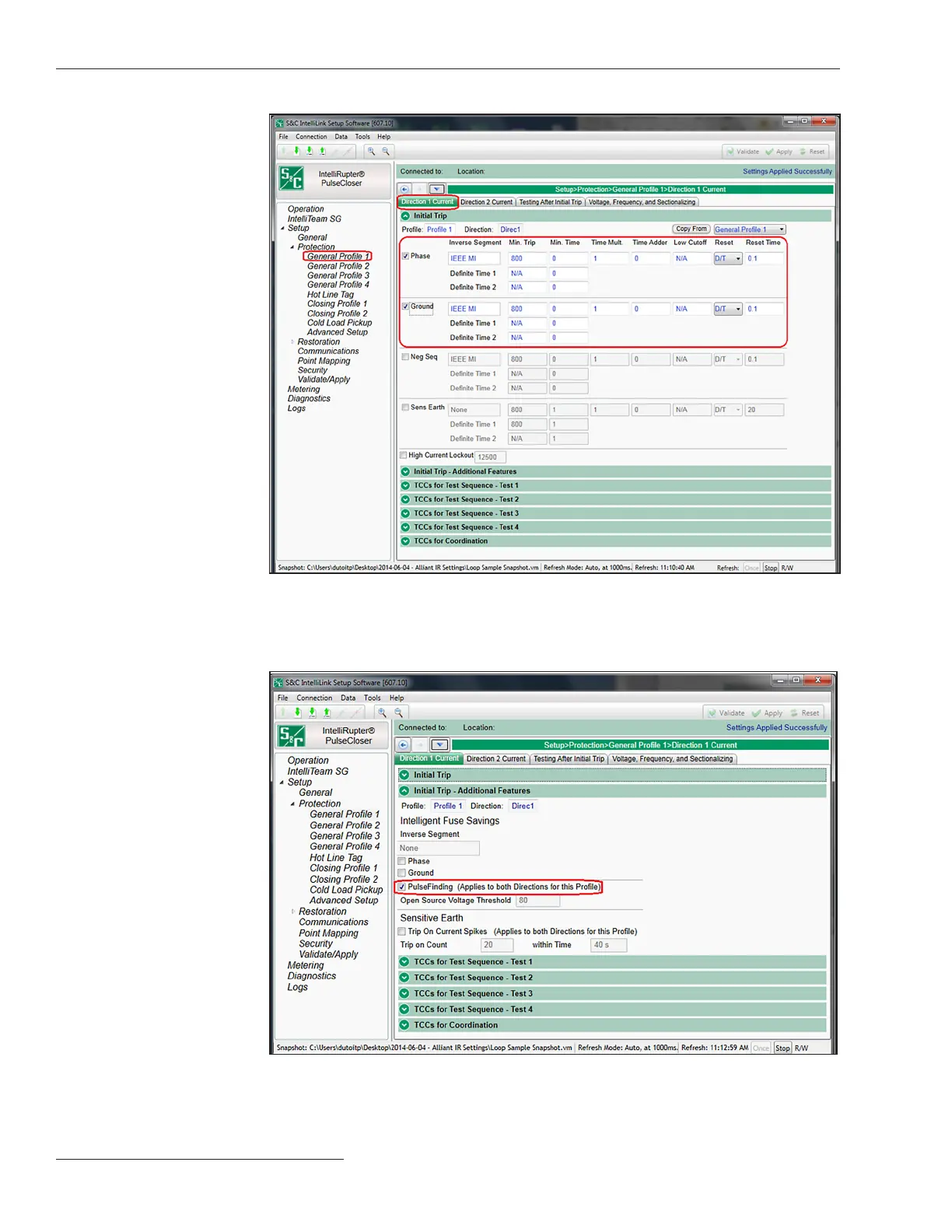

Figure 70. The Initial Trip curve configuration section on the Setup>Protection>General Profile 1>
Direction 1>Current screen.
STEP 6. Enable the PulseFinding technique so it can assist in cases where the devices
may not be fully coordinated. See Figure 71.
Figure 71. The PulseFinding technique setpoint on the Setup>Protection>General Profile 1>
Direction 1>Current>Initial Trip - Additional Features screen.
128 S&C Instruction Sheet 766-530
