Sanyo PLC-XU301A - Screen Size Adjustment

43
Video Input
Thisprojectorhasthepicturescreenresizefunction,whichenablesyoutocustomizetheimagesize.
Normal
Screen Size Adjustment
Screen Menu
1
2
Providetheimageatthe4:3normalvideoaspectratio.
Custom
Note:
 •Whennosignalisdetected,Normalisset
automaticallyandtheAspectdialogbox
disappears.
 •TheadjustablerangeforScale H/Vand
Position H/Vislimiteddependingonthe
inputsignal.
 •Widecannotbeoperatedwhen720p,
1035ior1080iisselectedintheAV
SystemMenu(p.39).
Wide
Providetheimageatthe16:9widescreenratio.

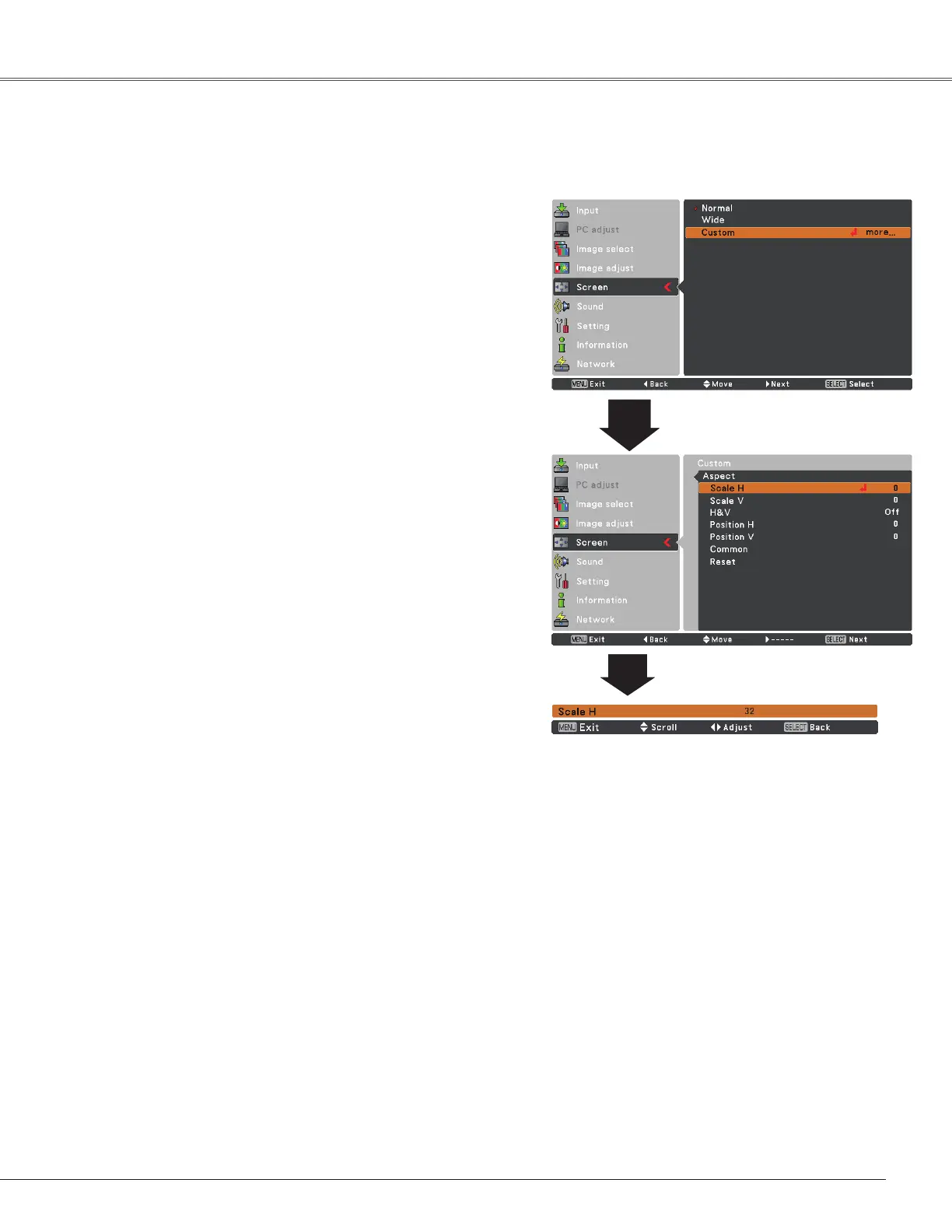

PresstheMENUbuttontodisplaytheOn-Screen
Menu.UsethePoint▲▼buttonstoselectScreenand
thenpressthePoint►ortheSELECTbutton.
UsethePoint▲▼buttonsselectthedesireditemand
thenpresstheSELECTbutton.
Adjust the screenscale and position manually with this
function.
PressthePoint
►
buttonatCustomandtheCustomis
displayedonthescreen,youcanusethePoint▲▼buttons
tochoosetheitemyouwanttoadjust.
 Scale H/V.......... AdjusttheHorizontal/Verticalscreen
scale.
 H&V................... WhensettoOn,theaspectratiois
fixed.TheScale Vappearsdimmedand
becomesunavailable.AdjustScale H,
thenthescreenscaleisautomatically
modifiedbasedontheaspectratio.
 Position H/V..... Adjust the Horizontal/Vertical screen
position.
 Common........... Savetheadjustedscaleorpositiontoall
theinputs.PresstheSELECTbuttonat
Commontodisplayaconfirmationbox.
Tosavethescaleorposition,pressthe
SELECTbuttonatYes.WhenCustom
isselected,thesavedscaleorpositionis
used.
 Reset................. Resetthealladjustedvalues.Press
theSELECTbuttonatResettodisplay
aconfirmationbox.Toreset,pressthe
SELECTbuttonatYes.
