Chapter 2 Installation
Mechanical Installation
10
Series PM172 Powermeters
Chapter 2
Installation
Mechanical Installation
Panel Mounting

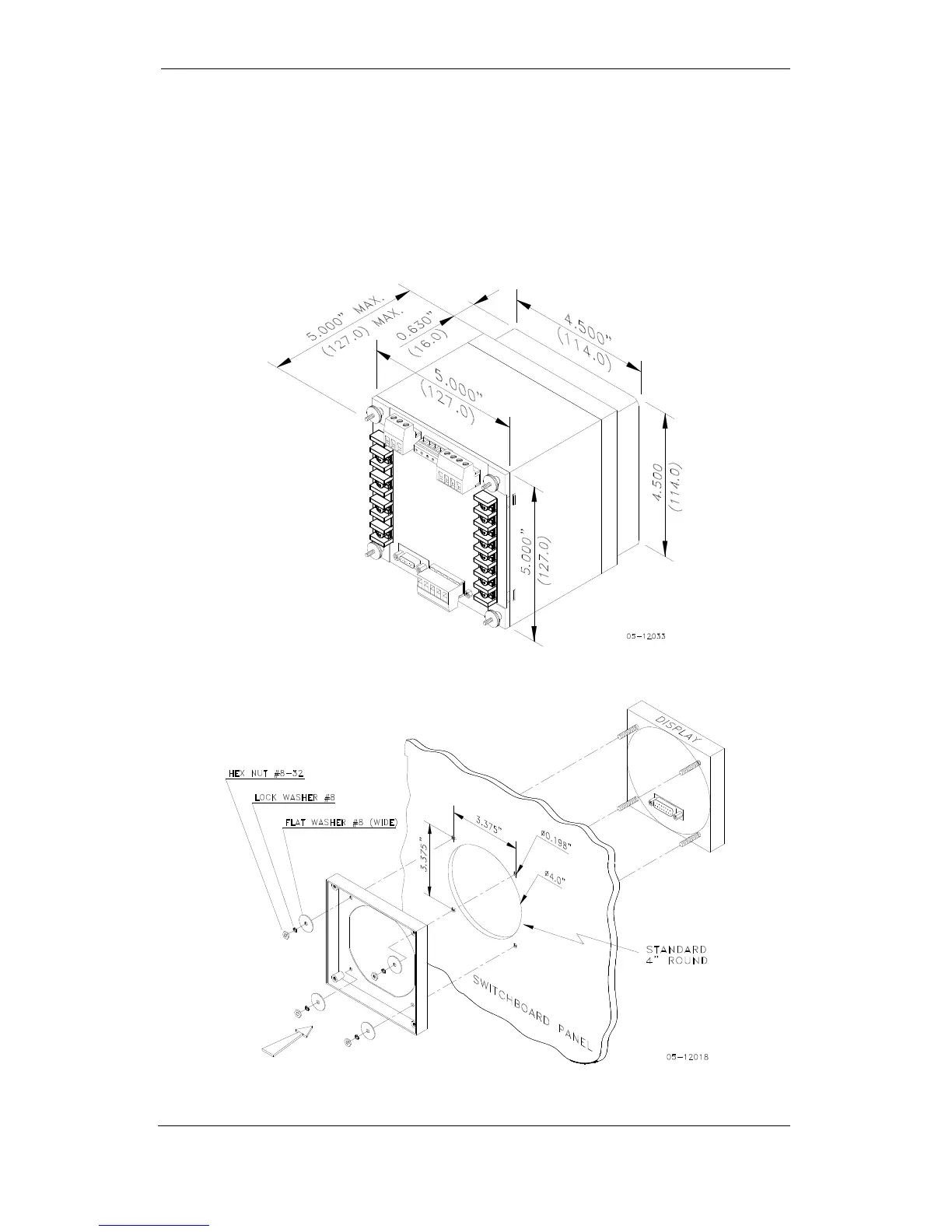

Figure 2-1 Dimensions
Figure
2-2 STEP 1 (ANSI 4" round cutout): Mount the display
module in cutout
9
11
