Chapter 2 Installation
Mechanical Installation
Series PM172 Powermeters
13
DIN Rail Mounting
The PM172 can be mounted on a 35-mm DI
N rail. The display module is
mounted separately on the
switchboard panel and is connected to the meter
by a communication cable (see “Remote Display Installation”).
BG0386-1
FRONT VIEW
SIDE VIEW

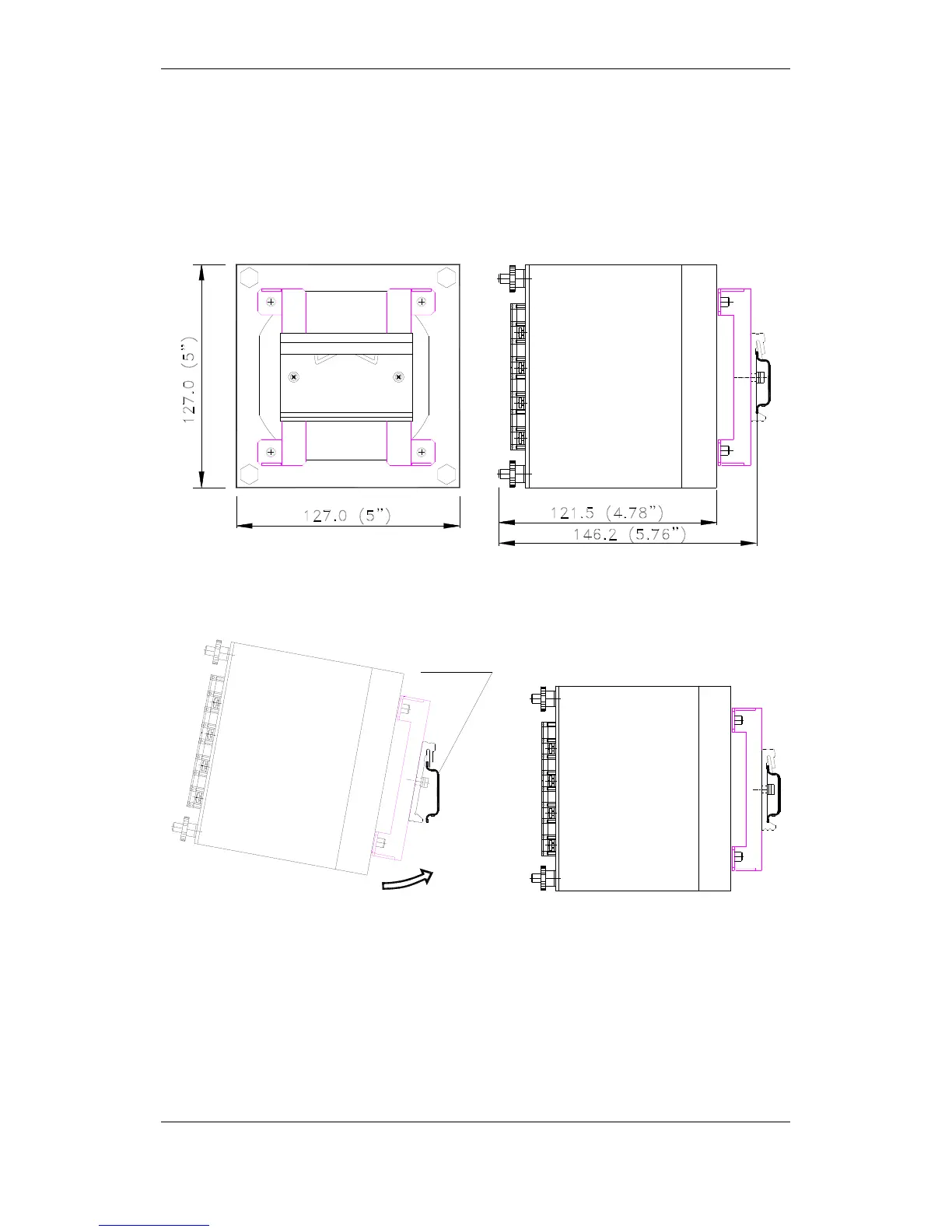

Figure 2-7 Dimensions
DIN RAIL
BG0386-2
Figure 2-8 DIN rail mounting
12
14
