Satec PM172E User Manual

Chapter 4 PAS Application Software Configuring Communication Protocols
94 Series PM172 Powermeters
Configuring DNP3
DNP Options can be changed both via DNP3 and Modbus. Refer to the
PM172 DNP3 Reference guide for information on the protocol
implementation and a list of the available data points.

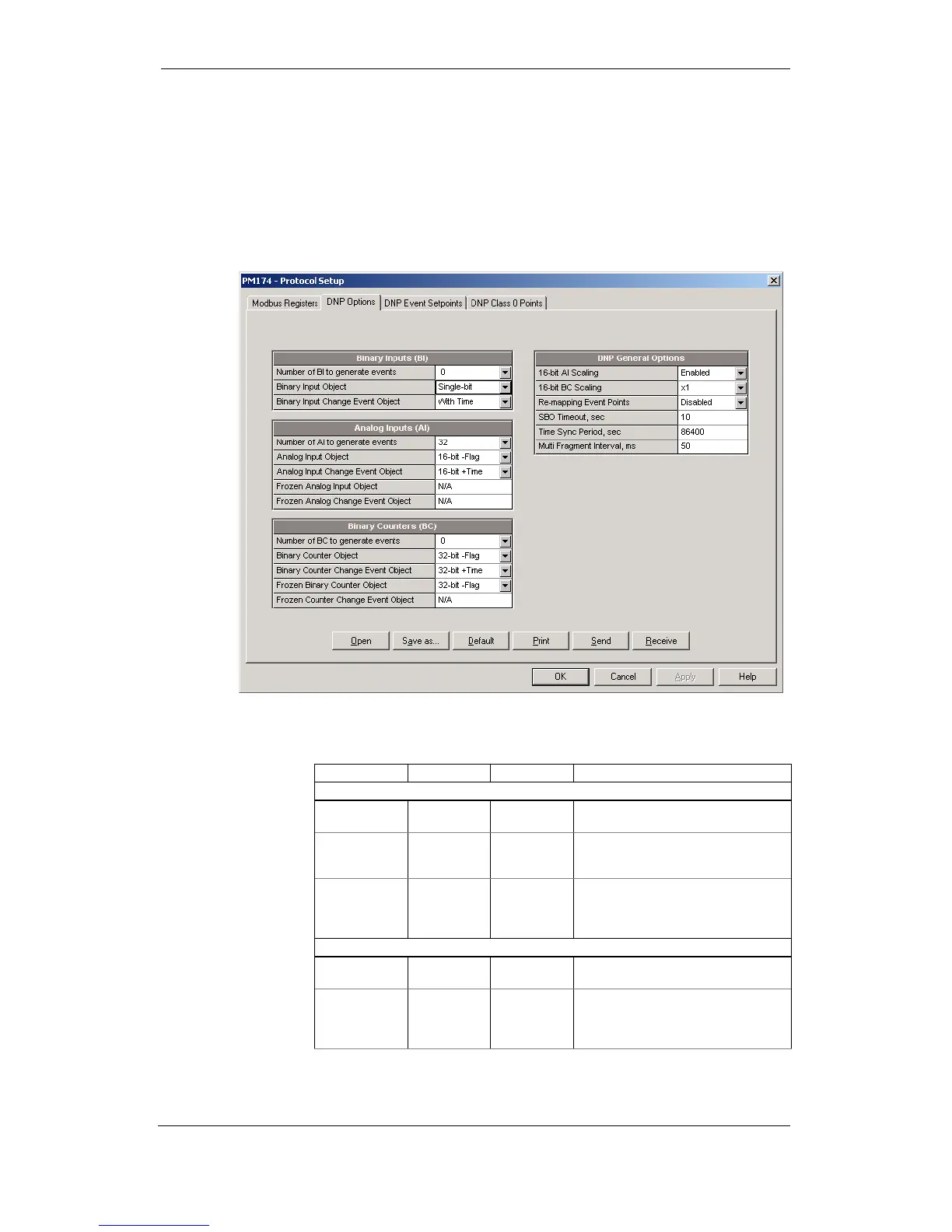

DNP Options
To view or change the factory-set DNP options, select Protocol Setup from
the Meter Setup menu and click on the DNP Options tab.
The following table describes available DNP options. Refer to the DNP3
Data Object Library document available from the DNP User’s Group on the
DNP3 object types.
Parameter Options Default Description
Binary Inputs (BI)
Number of BI to
Generate events
0-64
3
0 The total number of BI change event
points for monitoring
Binary Input
Object
Single-bit
With Status
Single-bit The default BI object variation for
requests with qualifier code 06 when no
specific variation is requested
Binary Input
Change Event
Object
Without Time
With Time
With Time The default BI change event object
variation for requests with qualifier code
06 when no specific variation is
requested
Analog Inputs (AI)
Number of AI to
Generate events
0-64
3
32 The total number of AI change event
points for monitoring
Analog Input
Object
32-bit
32-bit –Flag
16-bit
16-bit –Flag
16-bit -Flag The default AI object variation for
requests with qualifier code 06 when no
specific variation is requested
