Chapter 2 Installation
Electrical Installation
Series PM172 Powermeters
17
Electrical Installation
Before installation ensure that all incoming power sources are shut OFF
.
Failure to observe this practice can re
sult in serious or even fatal injury and
damage to equipment.
Typical Installation
COM.1
DIGITAL INPU
TS
COM.2
RELAYS
-
ANALO
G OUTPU
TS
ANALOG INPUTS
+
1
2
+
-
Figure

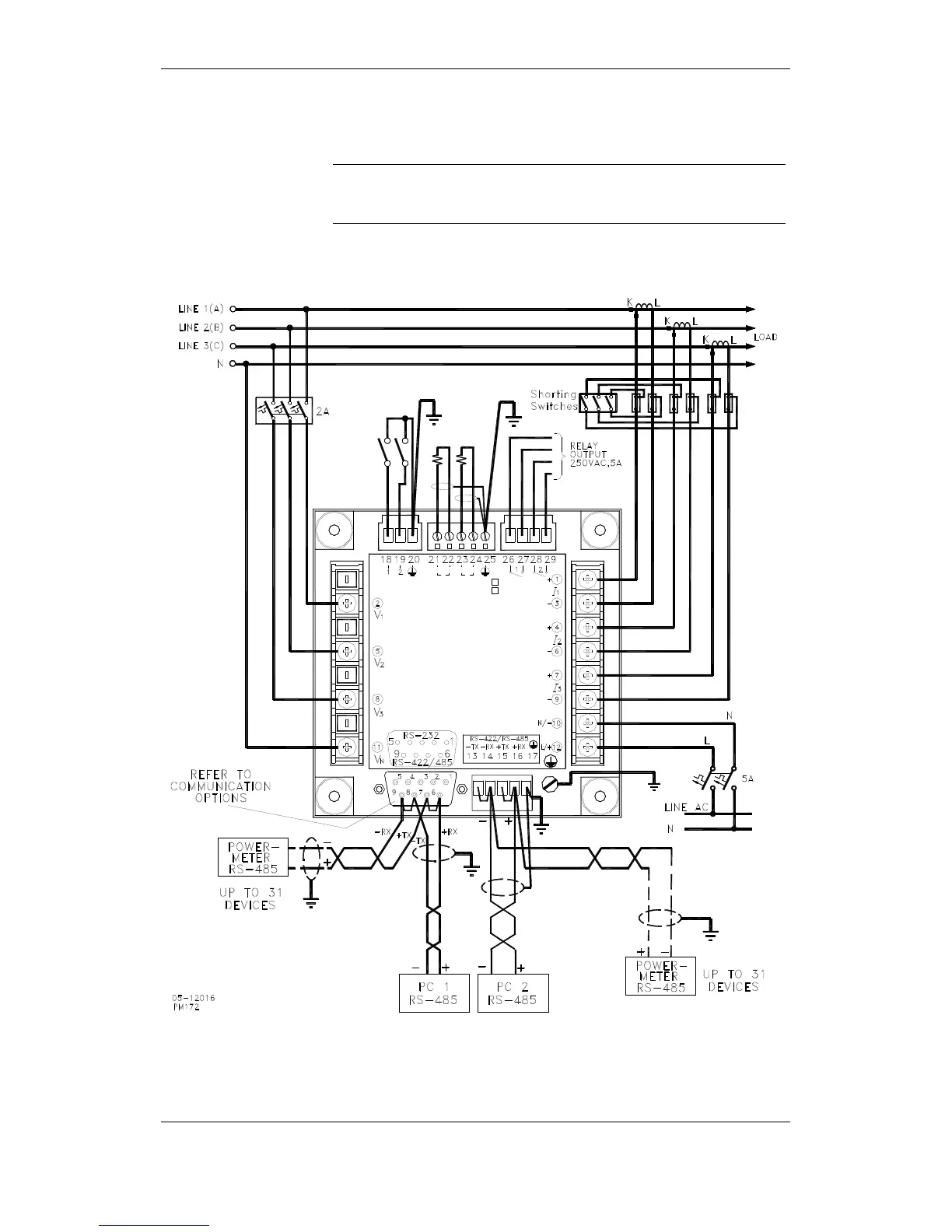

2-15 Typical Installation
16
18
