will be temporarily lost. You may need to wait some
additional time until PAS restores a connection with your
device.
Setting Up the Ethernet

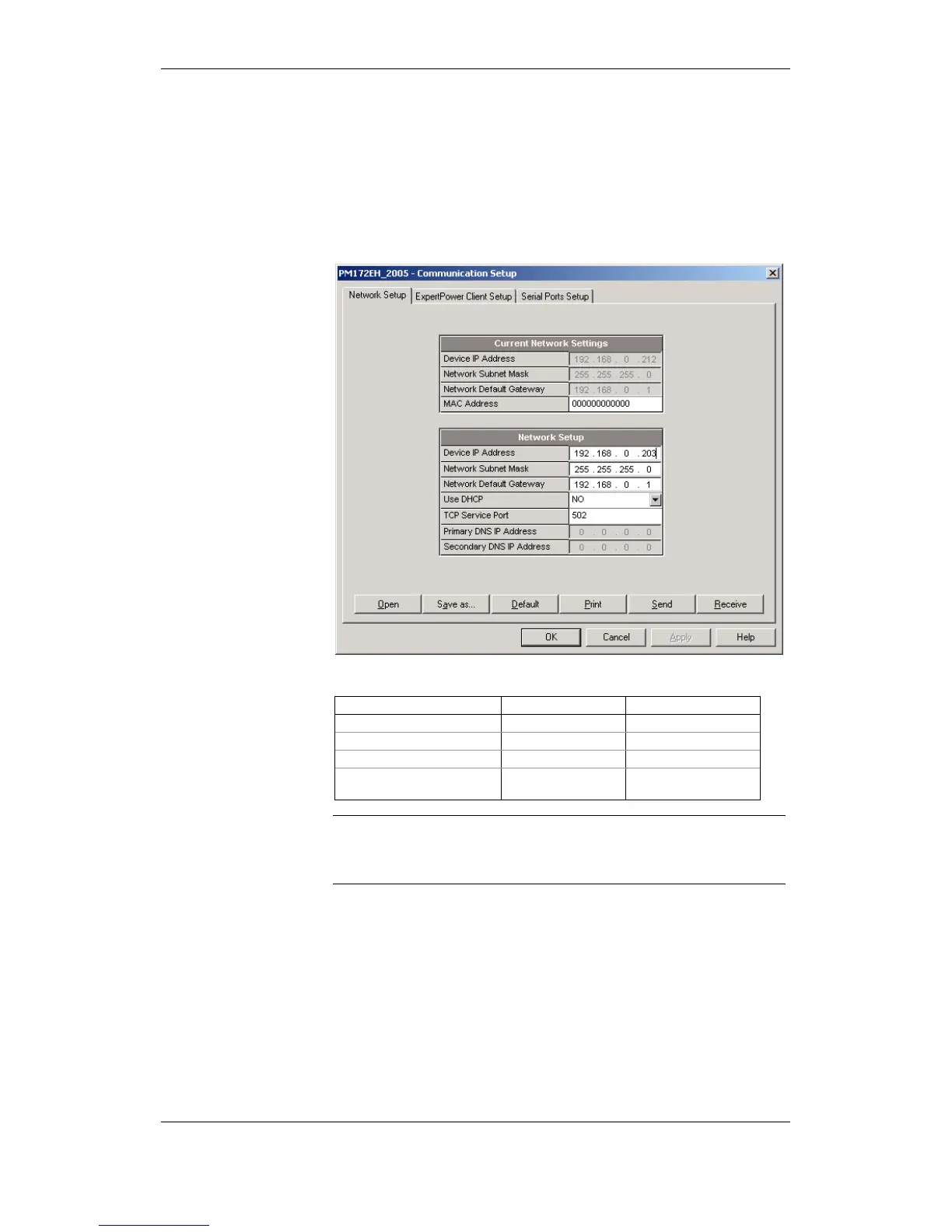

To enter the Setup dialog, select the device site from the list box on the PAS
toolbar, select Communications Setup from the Meter Setup menu, and then
click on the Network Setup tab.
The following table lists available network options.
Parameter Options Default
Device IP Address 192.168.0.203
Network Subnet Mask 255.255.255.0
Network Default Gateway 192.168.0.1
TCP Service Port 502 = Modbus/TCP
20000 = DNP3/TCP
502
Ì
The TCP service port can also be changed trough the COM1 serial port setup:
changing the protocol for the port automatically changes the TCP port for the
Ethernet.
To change the Ethernet settings in your meter, select desired parameters,
and then click Send.
NOTES
1. The meter provides the permanent Modbus TCP server
on port 502. Selecting the DNP3 TCP service port
launches the DNP3 TCP server in addition to the Modbus
server allowing simultaneous connections on both ports.
Selecting the Modbus TCP port disables the DNP3 TCP
server.
2. When you change the device network settings through the
Ethernet port, the device port restarts so communication
will be temporarily lost. You may need to wait some
