Chapter 2 Installation Mechanical Installation
12 Series PM172 Powermeters

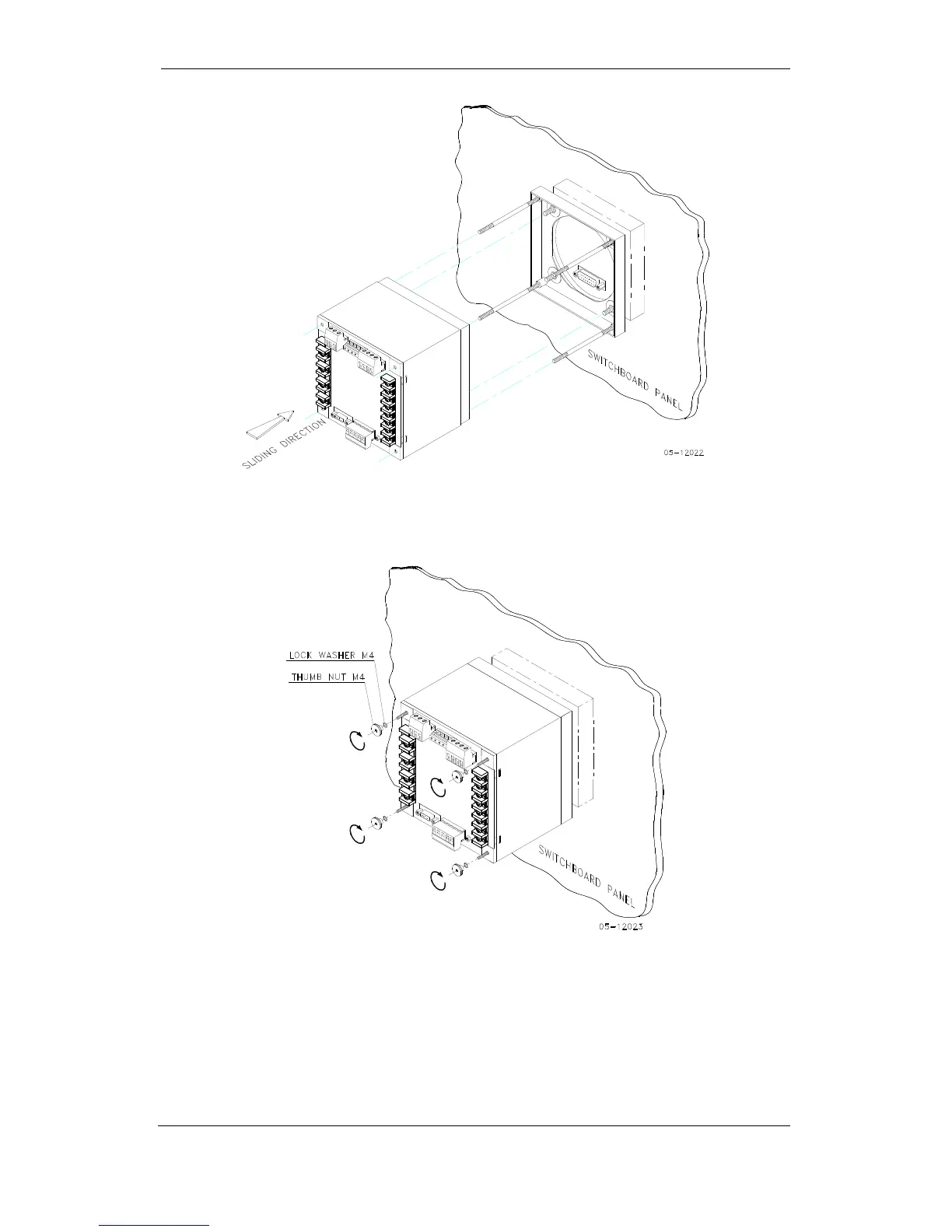

Figure 2-5 STEP 3: Slide and position the meter on locating studs
Figure 2-6 STEP 4: Affix the meter using the thumb nuts
