Chapter 2 Installation
Electrical Installation
22
Series PM172 Powermeters

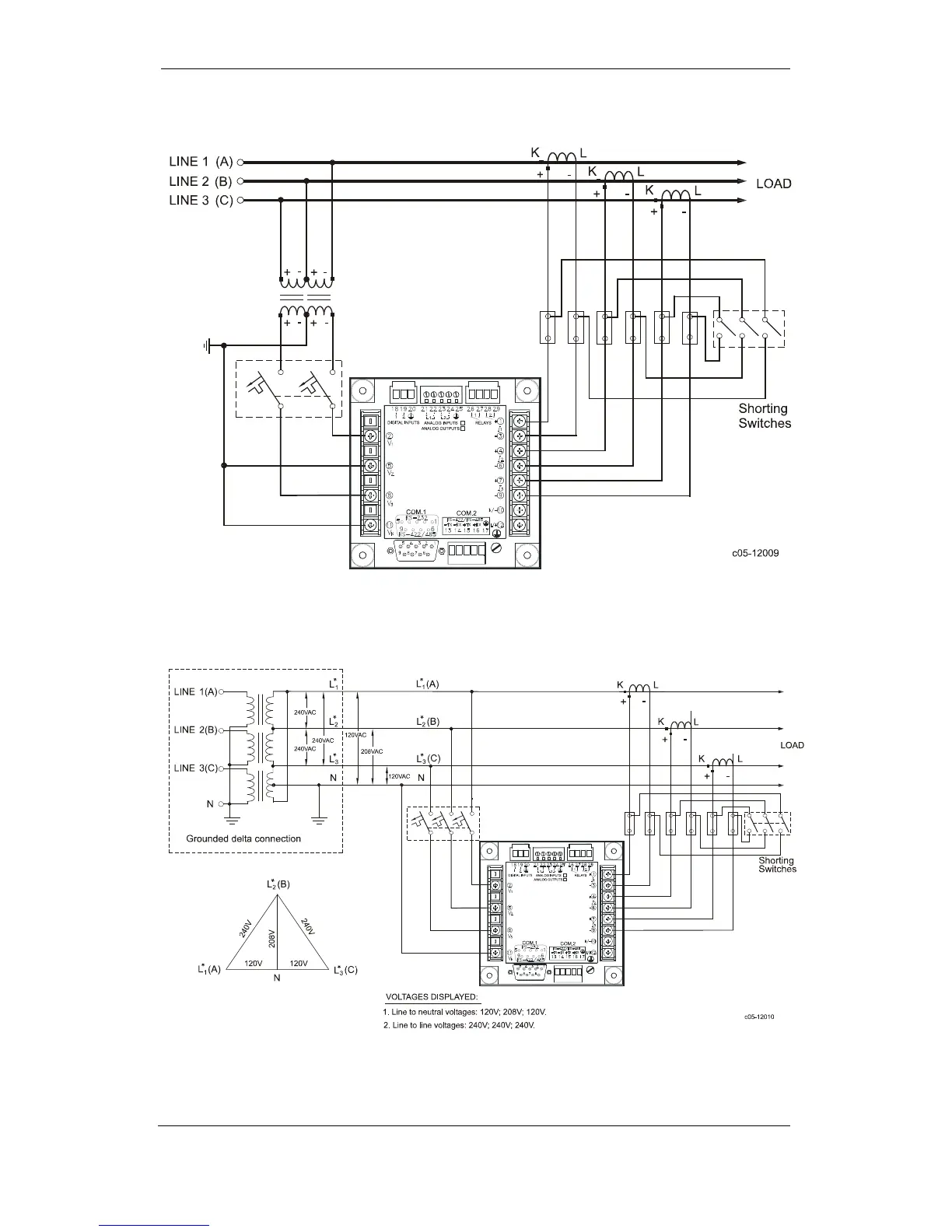

Figure 2-22 3-Wire Open 2½-Elemen
t Delta Connection Using 2 PTs, 3 CTs.
Wiring Mode = 3OP3
Figure 2-23 4-Wire 3-Element Delta
Direct Co
nnection Using 3 CTs.
Wiring Mode = 4LL3 or 4Ln3
21
23
Table of Contents
Chapter 1 General Information
6
Default Chapter
2
Limited Warranty
2
Table of Contents
3
Chapter 2 Installation
10
Mechanical Installation
10
Panel Mounting
10
DIN Rail Mounting
13
Remote Display Installation
14
Mechanical Installation
14
Electrical Connection
15
Electrical Installation
17
Typical Installation
17
Terminals
18
Power Source Connection
18
Chassis Ground Connection
19
Wiring Diagrams
19
I/O Connections
24
Relay Outputs
24
Digital Inputs
24
Analog Outputs
25
Analog Inputs
25
Communications Connections
26
COM1 RS-232 Connection
26
COM1 RS-422/485 Connection
27
COM1 Dial up Modem Connection
28
COM1 Ethernet Connection
28
COM1 Profibus Connection
29
COM2 RS-422/485 Connection
30
Chapter 3 Display Operations
32
Indicators and Controls
32
Display Diagnostics
32
Numeric LED Display
32
Load Bar Graph
33
Energy Pulse LED
33
Port Activity Leds
33
Navigation Buttons
33
Data Display
33
Display Features
33
Navigation Buttons
34
Simple Reset of Accumulated Data
35
Common Measurements Display
35
Min/Max and Max. Demands Display
36
Harmonics Display
37
Energy Display
38
Status Display
39
Using the Menus
40
Navigation Buttons
40
Selecting Menus
40
Entering the Password
41
Selecting a Menu Entry
41
Viewing and Changing Setup Items
41
Menu Operations
42
Basic Device Settings
42
Device Options
43
Transformer Correction
44
Communication Ports
45
Network Address
46
Counters Setup
47
Relay Output Setup
47
Control Setpoints Setup
48
Analog Inputs Setup
49
Analog Outputs Setup
50
Analog Expander Setup
51
Timers Setup
52
Display Setup
52
Meter Security
53
Setting the Device Clock
54
Resetting Accumulators and Maximum Demands
55
Chapter 4 PAS Application Software
56
Configuration Database
56
Setting up Communications
56
Communicating through a Serial Port
57
Communicating through a Dial-Up Modem
58
Communicating through the Internet
58
Setting up the Meter
59
Downloading Setup to the Meter
59
Uploading Setup from the Meter
59
Authorization
59
Configuring Communications in Your Meter
60
Setting up Communication Ports
60
Setting up the Ethernet
61
Configuring GE EGD Production Exchanges
62
General Meter Setup
64
Basic Meter Setup
64
Device Options
65
Transformer Correction
67
Local Settings
68
Using Digital Inputs
69
Using Relay Outputs
70
Programming Analog Inputs
72
Programming Analog Outputs
73
Programming the Analog Expander
75
Using Counters
76
Using Periodic Timers
77
Using Control Setpoints
77
Configuring Summary Energy and TOU Registers
82
Setting up Total and Tariff Registers
82
Configuring the Daily Tariff Schedule
83
Configuring the Season Tariff Schedule
84
Configuring Recorders
86
Configuring Device Memory
86
Configuring the Event Recorder
87
Configuring the Data Recorder
88
Configuring the Waveform Recorder
90
Configuring Communication Protocols
93
Configuring Modbus
93
Configuring DNP3
94
Remote Device Control
99
Remote Relay Control
99
Event Flags
99
Device Diagnostics
100
Updating the Clock
101
Resetting Accumulators and Clearing Log Files
101
Administration
102
Changing a Password
102
Upgrading Device Firmware
102
Monitoring Devices
105
Viewing Real-Time Data
105
Viewing Min/Max Log
105
Viewing Real-Time Waveforms
105
Viewing Harmonic Spectrum and Synthesized Waveforms
106
Viewing Recorded Files
106
Retrieving Logs Files
106
Viewing Options
106
Viewing the Device Event Log
107
Viewing the Data Log
108
Viewing Waveforms
108
Viewing Synchronized Waveforms
113
COMTRADE and PQDIF Converters
115
Manual Converting
115
Automatic Converting
116
Appendix A Technical Specifications
117
Environmental Conditions
117
Power Supply
117
Standards Compliance
120
Appendix B Analog Output Parameters
122
Appendix C Setpoint Triggers and Actions
123
Appendix D Parameters for Data Log and Monitoring
126
Appendix E Data Scales
134
Appendix F Device Diagnostic Codes
135
