5 • ADJUSTMENTS AND TESTING

Focus

Edition 1 • January 1996 Service Manual • ScanMate 4000/5000

5•3c

Fig. 1

Fig. 2

Fig. 3

Focus motor adjust-

ment tool

Optics holder

Screws B

Focus

motor

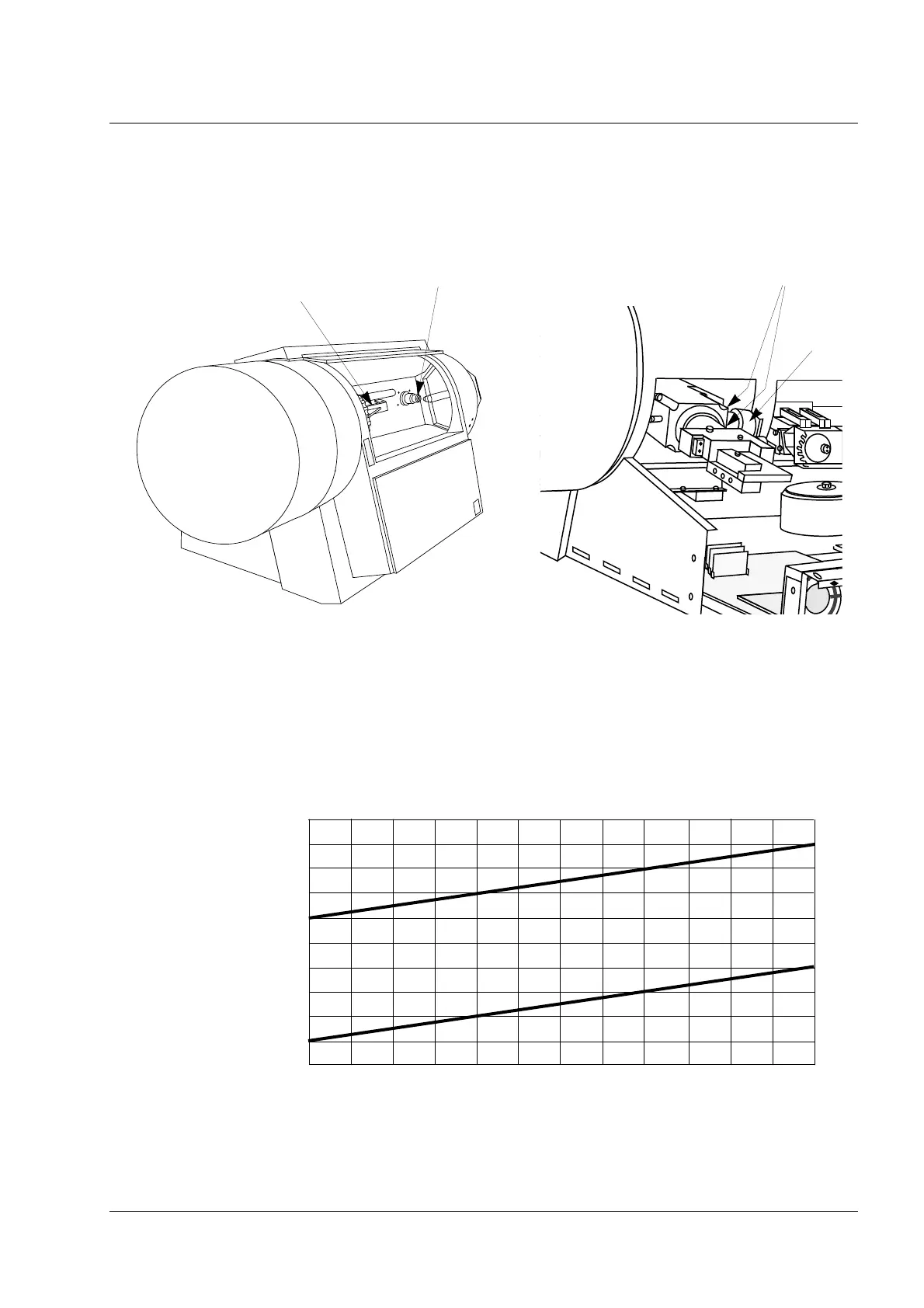

Adjustment of sensor unit for ScanMate 4000 and 5000

Drum diameter in millimeters

Focus units

3000

2800

2600

2400

2200

2000

1800

1600

1400

1200

99.6

99.5 99.4 99.3

99.2

99.1

99.0

ScanMate 5000 shown

(the SM 4000 is identical)
