4 • PART REPLACEMENT
Driver Board
Edition 1 • January 1996 Service Manual • ScanMate 4000/5000
4•10c
Connector J2
to control
board
Connector J3
to control
board
Connector J1
to backplane
Posidrive
screws A
J8
to cooling fans
(red/black leads to
a 2 pin connector)
Connector J4
to transformer

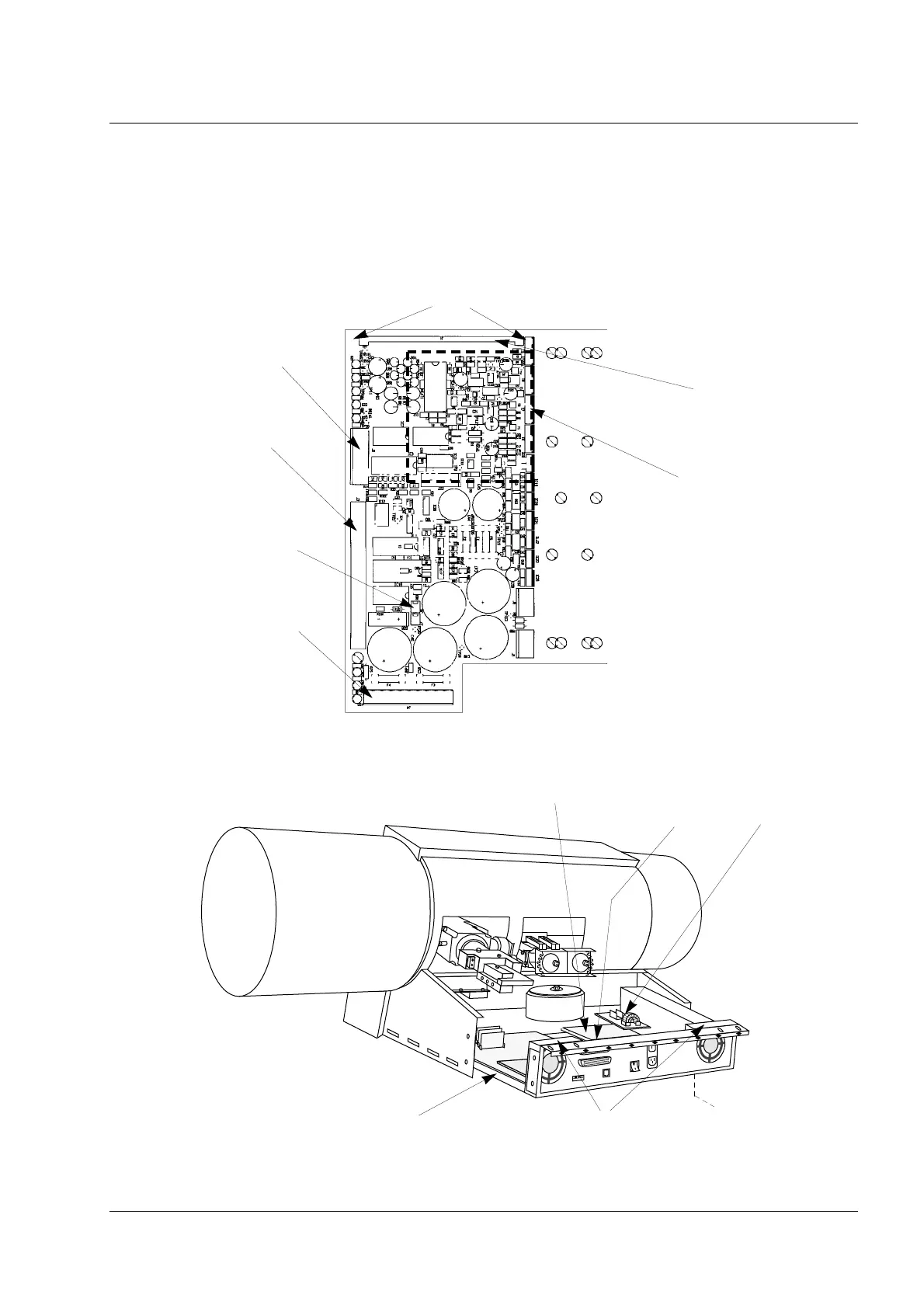

Enlarged drawing of
driver board in section
7•7
Driver board
Booster print board
(Dotted outline)
Booster print
board
2.5 mm posi-
drive screws B
(x8)
Hardware
unit
Only on ScanMate
5000 (0210 model)
Bar code
board
Cooling fans
