Schaerer Junior User Manual

Product Description
Page 3-6 BAJR_USA_EN_V03
3.1.6 Purpose of coffee machine
The coffee machine can be configured to serve the following beverages:
- coffee
- espresso
- ristretto (short espresso)
- coffee pot
- decaffeinated coffee (Decaf)
- hot water for tea, etc.
- steam for heating of milk for hot chocolate, etc.

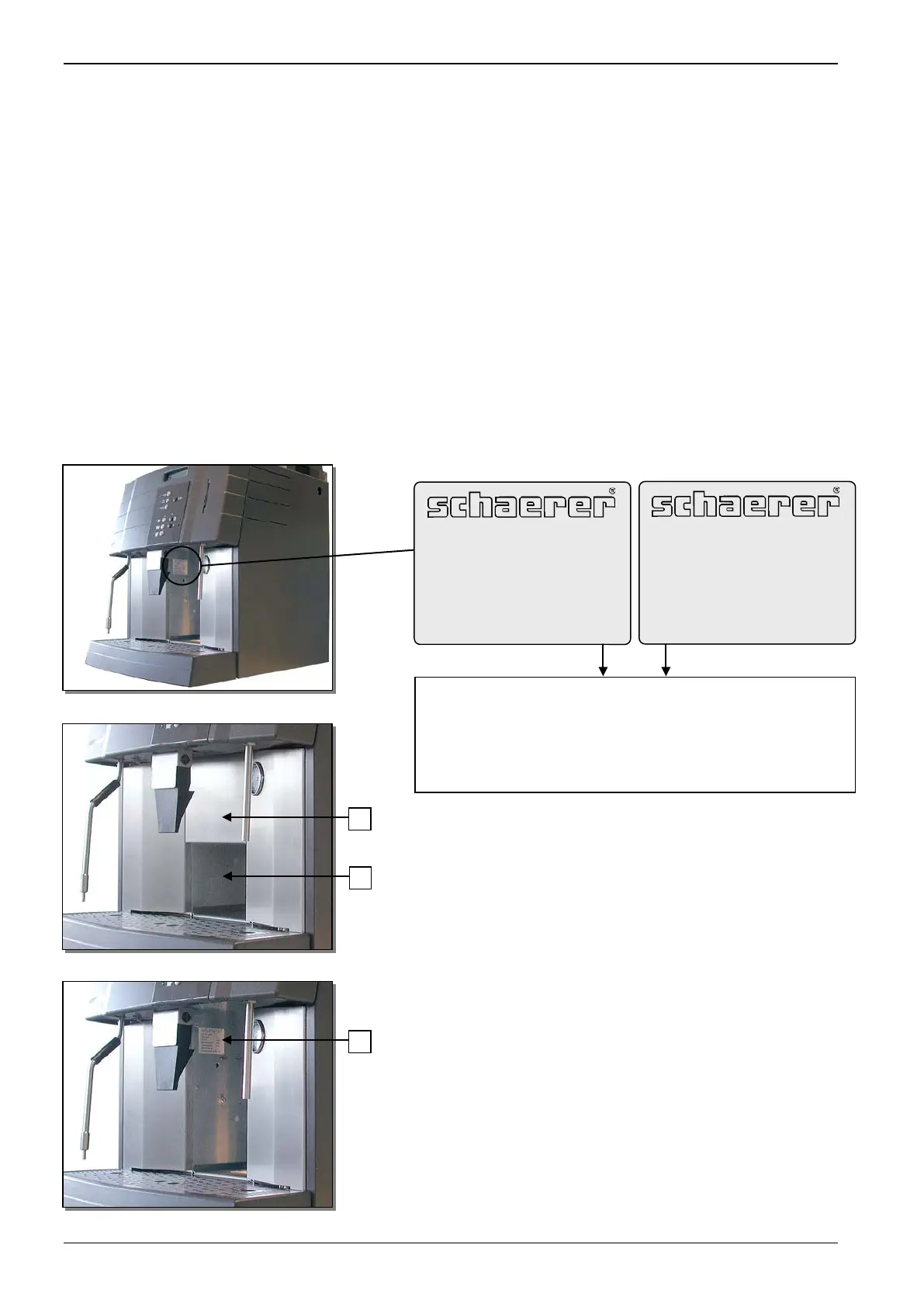

3.1.7 Serial plate
The serial plate (fig. 3.10 A) contains machine-specific data. The serial plate is
mounted inside of the machine and is accessible by removing the coffee grounds con-
tainer (b) and the cover plate (c) (fig. 3.7 A).
1. Pull the grounds container (a) out of the coffee
machine (fig. 3.8 A).
2. Lift the cover plate (b) slightly and pull forward
(fig. 3.8 A).
3. Note down all data on the serial plate (c) (fig.
3.9 A).
4. Re-attach the cover plate (b) to the coffee ma-
chine by pushing it lightly backwards and pulling
downwards. The cover plate (b) should now be
flush with the front and should not be able to
move forward.
5. Insert the coffee grounds container (a) back into
the coffee machine.
020'025.001
Pos. 3.8 A
a
b
020'026.001
Pos. 3.9 A
c
Pos. 3.7 A
020'026.002
Serial plate Pos. 3.10 A
Inst. No. ................................
Type JUNIOR ................................
Serial No. ................................
Date of Production ................................
Nominal pressure ................................ bar
Electrical Ratings .............V ................. Hz ............ A
Inst. No. 3.6.9150
Type JUNIOR 15 SOJR
Serial No. 000000
Date of Production Feb.-XX
Electrical Ratings
230 / 50-60Hz / 4.2kW
Display example - Europe
Display example - USA
Inst. No. 3.6.9150
Type JUNIOR 15 SOJR
Serial No. 000000
Date of Production Feb -XX
Nominal pressure 12 bar
Electrical Ratings
210/220/230/240V: 50-60Hz: 17A
