Schaerer Junior User Manual

Appendix
BAJR_USA_EN_V03 Page 7-3

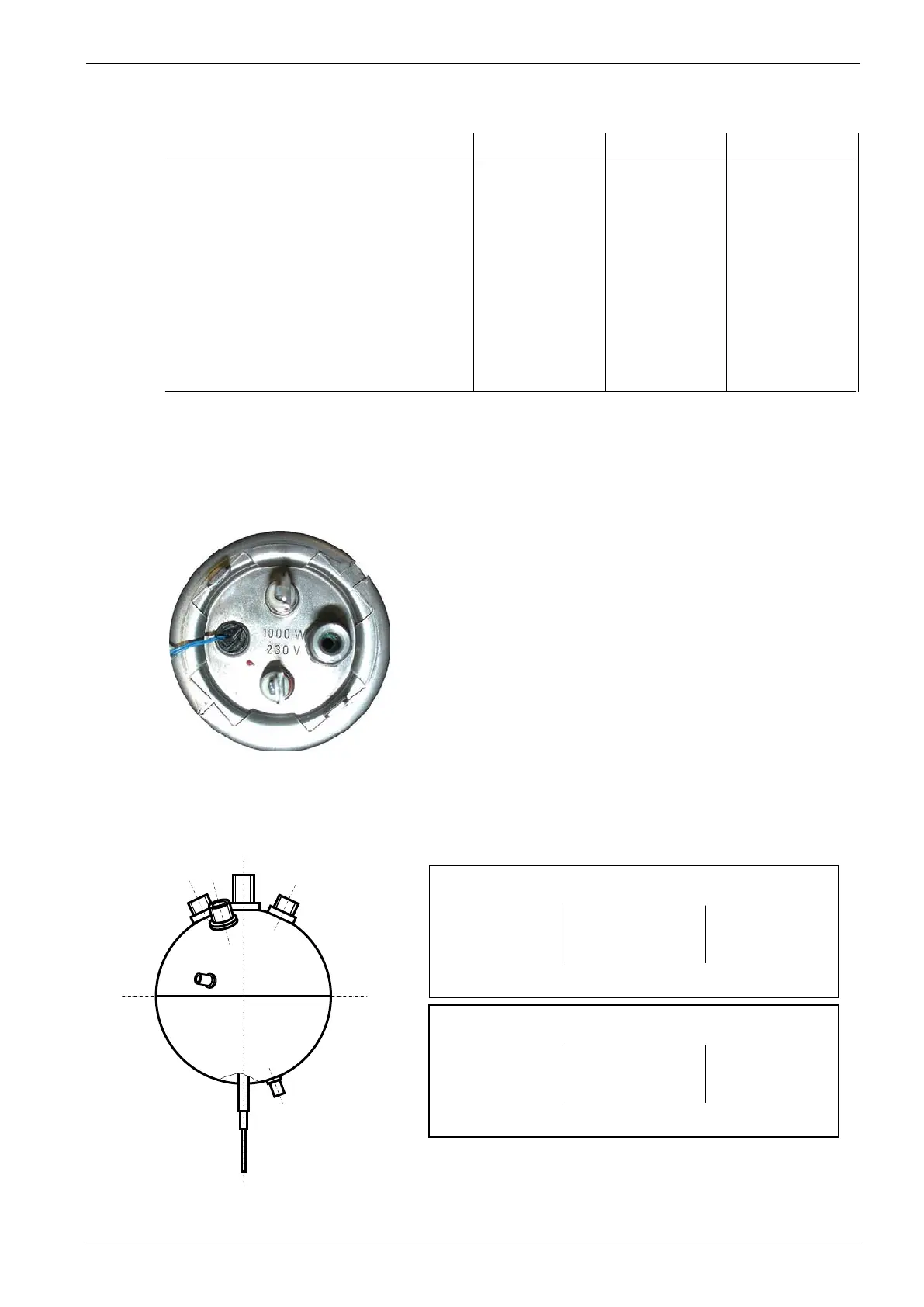

7.2 Serial plate of steam generator and instant heater
Specifications for... 7.3.1 7.3.2 7.3.3
Manufacturer's sign HW HW DA
Operating overpressure ......... .......... 8 bar .... ....... 2,5 bar . ...... 2,5 bar
Admissible operating overpressure p max ........ 14 bar .... ........ 12 bar . ....... 12 bar
Test overpressure ......... ........ 14 bar .... ........ 20 bar . ....... 20 bar
Admissible operating overpressure T max ...... 192 °C ..... ...... 192 °C .. ..... 192 °C
Minimum operating overpressure T min 10.... °C ......... 10 .... °C ...... 10 ... °C
Operating temperature
1
Water content Vol. ... ..... 0,35 l ........ ....... 0,8 l ..... ...... 0,8 l
) ...... ........ 95 °C ..... ........ 95 °C .. ..... 125 °C
Voltage U ...... ...... 230 VAC .. ...... 230 VAC ..... 230 VAC
Power consumption P....... .... 1000 W ..... .... 3000 W ... ... 3000 W
Year of manufacture ................................... 20........... ......... 20 .................. 20 ......................
Serial no. ..................................................... HW .................. HW ............... DA .....................
1
) temperature adjustable
7.2.1 Instant heater (Type - KKM - HW 062'300)
The pressure container must be replaced after 36 months
at the latest!
7.2.2 Instant heater (Type SO - HW 061'672) (EU)
Nach maximal 60 Monaten muss der Druckbehälter
ersetzt werden!
Pos. 6.1 A
Pos. 6.2 A
Schaerer AG, CH-4528 Zuchwil
Typ : SO F-Nr. : HW....... Baujahr : 20….
pmax : 12 bar Tmax : 192ºC Vol. : 0.8 l
U : 230 VAC Tmin : 10ºC P : 3000 W
f : 50/60 Hz
Ausführung und Prüfung nach SVTI und TÜV Vorschriften
Schaerer AG, CH-4528 Zuchwil
Typ : SO F-Nr. : HW....... Constr. yr.: 20….
pmax : 12 bar Tmax : 192ºC Vol. : 0.8 l
U : 230 VAC Tmin : 10ºC P : 3000 W
f : 50/60 Hz
Design and control according to SVTI and TÜV regulations
