Safety and Functional Tester GLP2-i/e
During the test, test object and test leads must not be touched!
The safety measures required by law must be adhered to!
Schleich GmbH * D-58675 Hemer * 0049 / (0)2372 / 9498-0 * 0049 / (0)2372 / 9498-99 *
http://www.schleich.com * info@schleich.com 10

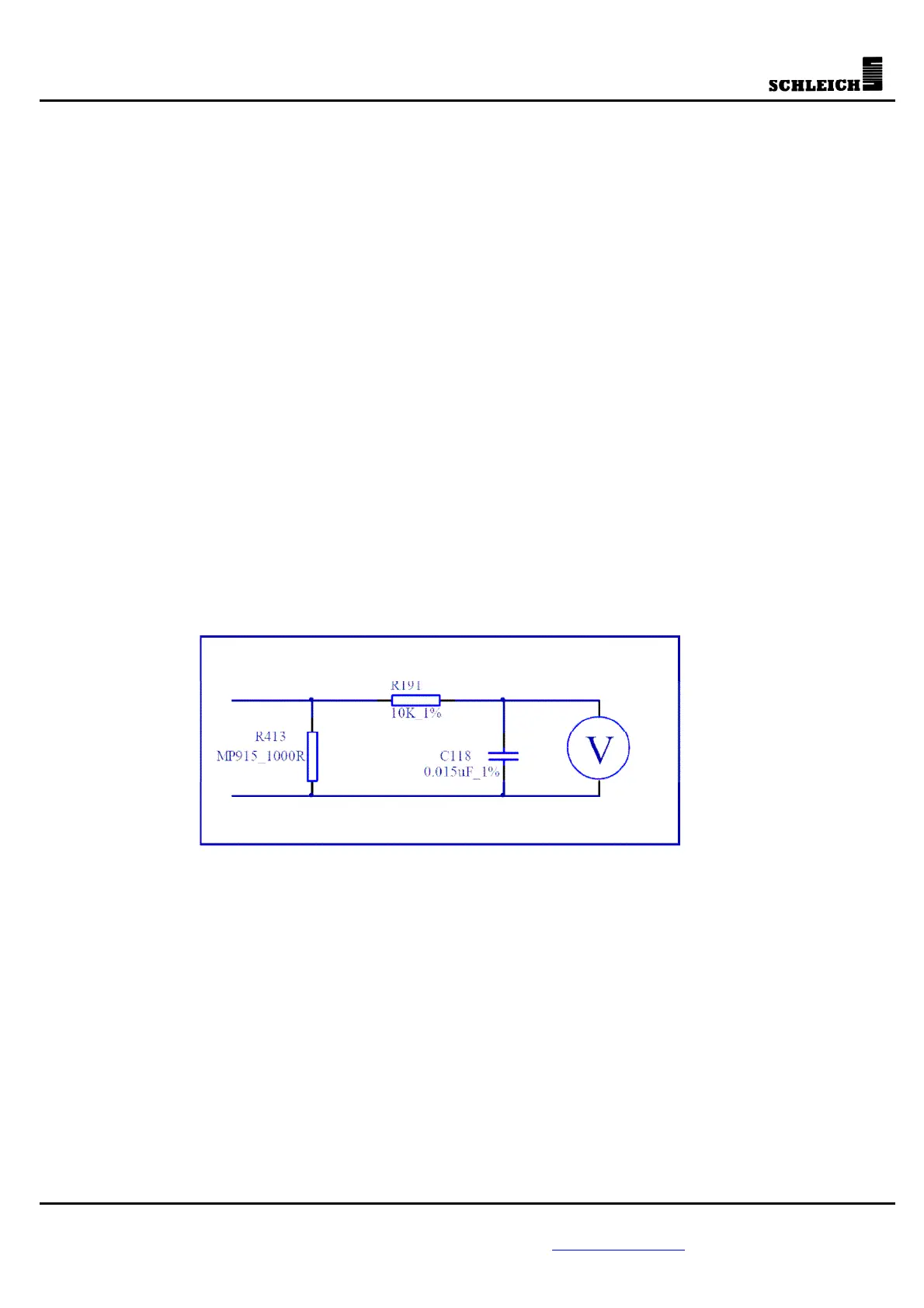

1.2.6 Leakage current test at medical devices (corresponds to figure 16 of EN60601)
Leakage current: max. 30mA
Resolution: 0.01mA ... 100nA (depending on measuring value)
Accuracy: 0.1% of measuring range
Touch-current frequency: max. 500Hz
Test points: 8 (as patient connections or enclosure parts)
Test probe connections: 2
FE point: 1 (ground)
Max. test current at the connections for the current supply: like function test (however max. 16A)
TESTING STANDARDS
EN60601-1 / VDE 0750-1 Measuring at medical devices
With this article number, it is possible to test the following figures of the standard:
figure 16, figure 20, figure 23, figure 26, figure 27
For automatic testing according to the following figures (S10, S7 or MD2), it is necessary to order 2
measuring point extensions (article number 4000271): figure 17, figure 19
For automatic testing according to the following figures (interruption of the current supply with S2 and S3),
the option: cut-off relay (article number 4000323 ) needs to be ordered additionally: figure 17, figure 19
For automatic testing according to the following figures (S9 and additional test voltage), the 2nd test
voltage (article number 4000324) needs to be ordered additionally: figure 18, figure 19, figure 21, figure
22, figure 24, figure 25
Please note that the 2nd voltage source can only be connected to the 1st measuring point.
It is not possible to connect the source automatically in the form of a matrix to further points.
